Home >> Saab >> 2001 >> 9-5 SE (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Dimensional >> Engine Block

Engine Block


Cylinder Block
Classification Codes

Component Illustration:

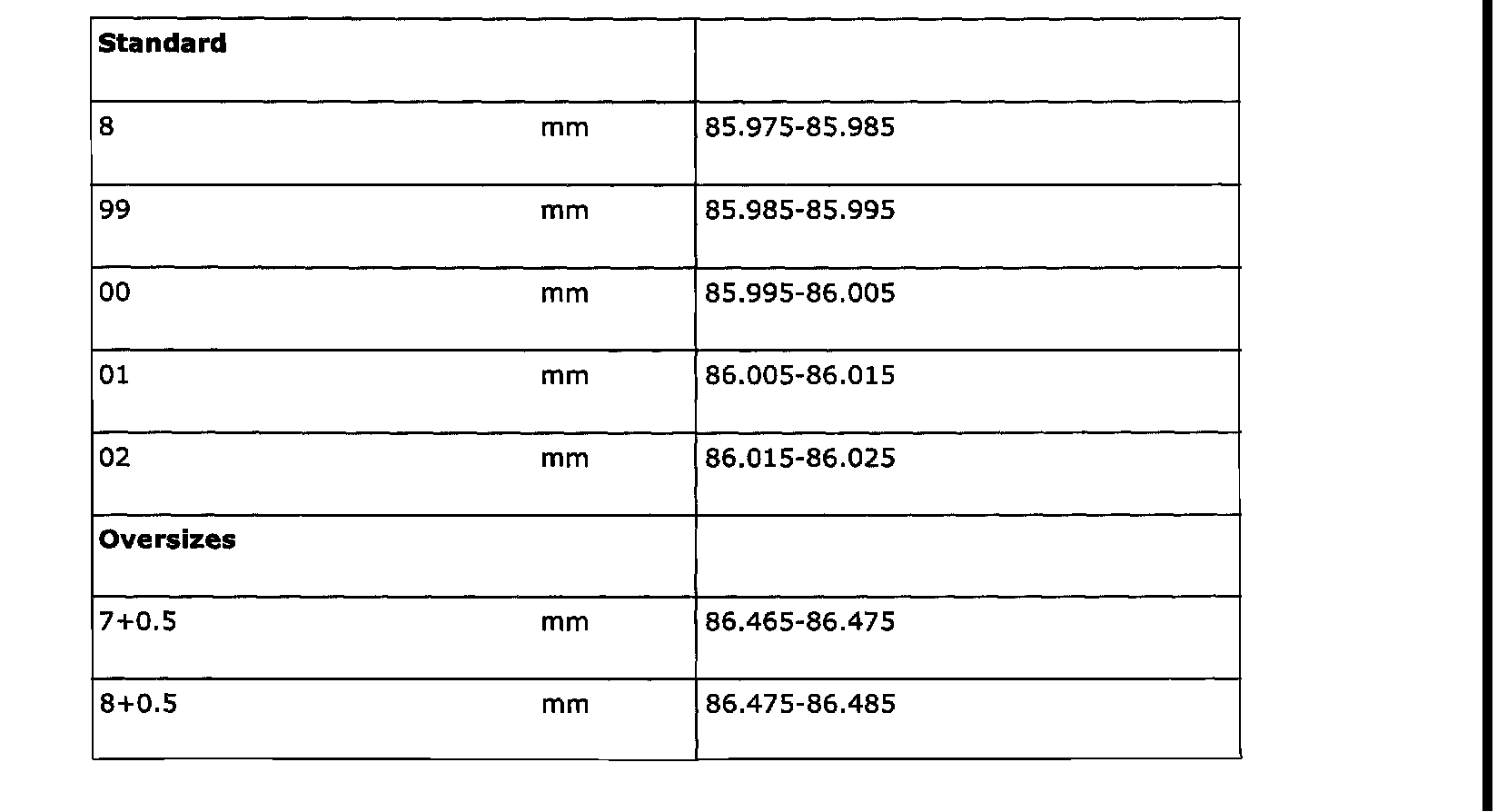

Specifications Table (Part 1 Of 2):

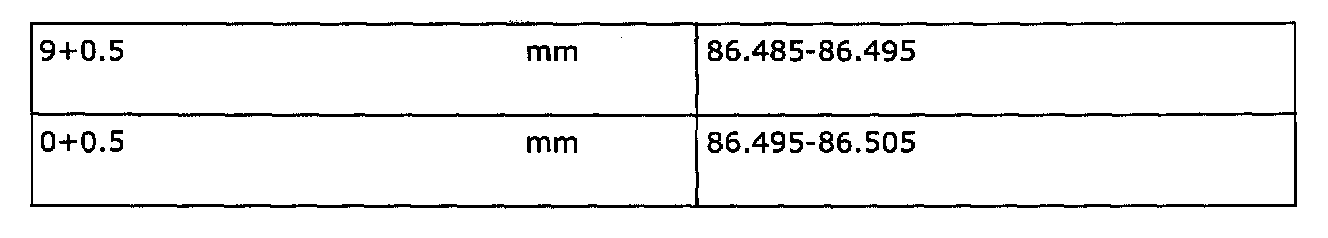

Specifications Table (Part 2 Of 2):
