Technical Specification

AF 30 4-spd A/T Technical Data:

AF 30 4-spd A/T, Second Group Cont.:

AF 30 4-spd A/T, Third Group:

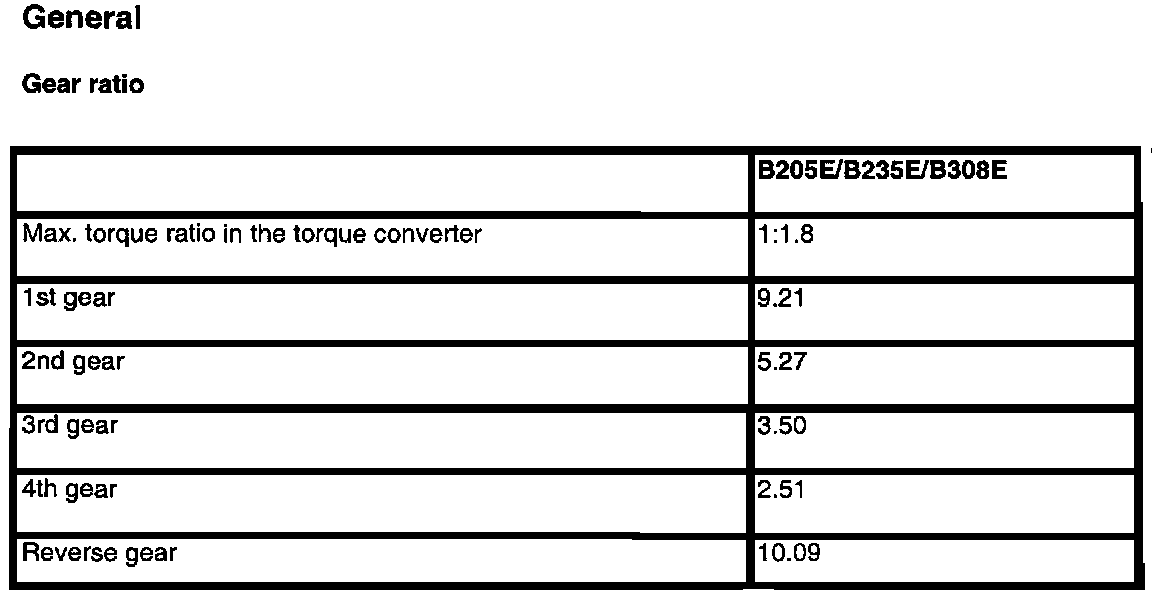

AF 30 4-spd A/T Gear Ratio:

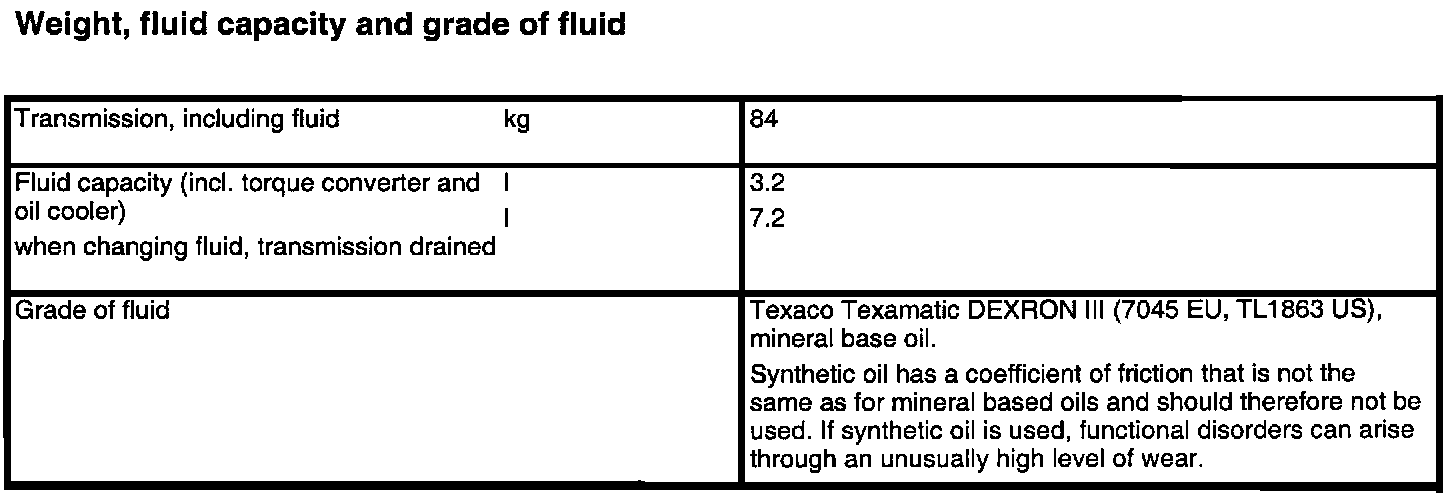

AF 30 4-spd A/T Fluid Capacity:

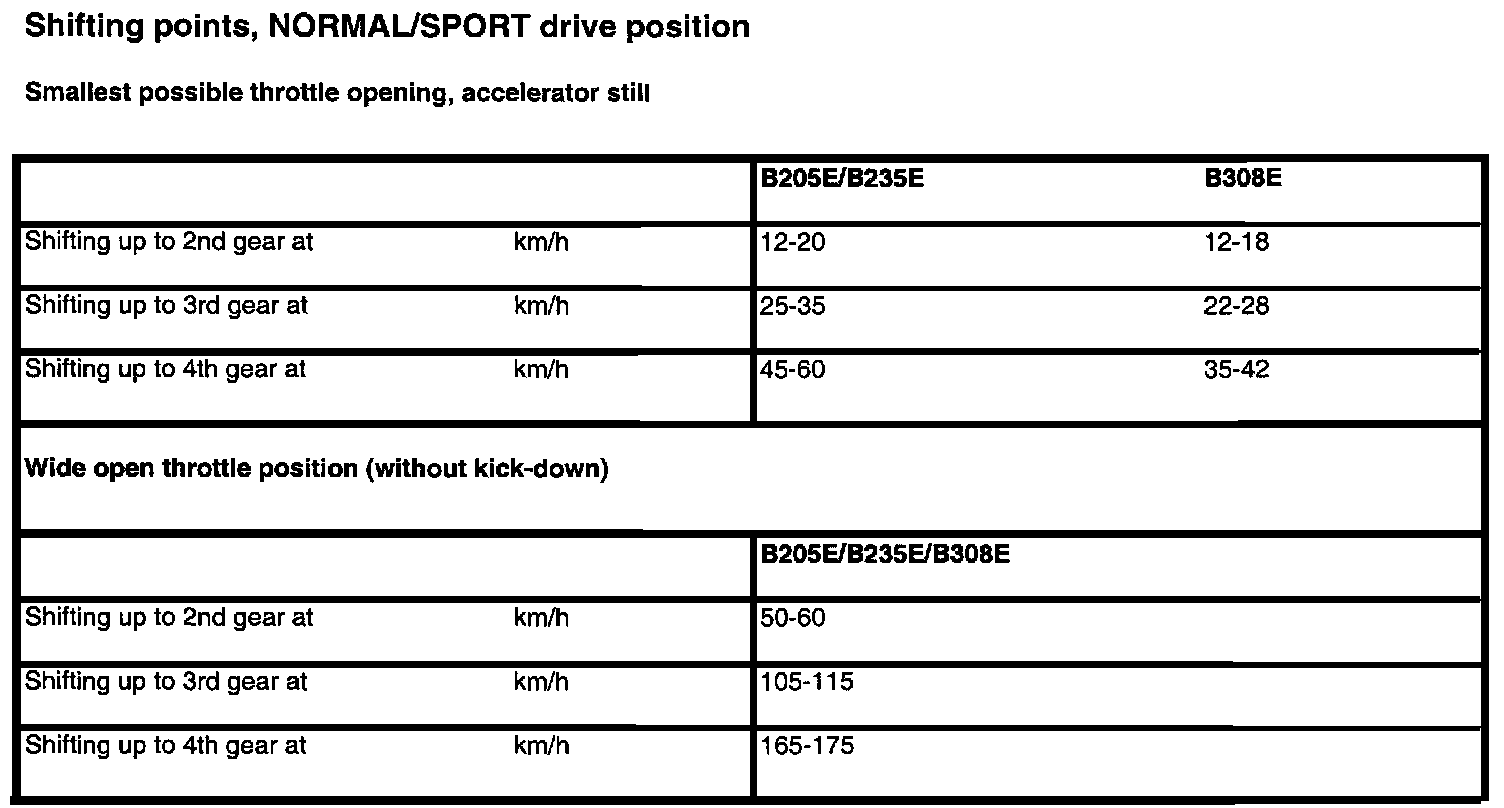

AF 30 4-spd A/T Shifting Points:

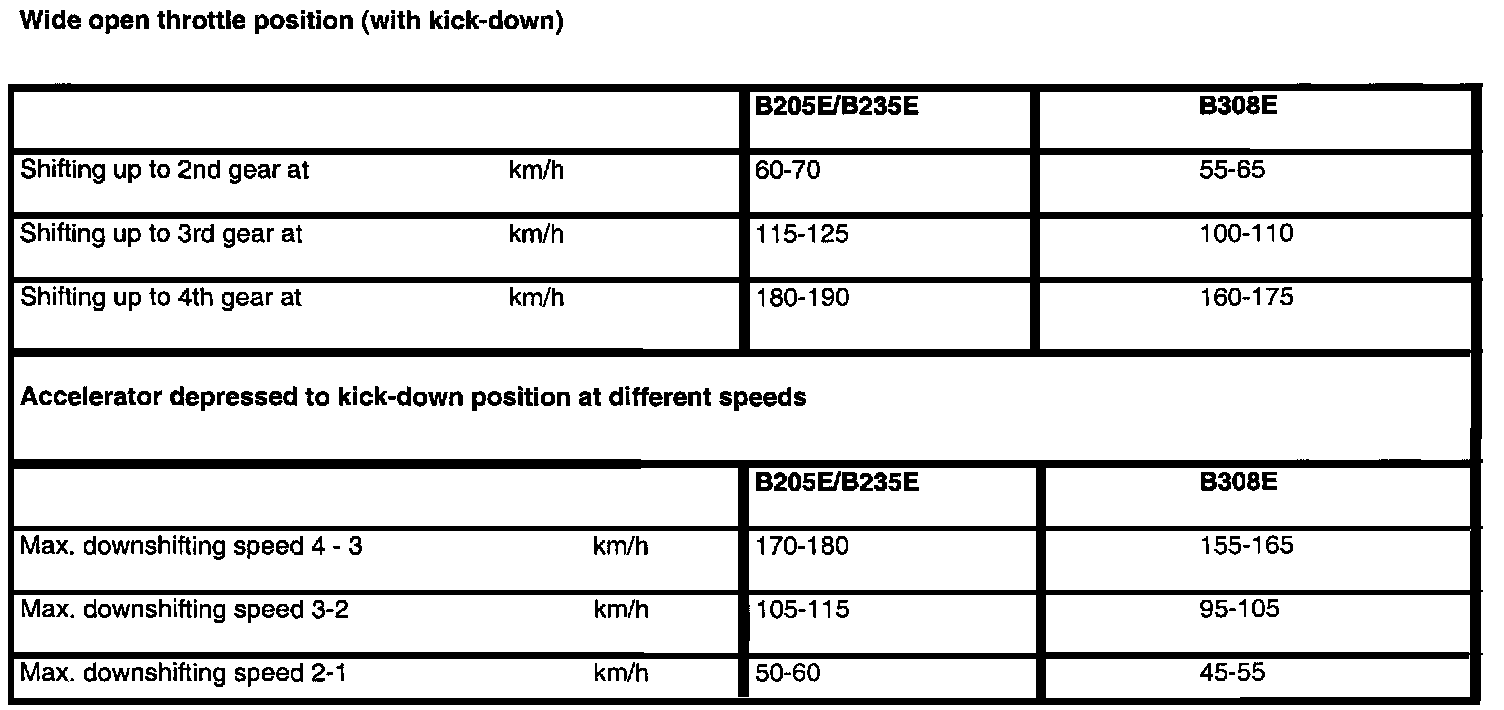

AF 30 4-spd A/T Shifting Points Cont.:

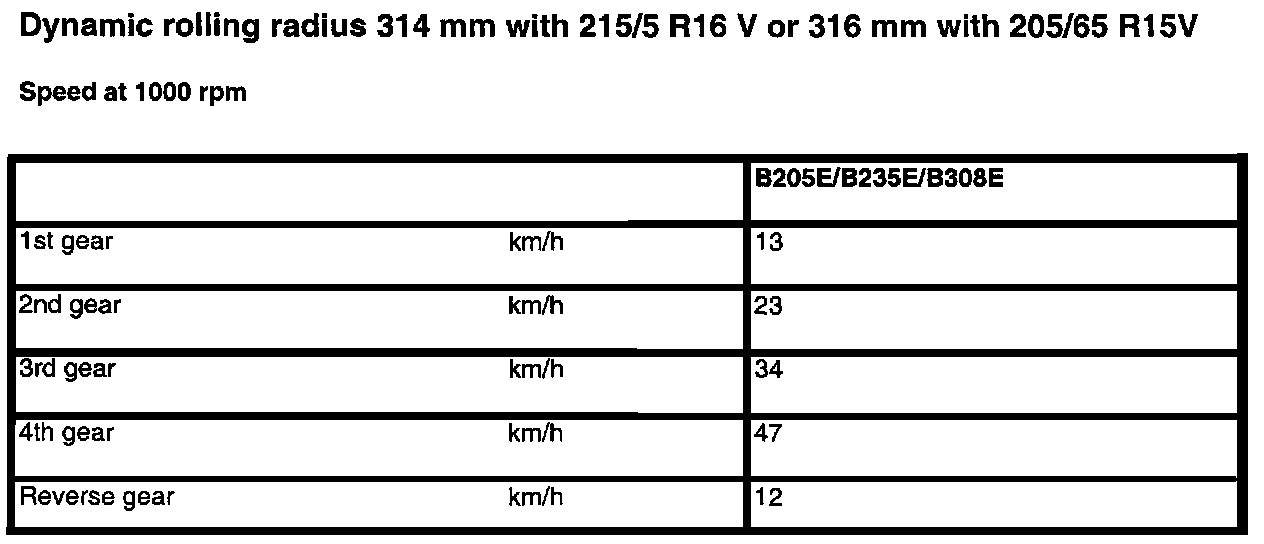

AF 30 4-spd A/T Gear Shift Speed:

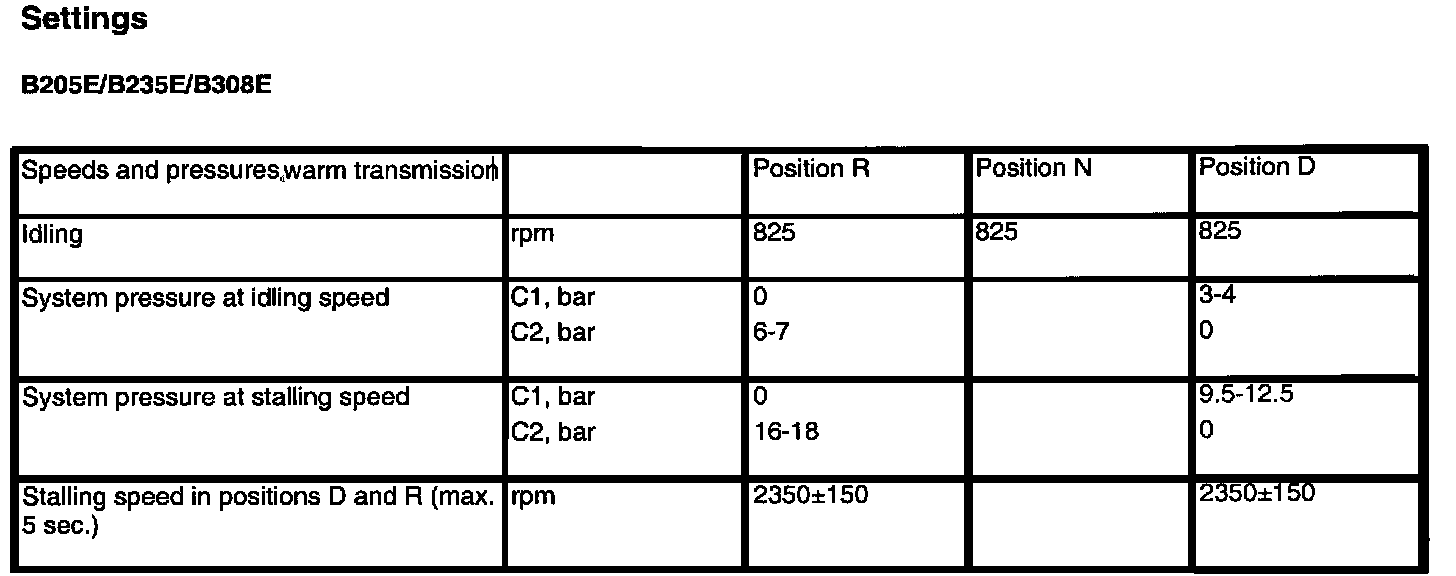

AF 30 4-spd A/T Settings:

AF 30 4-spd A/T Control Module:

AF 30 4-spd A/T Control Module Pinout Reading:

AF 30 4-spd A/T Control Module Pin Reading:

AF 30 4-spd A/T Control Module Pin Reading:

AF 30 4-spd A/T Control Module Pin Reading:

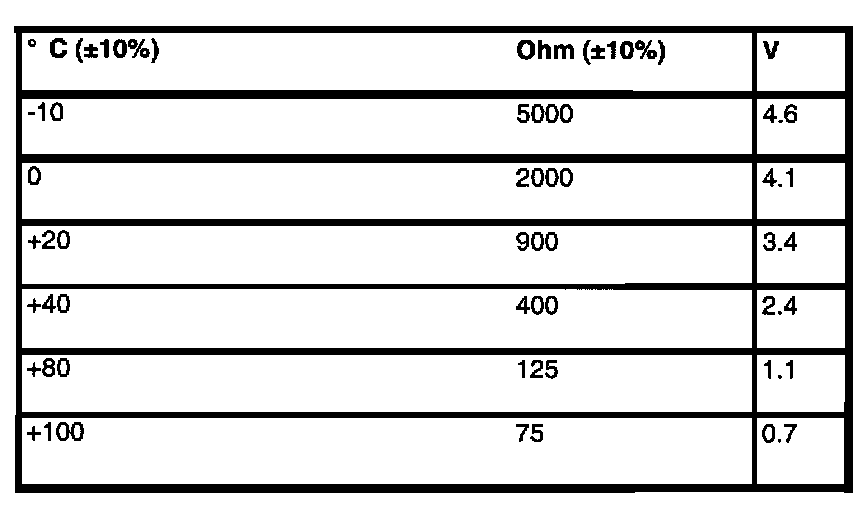

AF 30 4-spd Fluid Temperature Sensor:

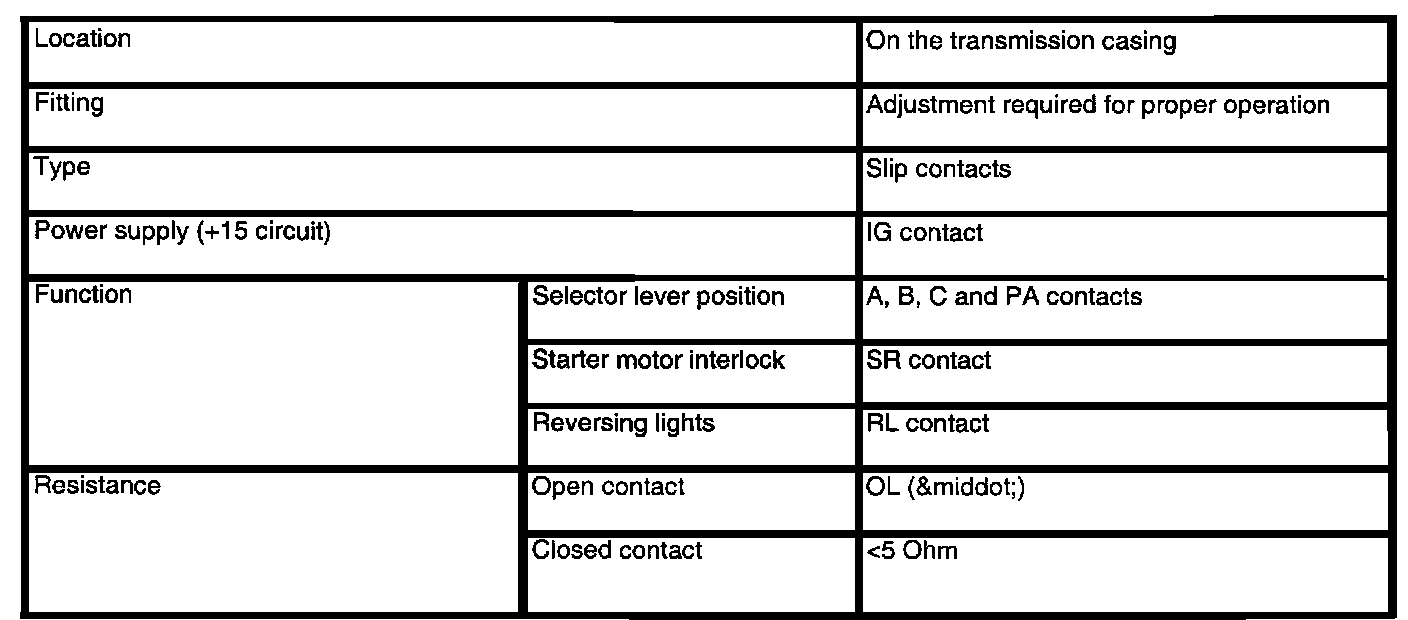

AF 30 4-spd Gear Selector Position Sensor:

AF 30 4-spd Input Speed Sensor:

AF 30 4-spd Output Speed Sensor:

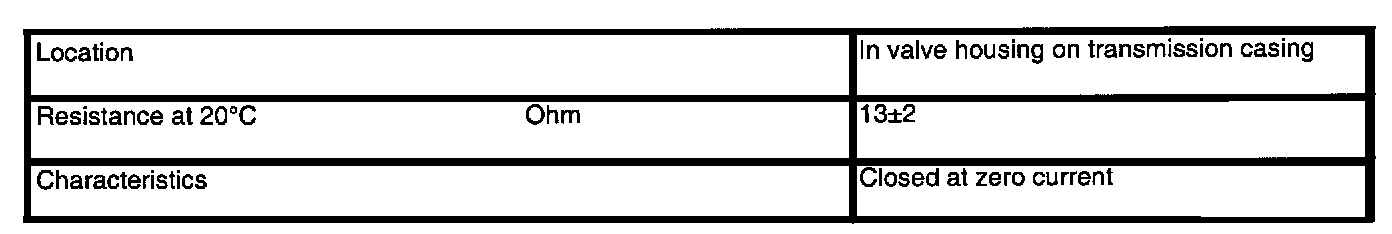

AF 30 4-spd Solenoid Shifting Valve (S1 & S2):

AF 30 4-spd Lock Up Solenoid Valve (SL):

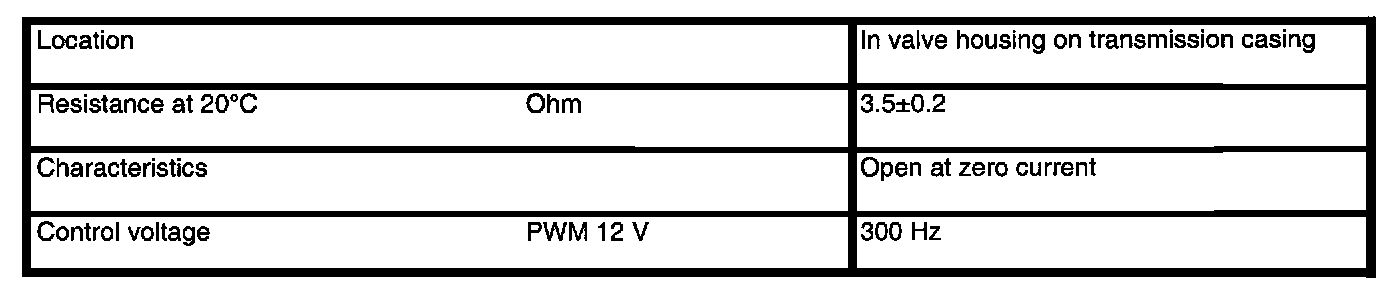

AF 30 4-spd Pressure Control Solenoid Valve (ST):
