Control Module Connection Test Values, Rain Sensor

Control module connection test values, rain sensor







Scope
This contains the readings and instructions for measuring voltage levels on the SID unit.

Remember
- Note the test conditions and use common sense when assessing the test result.
- First check that the control module has a power supply and is grounded.
- Then check all sensor inputs and signals from other systems
- Lastly, check the control module outputs. Remember, the test values do not say anything about whether or not the actuator is in working order.
- If a reading is incorrect, consult the wiring diagram to trace the leads, connectors or components which should be checked more thoroughly.

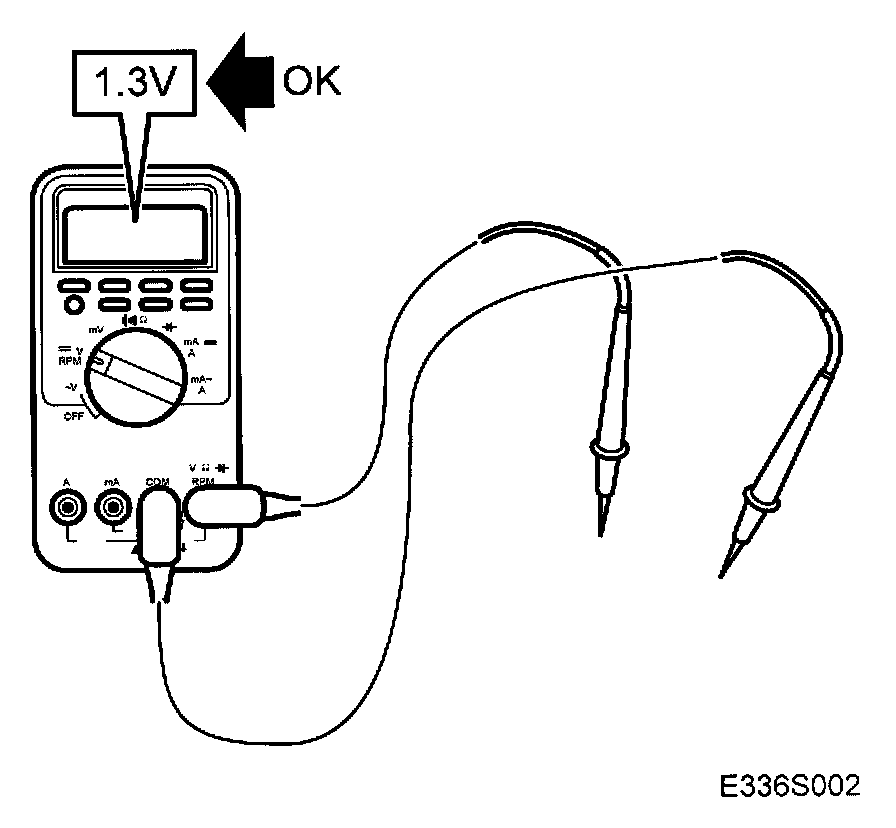

- The specified test readings refer to those obtained with a calibrated Fluke 88/97.

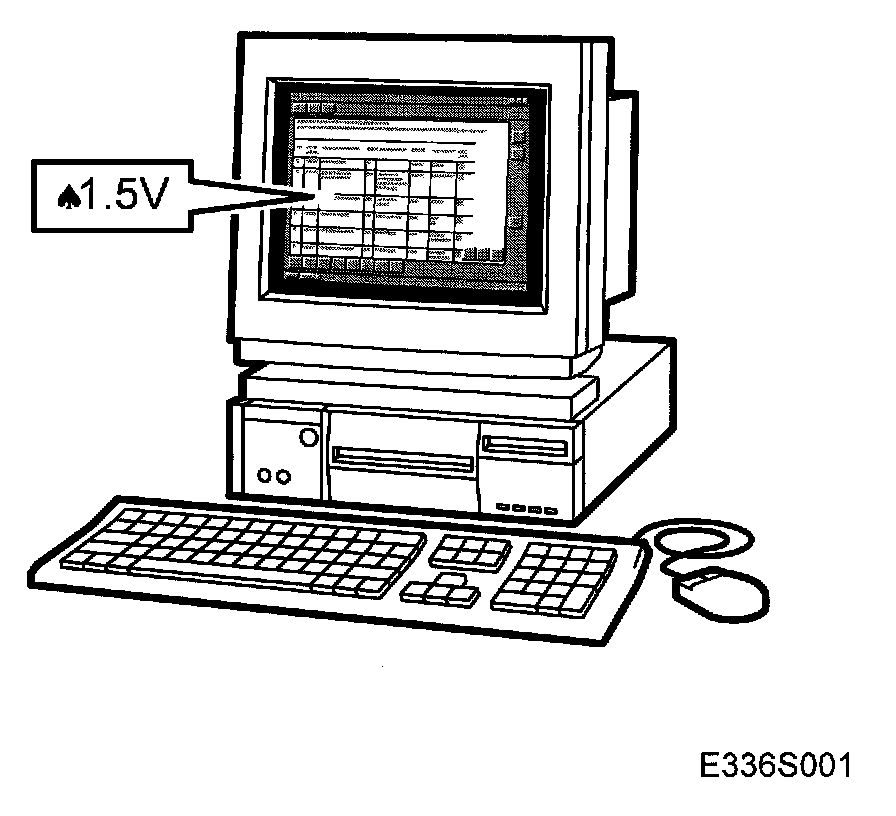

- The test readings show the signal's pulse ratio and pulse width. A test instrument with pulse ratio and pulse width measurement must be used. The sign indicates a positive trigger pulse, TRIG+.







Control module connection

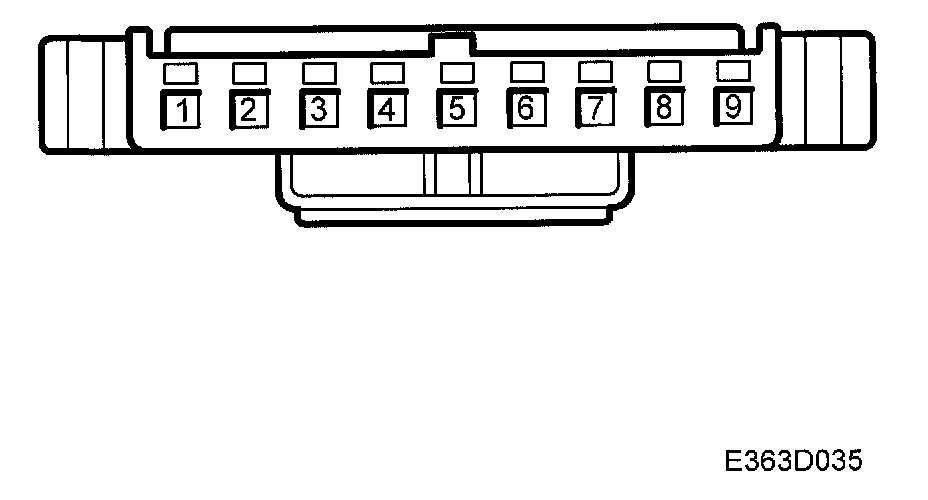

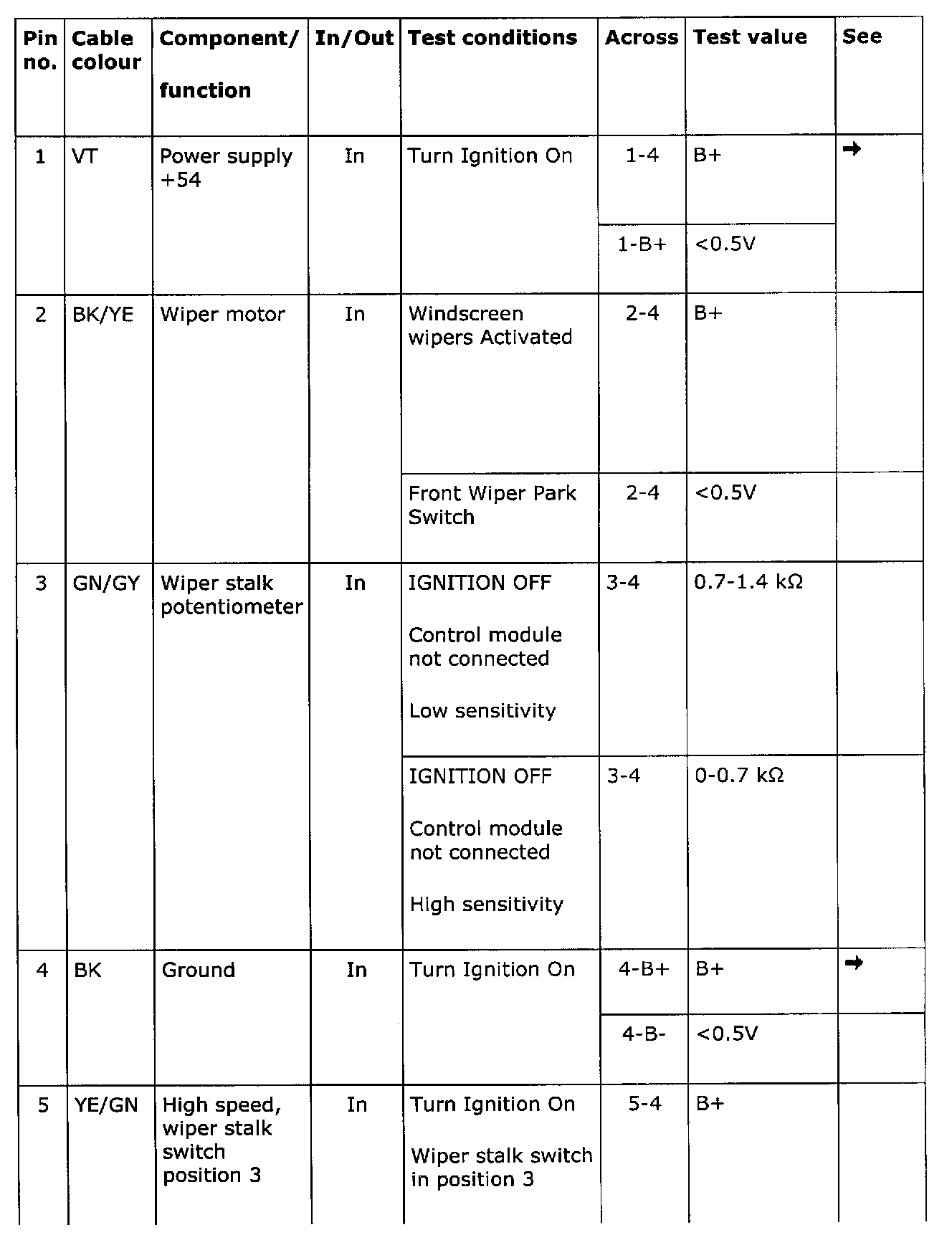

Pin Nos. 1 - 5:

Pin Nos. 6 - 9:
