Fuel Tank Pressure Sensor: Specifications

EVAP Pressure Sensor (585)

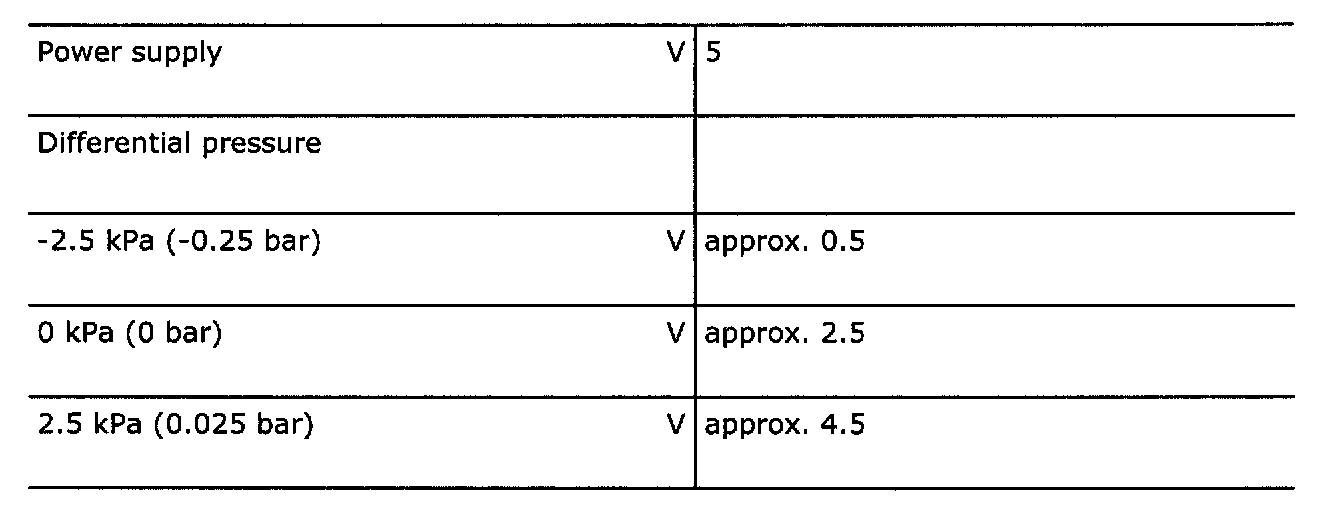

Voltage Vs Pressure Differential:

The pressure sensor indicates the difference between the pressure in the tank and the atmospheric pressure and delivers a proportional voltage to the control module.
