Home >> Saab >> 2001 >> 9-5 SE (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Restraints and Safety Systems >> Testing and Inspection >> Scan Tool Testing and Procedures

Scan Tool Testing and Procedures



Tech 2 Menu Structure

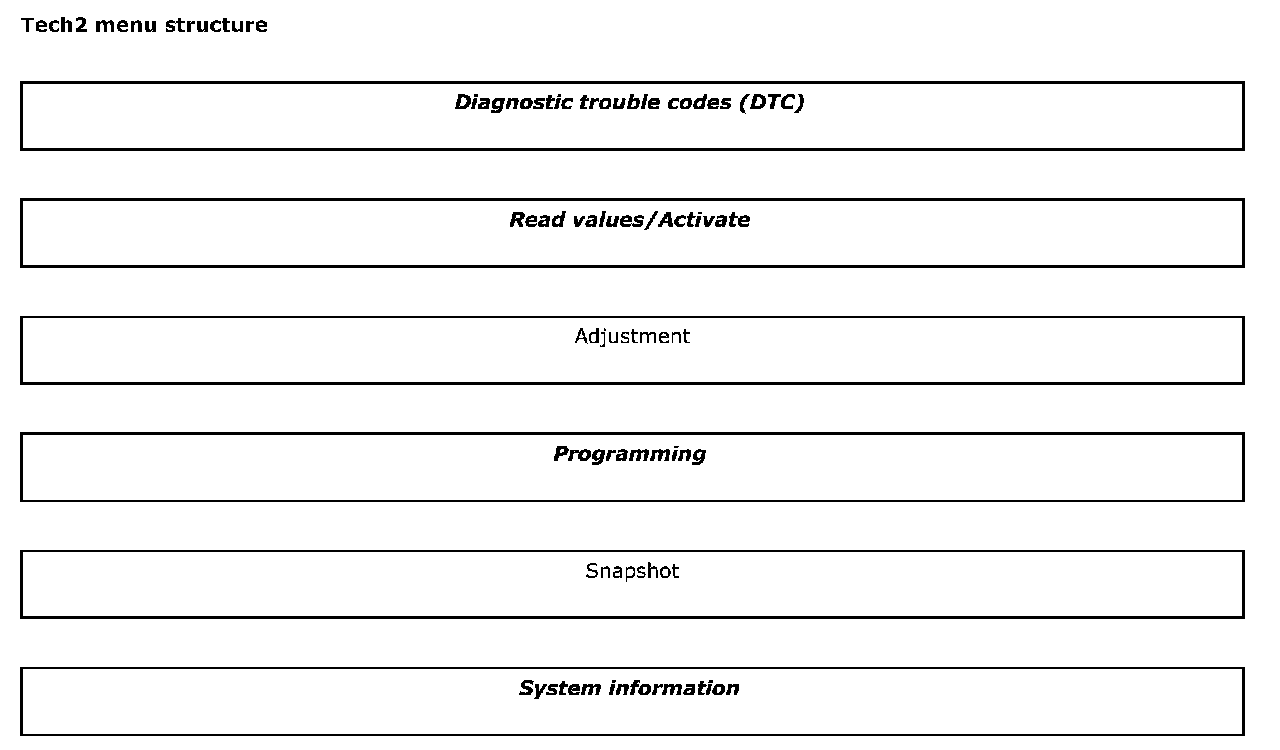

Tech2 menu structure:





Read values

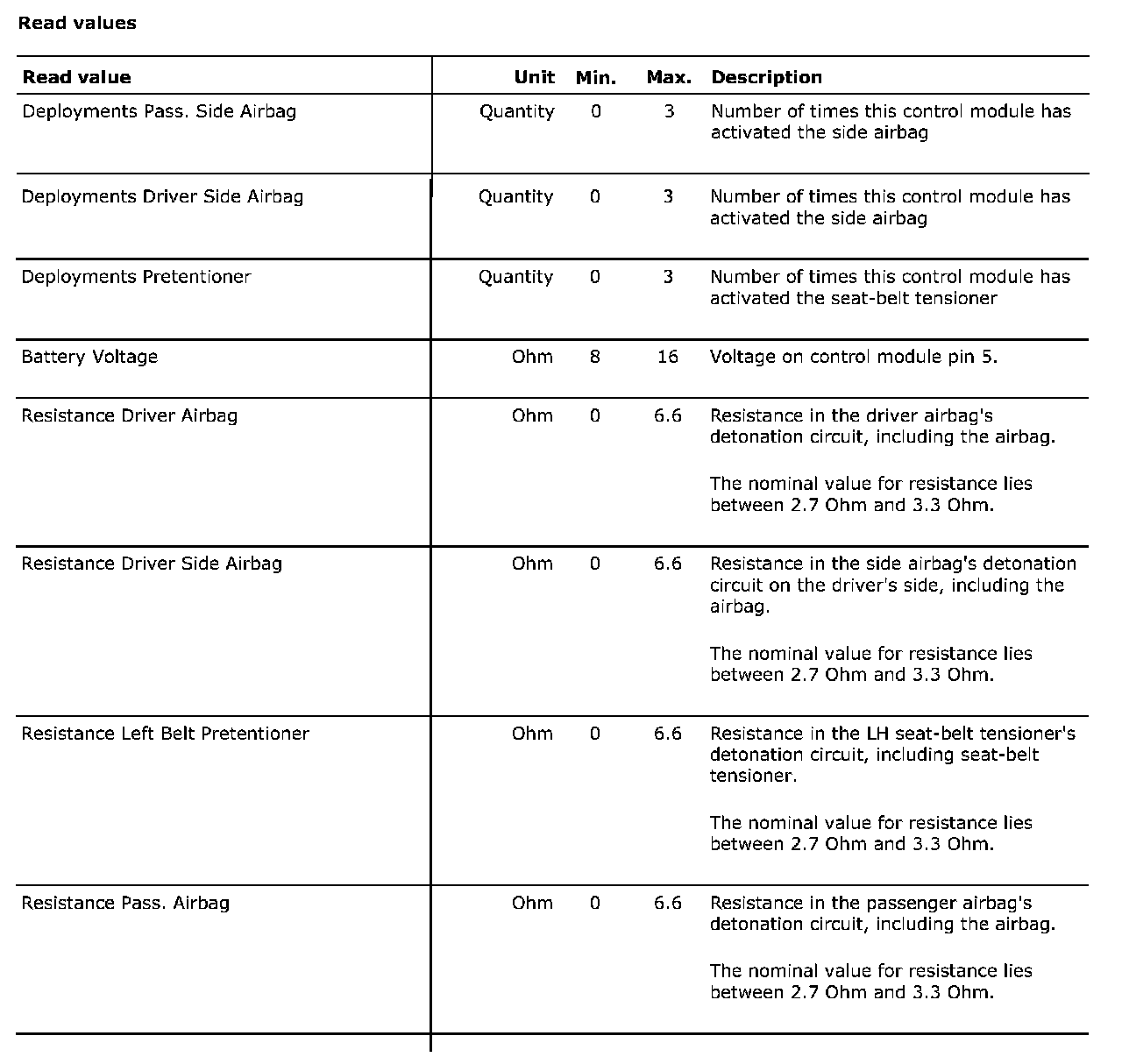

Read values (Part 1):

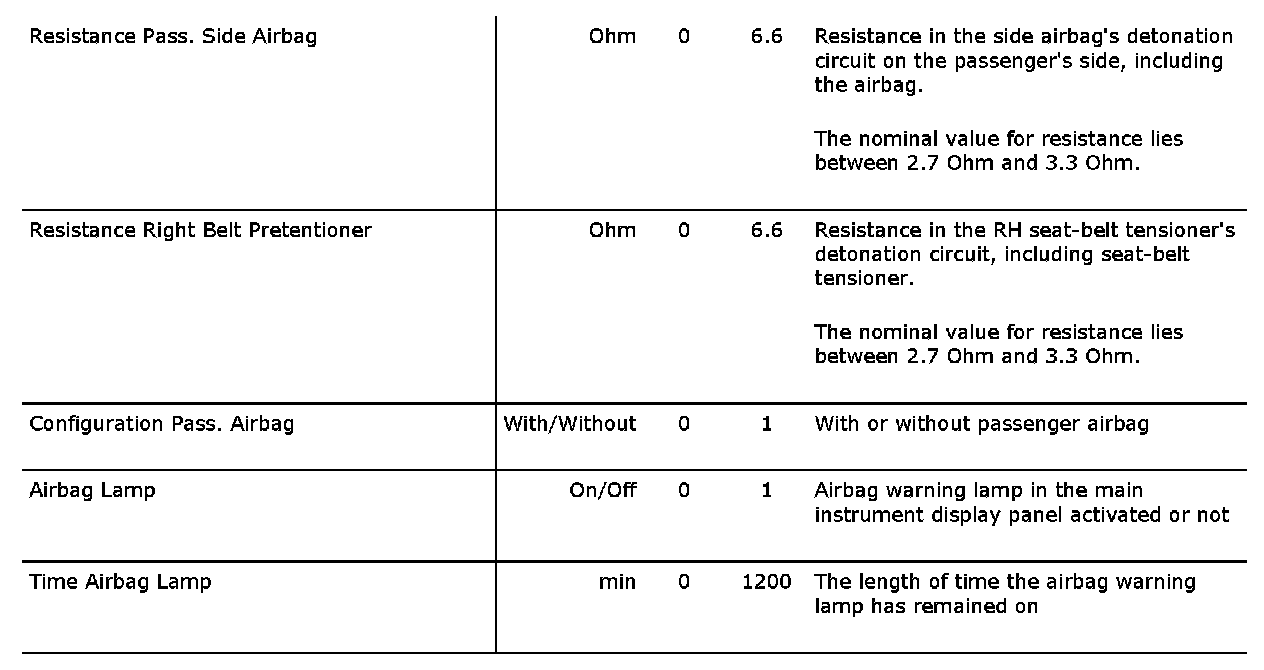

Read values (Part 2):





Programming

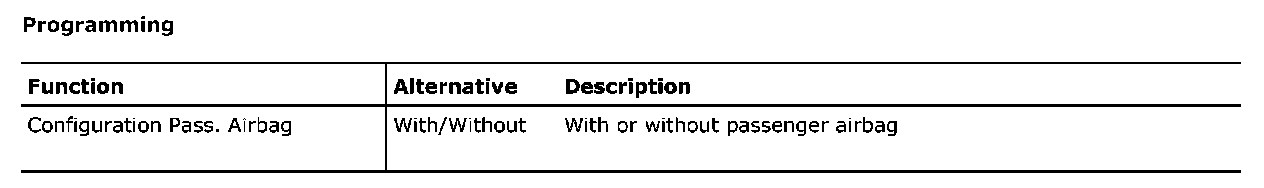

Programming:





Command menu "System information"

Command Menu "System Information":
