Air Bag Control Module: Specifications



SRS Control Module
Number of connector pins qty 45
Power supply (+15 circuit) pin 5
Ground pin 7

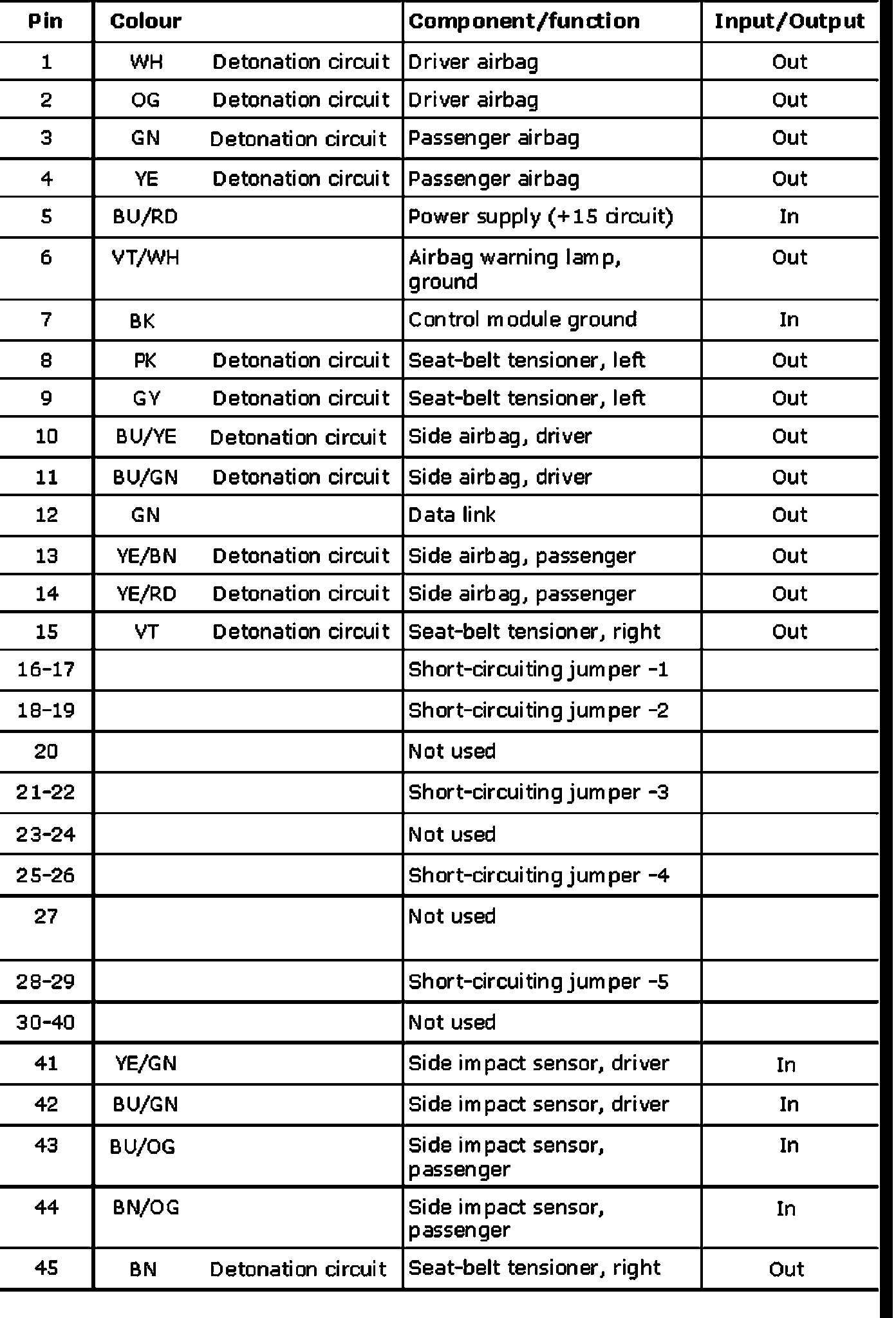

Control Module Connections
