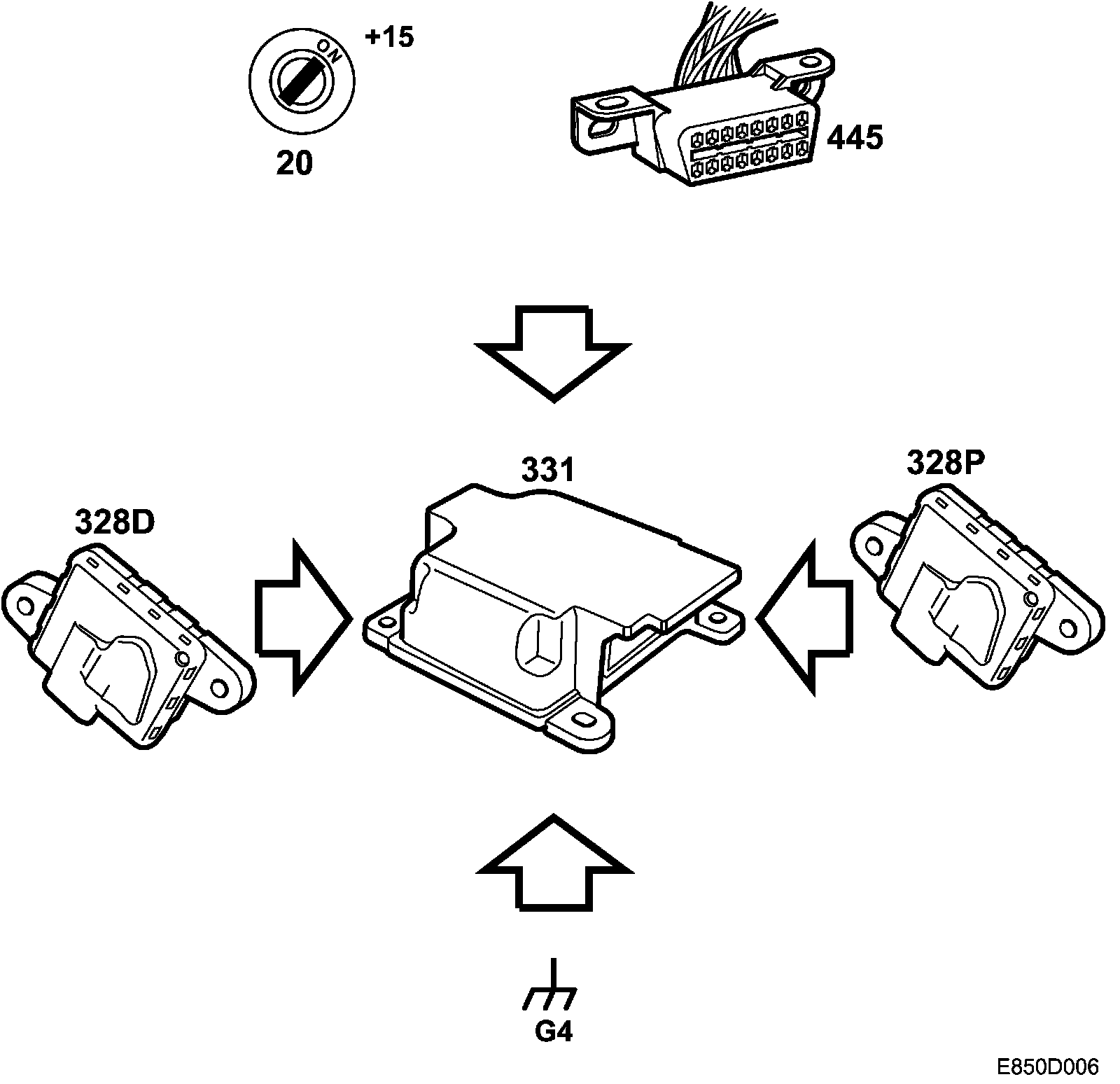

Control Module Inputs



Control Module Inputs





1. Power supply (+15 circuit)
2. Ground
3. Side impact sensor, driver
4. Side impact sensor, passenger
5. Diagnostics communication
