Air Bag Control Module: Application and ID

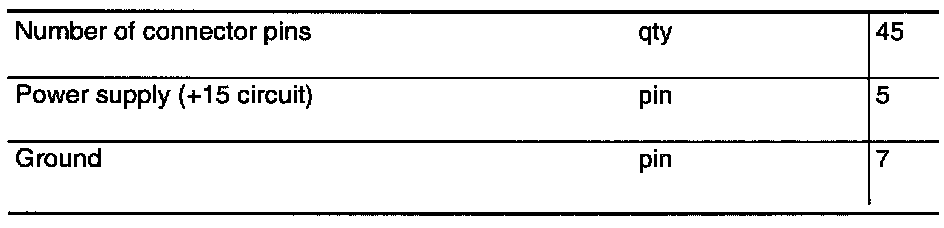

SRS Control Module:

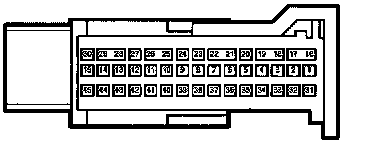

Control Module Connections:

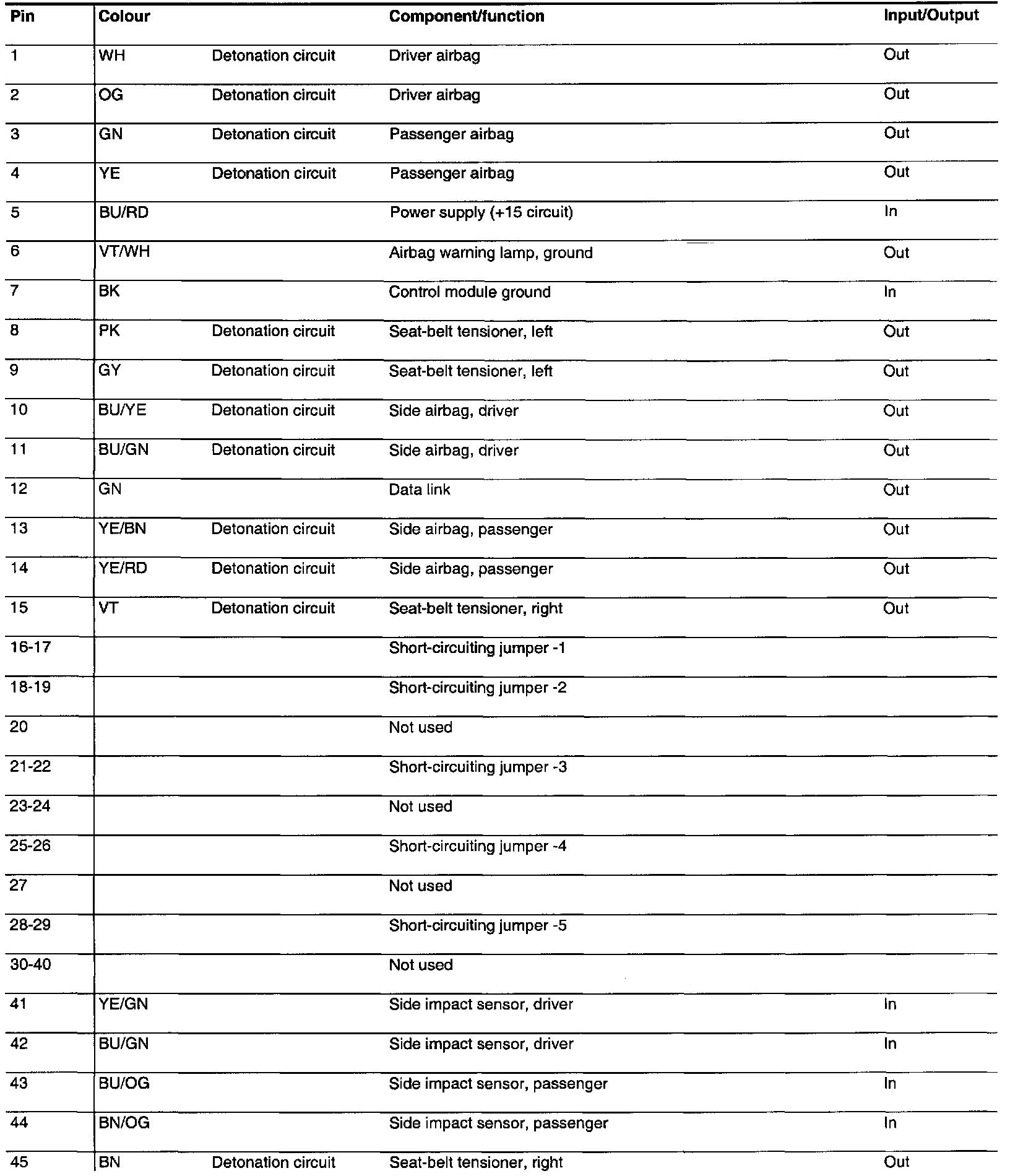

Pin No 1 - 45:
