42-Pin Connectors
42-Pin Connectors

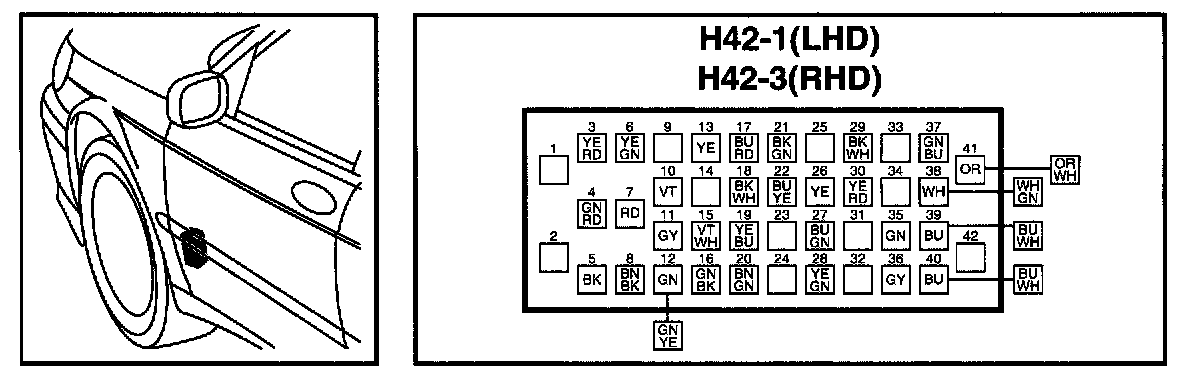

42-pin Connector (H42-1 (LHD), H42-3 (RHD)

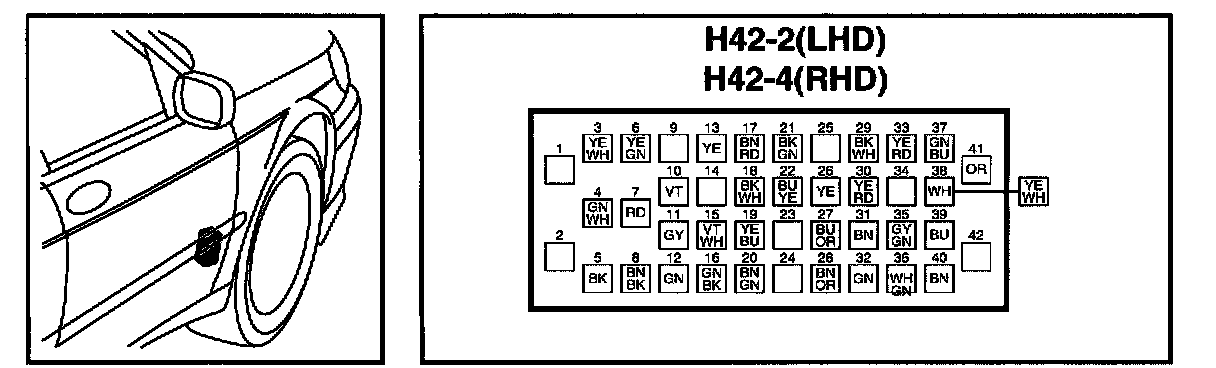

42-pin Connector (H42-2 (LHD), H42-4 (RHD)
