System Relay: Service and Repair

Relay, A/C

To remove

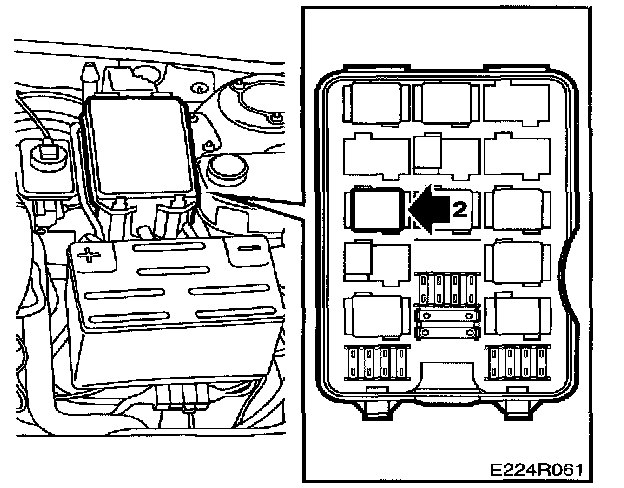

1 Take the cover off the box for relays and fuses in the engine bay.
2 Remove the relay by carefully moving the catch aside and then pulling the relay straight up.

To fit
1 Spray the contacts in the relay holder with Kontakt 61 contact cleaner (part No. 30 21 763).
2 Fit the relay.
3 Put the cover back on.
