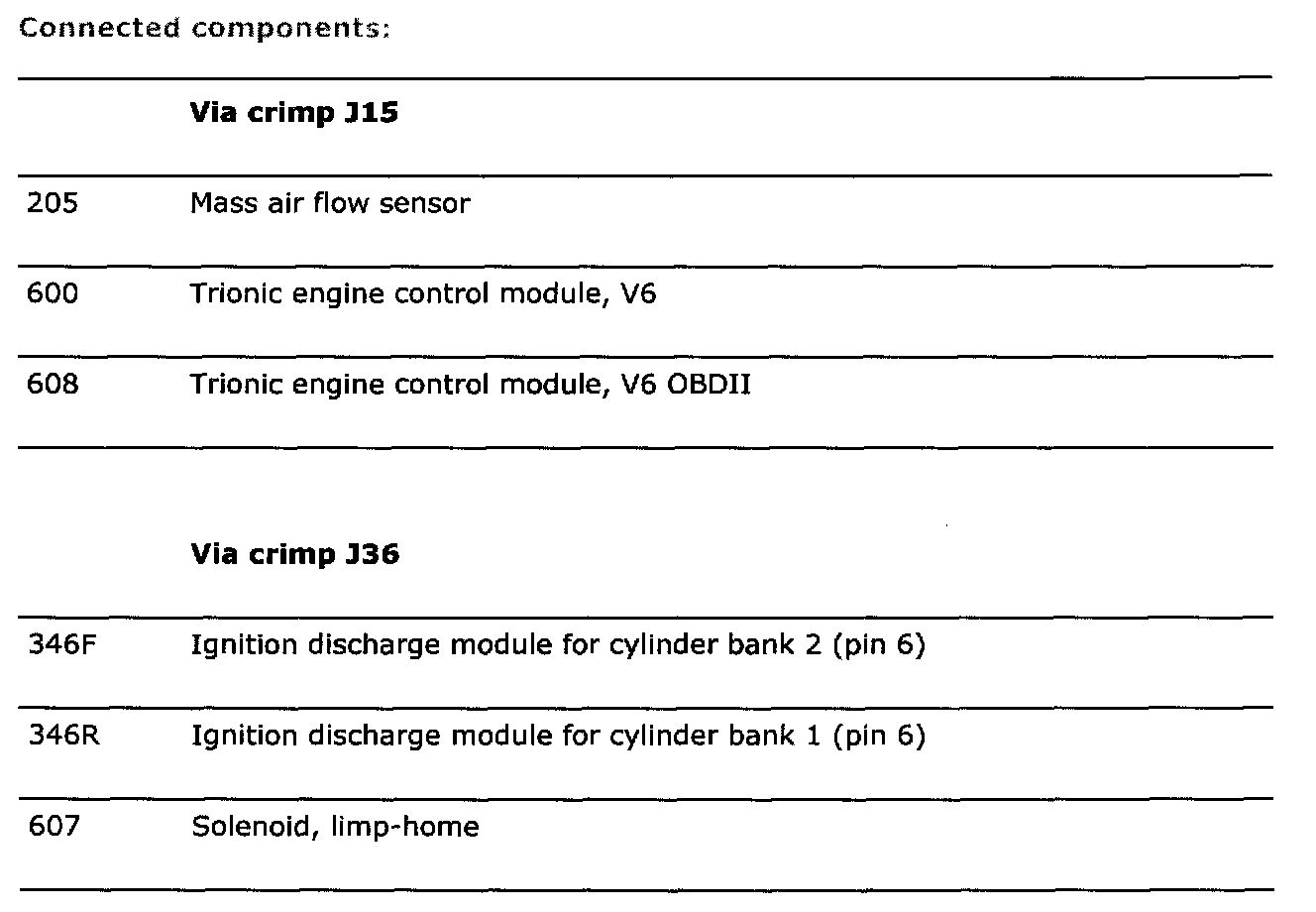

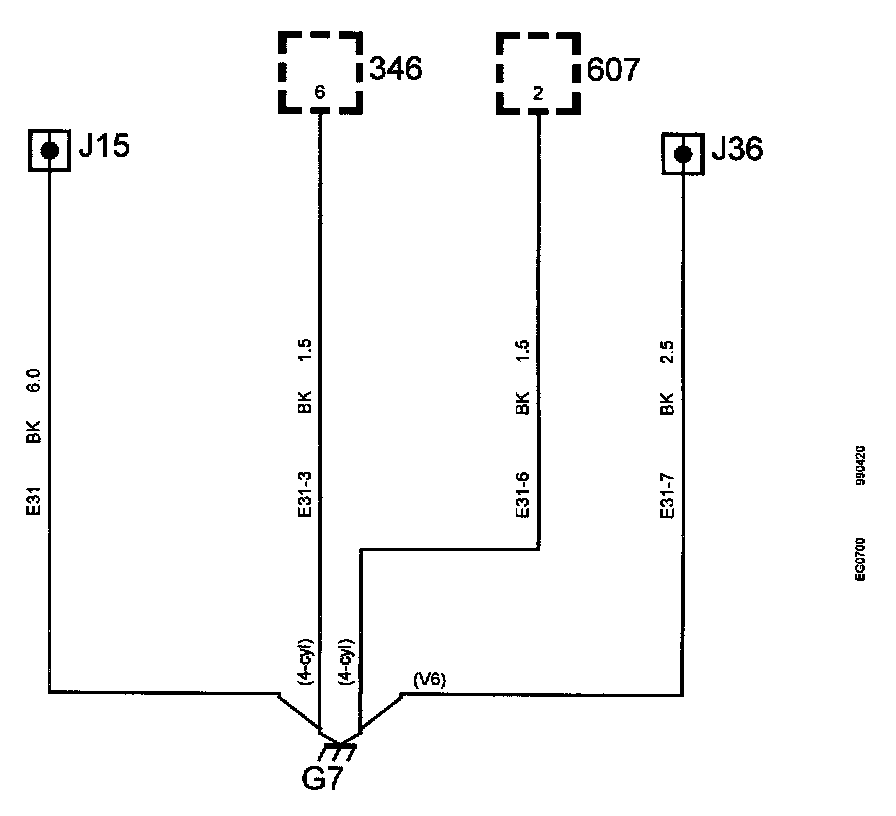

Grounding Point G7
Grounding Point G7
Grounding Point G7, V6

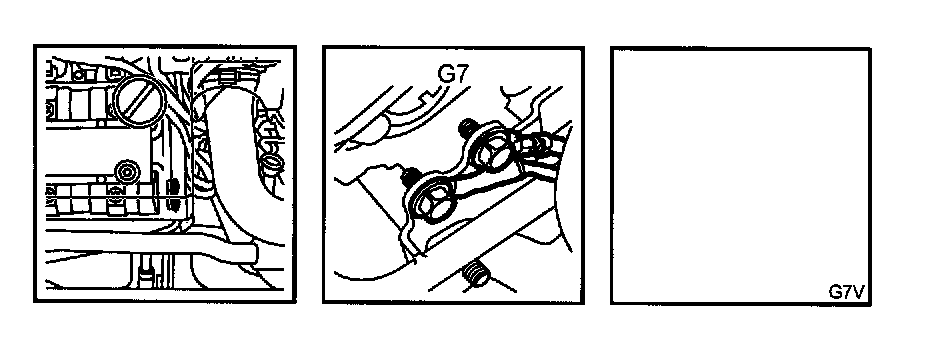

Location:
On a console at the front of the engine.
