Direction Indicators, Front

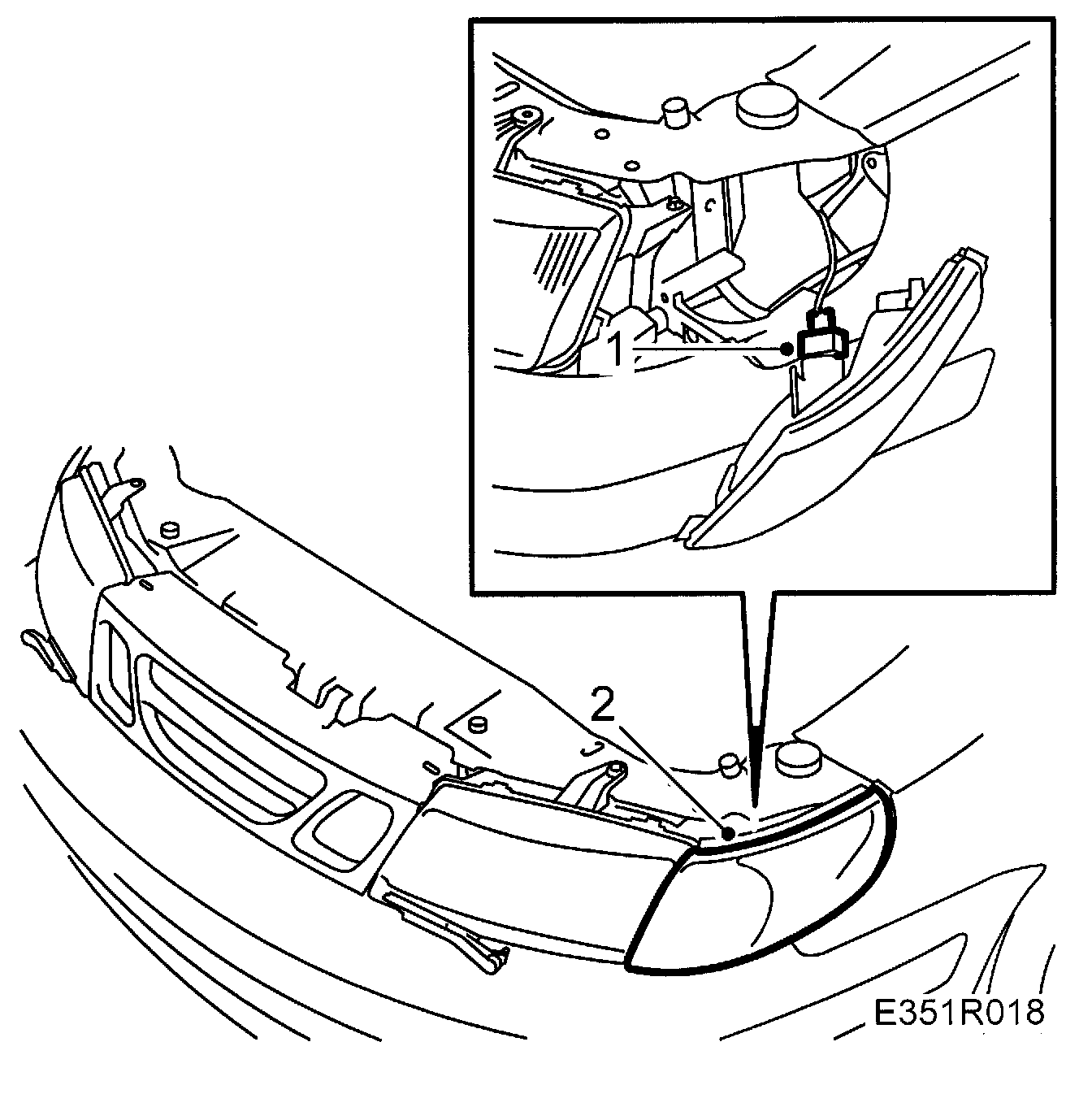

To remove







1. Unscrew the light cluster and pull the lamp forwards.
2. Turn the lamp holder anti-clockwise and lift it out completely.
3. Remove the light cluster.

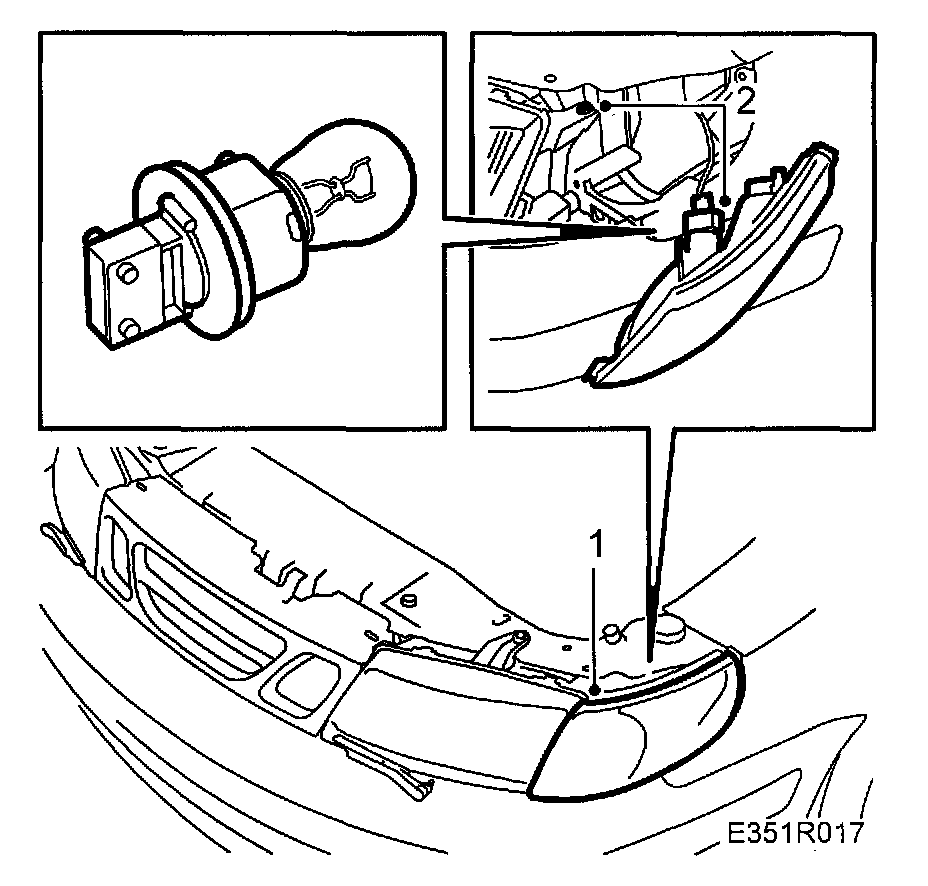

To fit







1. Insert the lamp and lampholder into the light cluster and turn it clockwise to fasten it.
2. Position the light cluster correctly and tighten its retaining screw. Make sure the plate nut is in the correct position.
