Selector Lever Position Indicator

Selector Lever Position Indicator

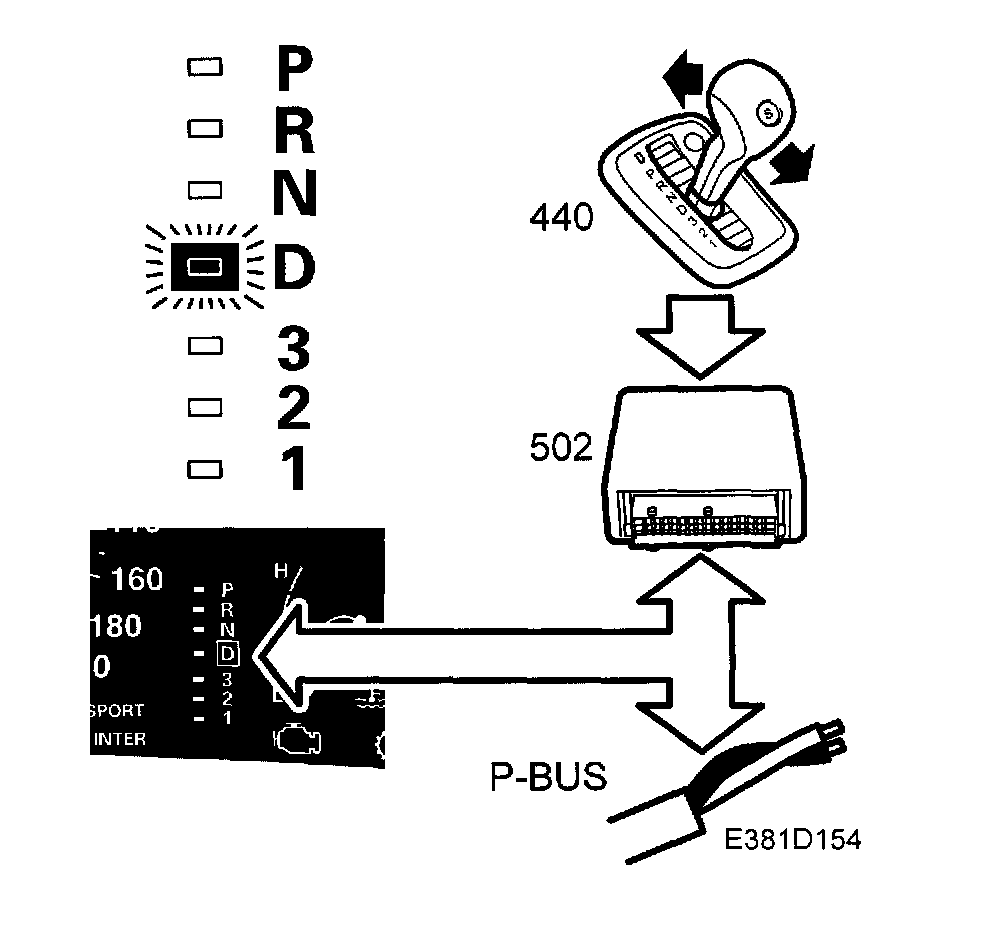

On cars with automatic transmission, the Selector lever position indicator shows which gear is selected by lighting up the corresponding gear symbol.

The selector lever position indicator consists of 7 segments, each with an LED beside the corresponding symbol (PRND321). The symbols are illuminated by a lamp7 the brightness of which is controlled by the rheostat value.

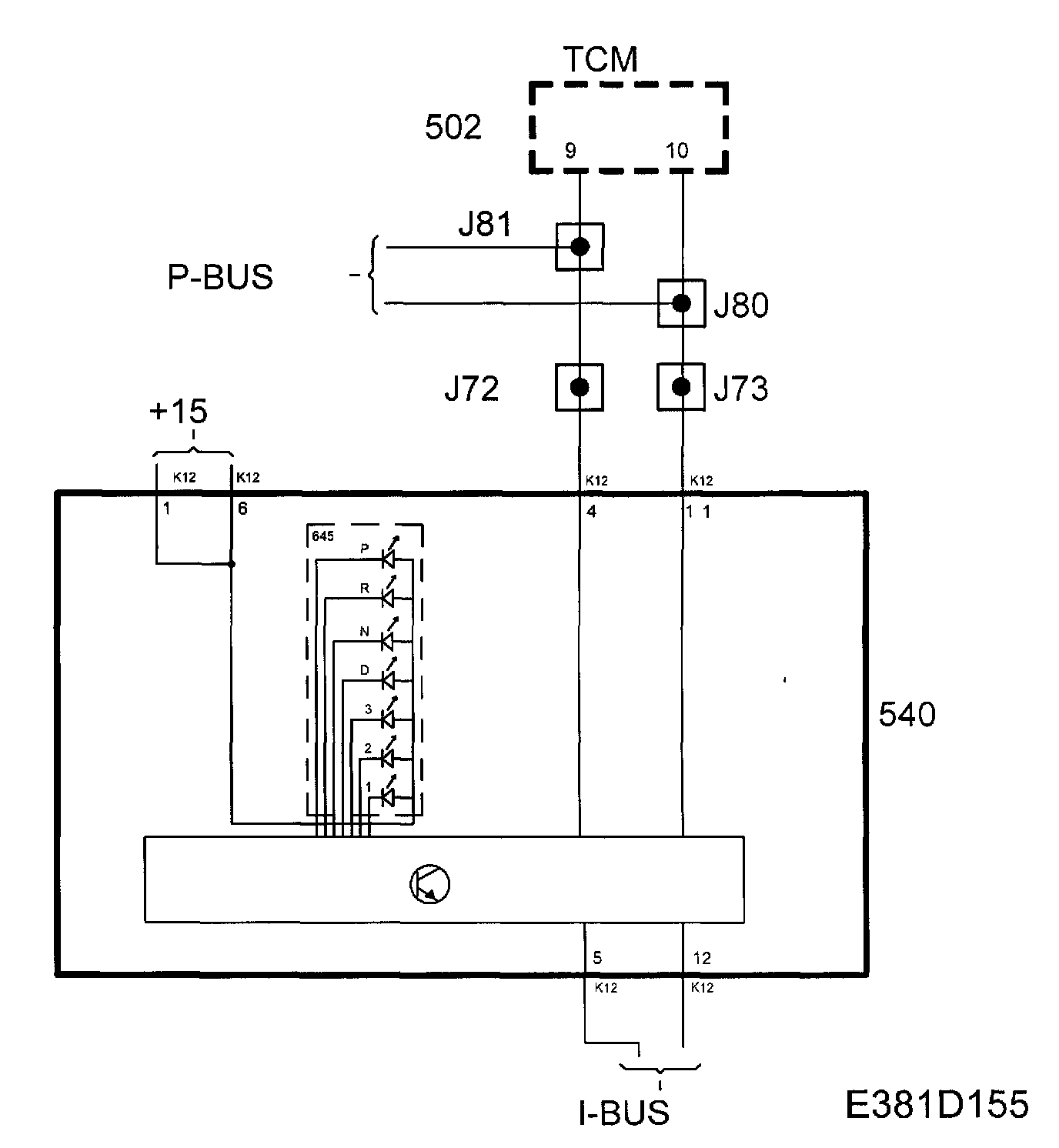

The lamp and LEDs are supplied with current in the main instrument unit and are grounded by the main instrument unit control module. The TCM continuously sends bus information on the status of all the selector lever positions, unit ON/OFF.

Example

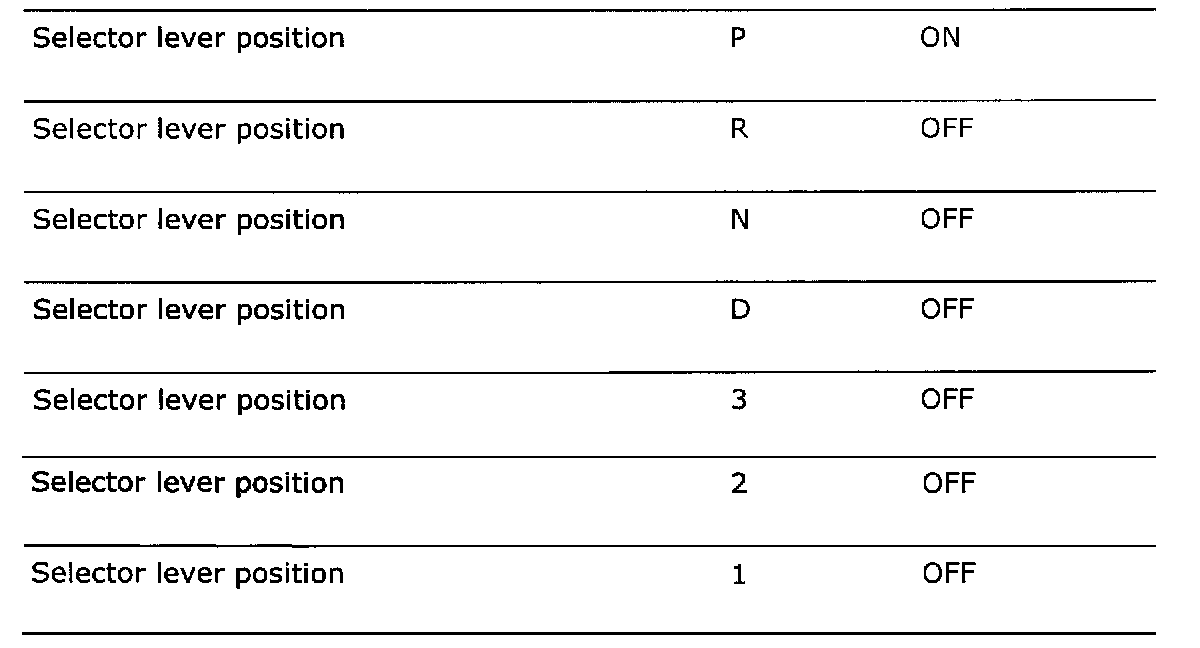

When the selector lever is in position P, the following information is sent:







The main instrument unit control module grounds the output of the LED for symbol P, which then lights up. The other symbols remain off. If another selector lever position is engaged, the status of the bus information will change. The previously lit symbol will go out and the symbol for the new selector lever position will light up.

Diagnostics
The function has its own diagnostics in the sending system.
