Main Beam Indicator Lamp




Main Beam Indicator Lamp

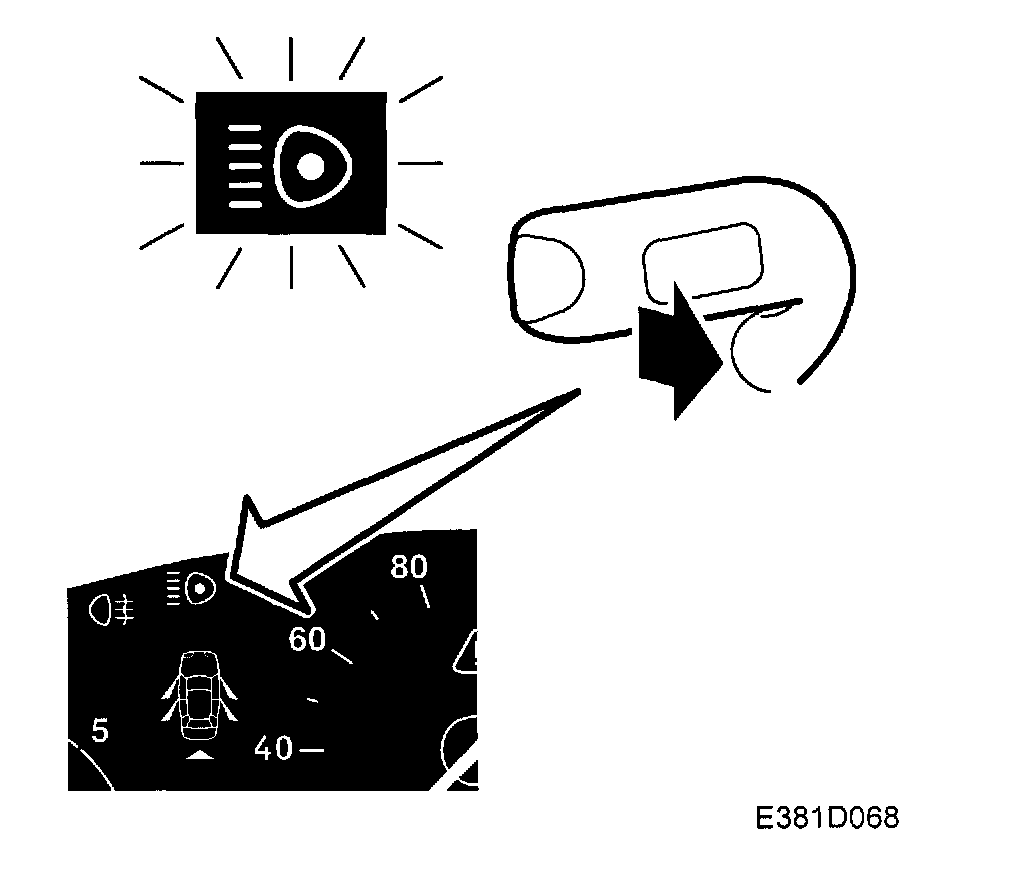

The indicator lamp is situated in the upper left-hand corner and informs the driver that main beams are switched on.

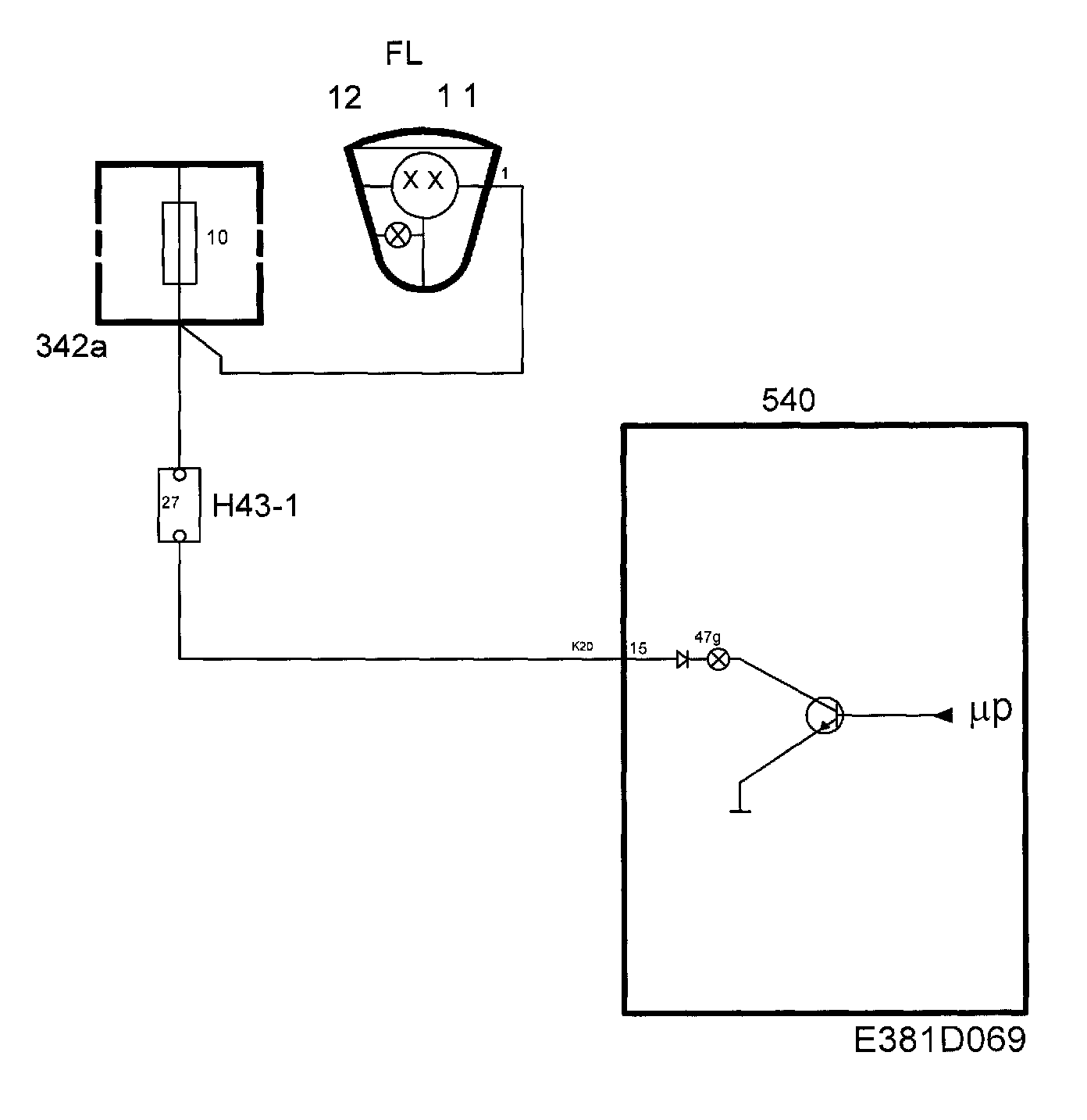

The lamp is supplied with current from main beam fuse 10 on pin 15 (K20) of the main instrument unit and is grounded in the main instrument unit.

Diagnostics
The function has no diagnostics.
