Cruise Indicator Lamp

CRUISE Indicator Lamp

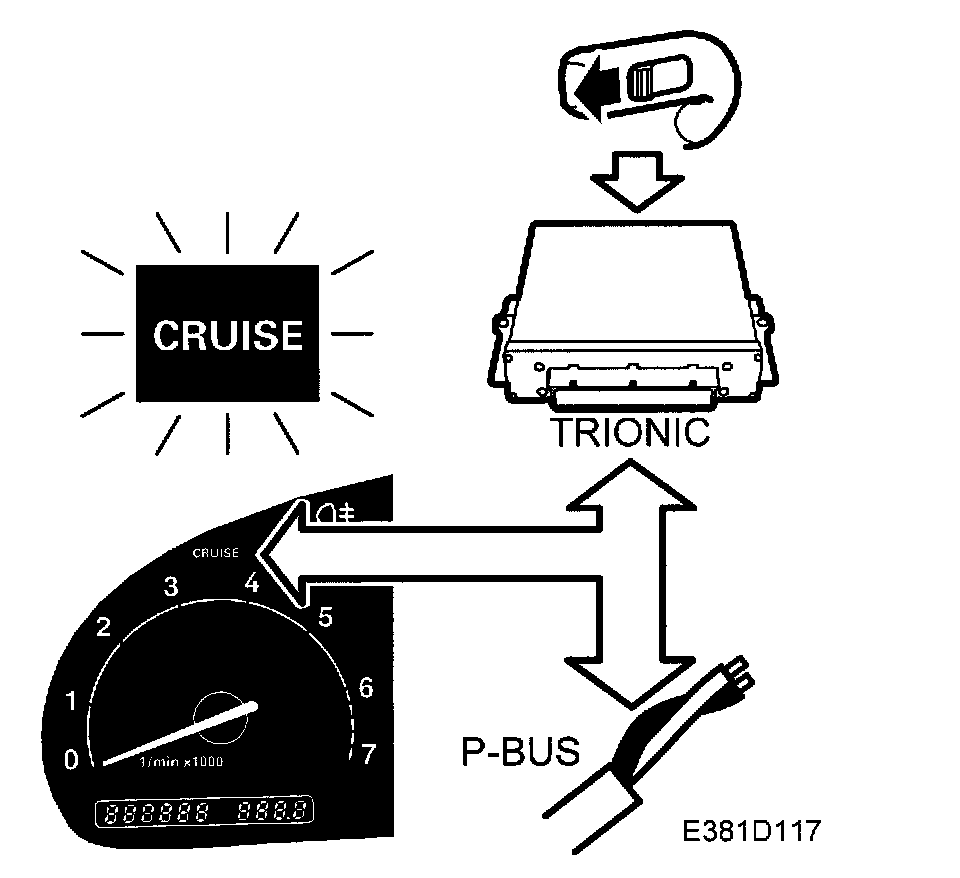

The main instrument unit incorporates a CRUISE indicator lamp that lights up when Cruise Control is engaged.

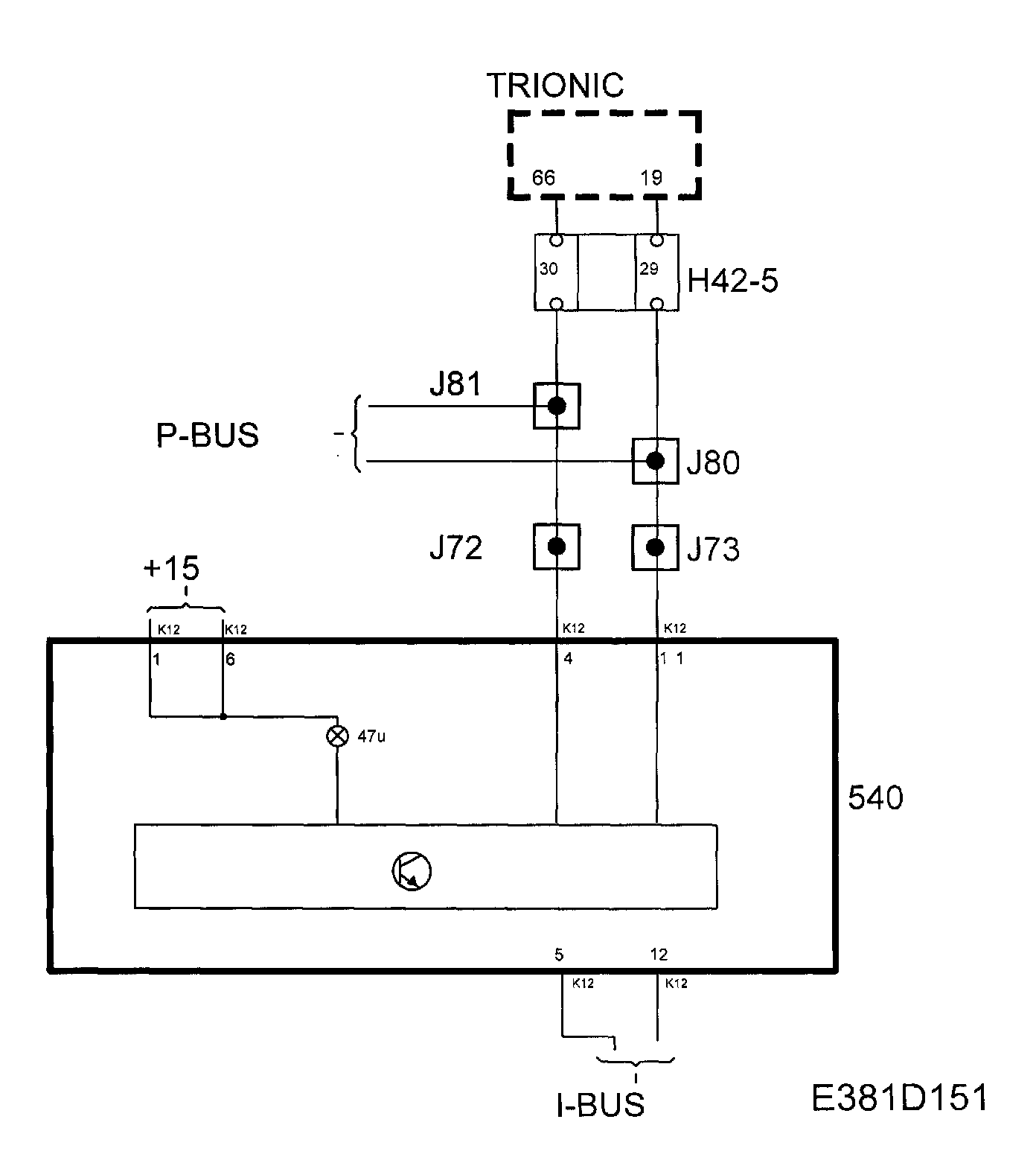

The lamp is supplied with current in the main instrument unit and grounded by the MIU's control module. Trionic continuously sends bus information CRUISE Lamp, unit ON/OFF.

On receiving CRUISE Lamp ON, the control module grounds the output of the lamp which then lights up.

If Cruise Control is disengaged, Trionic changes the status of the information to CRUISE Lamp OFF and the lamp goes out.

Diagnostics
The function has its own diagnostics in the sending system.
