System Overview, Button Illumination and Lighting For Controls

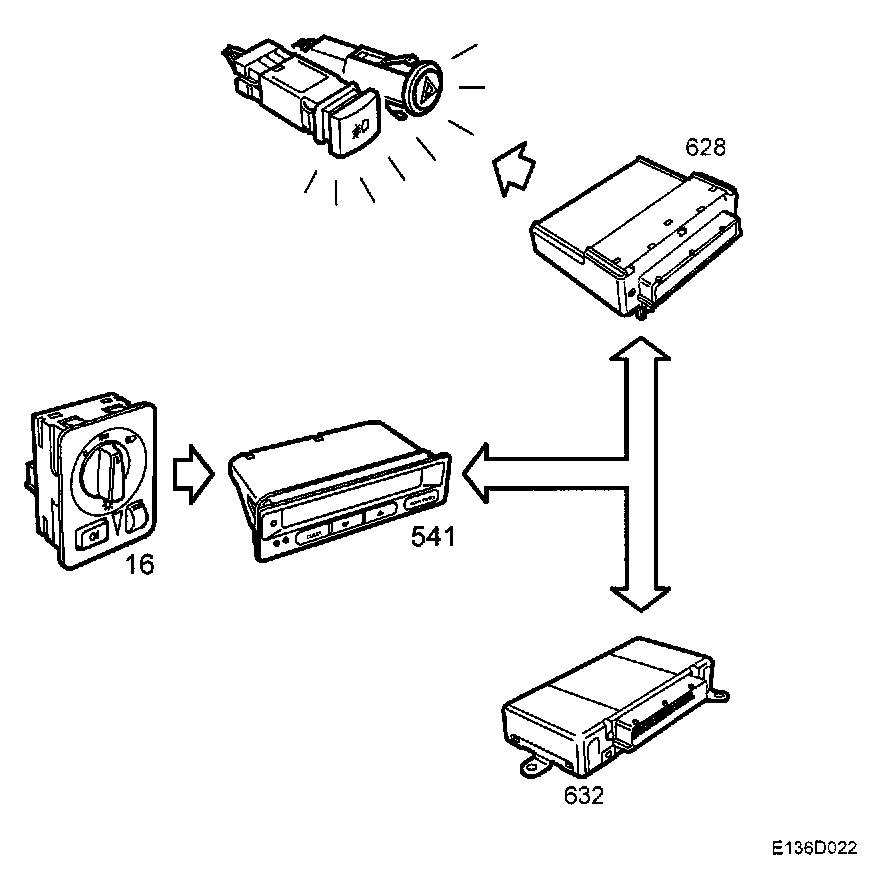

System overview, button illumination and lighting for Controls







- Control module, DICE (628)
- SID (541)
- Control module, TWICE (632)
- Instrument illumination rheostat (16)

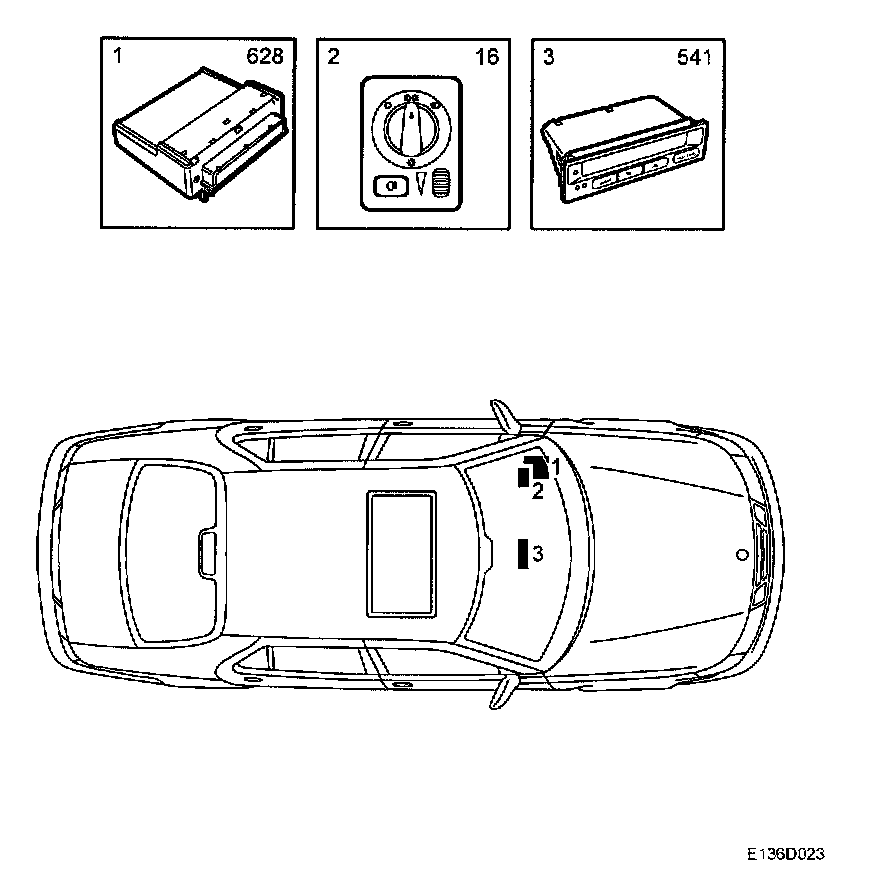

Main components, button illumination and lighting for controls







1. Control module, DICE (628)
2. Instrument illumination rheostat (16)
3. SID (541)
