Main Components, A/C Function

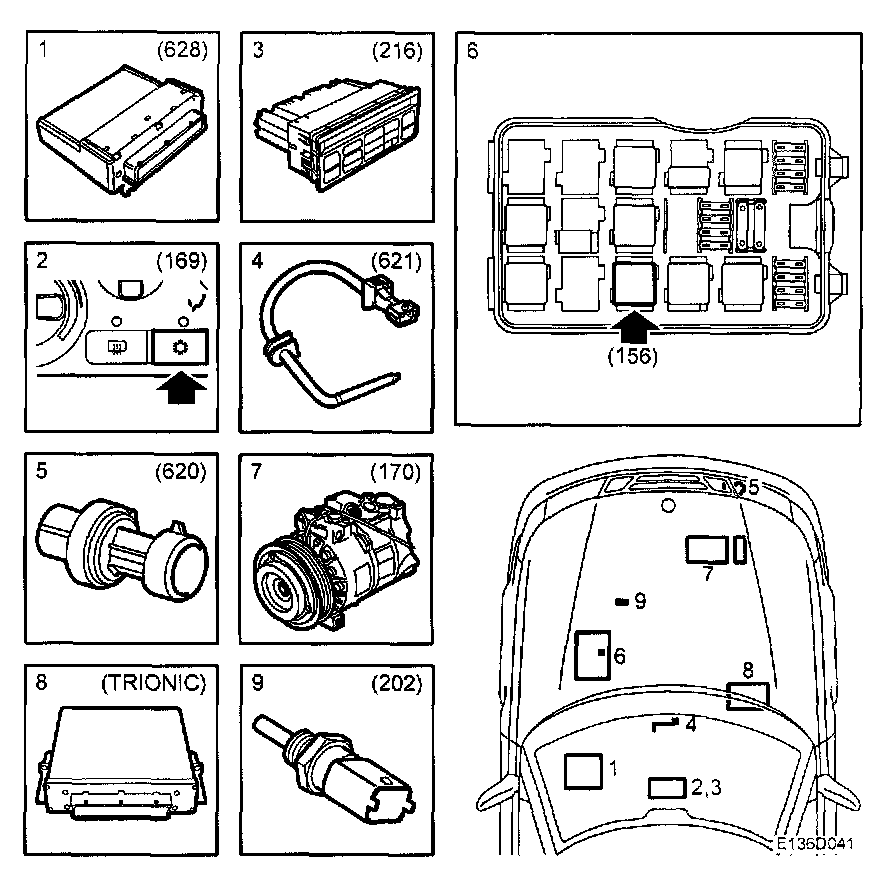

Main components, A/C function







1. Control module, DICE (628)
2. Switch, A/C (169)
3. Control module, ACC (216)
4. Evaporator temperature sensor, A/C (621)
5. Pressure sensor, A/C (620)
6. Relay, A/C compressor (156)
7. A/C compressor (170)
8. Engine management system (430, 589, 600, 608)
9. Engine coolant temperature sensor, engine management system (202)
