Checking Compressor Engagement From Trionic - II

Checking Compressor Engagement From Trionic





^ Turn the ignition switch to the ON position.





^ Contact Trionic.
Activate: AC Relay (ON)

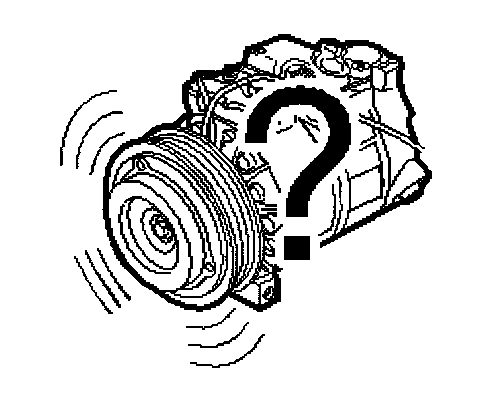

^ A/C clutch should engage

Is the function correct?

NO ^ Checking the Electromagnetic Clutch

YES ^ Checking A/C In in DICE
