Home >> Saab >> 2001 >> 9-5 SE (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Audio System, Main Unit

Audio System, Main Unit

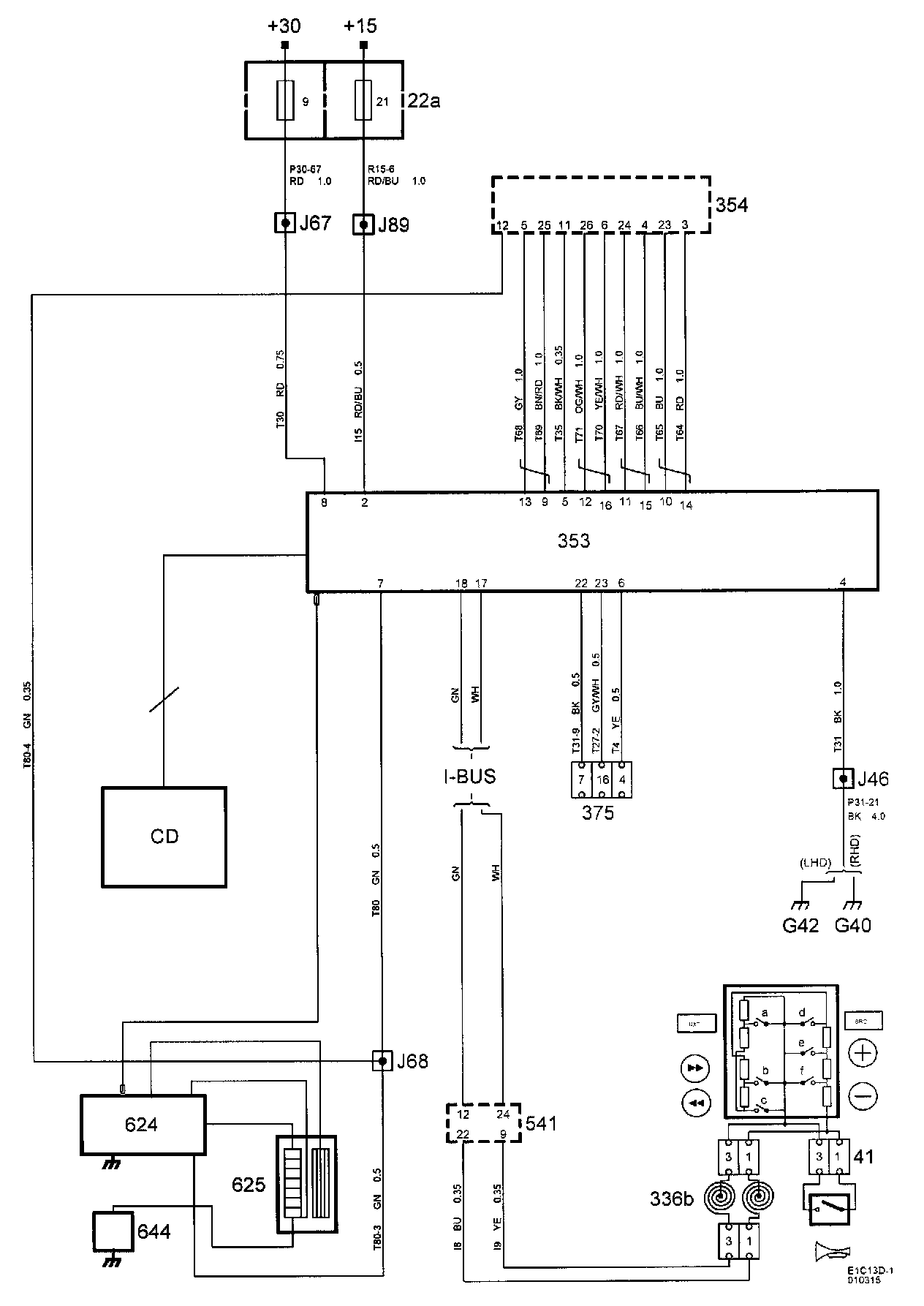

Audio System, Main Unit, 4D

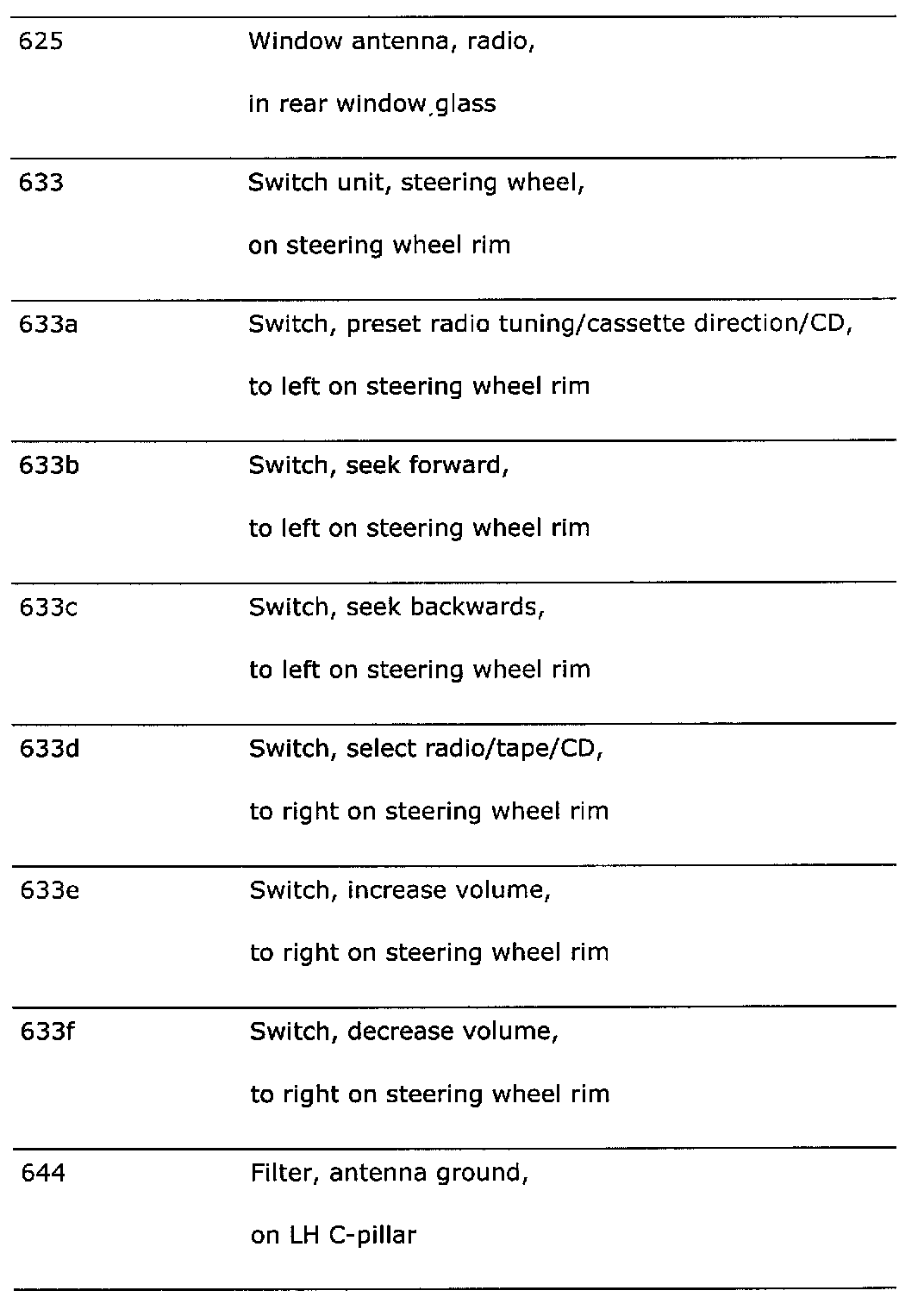

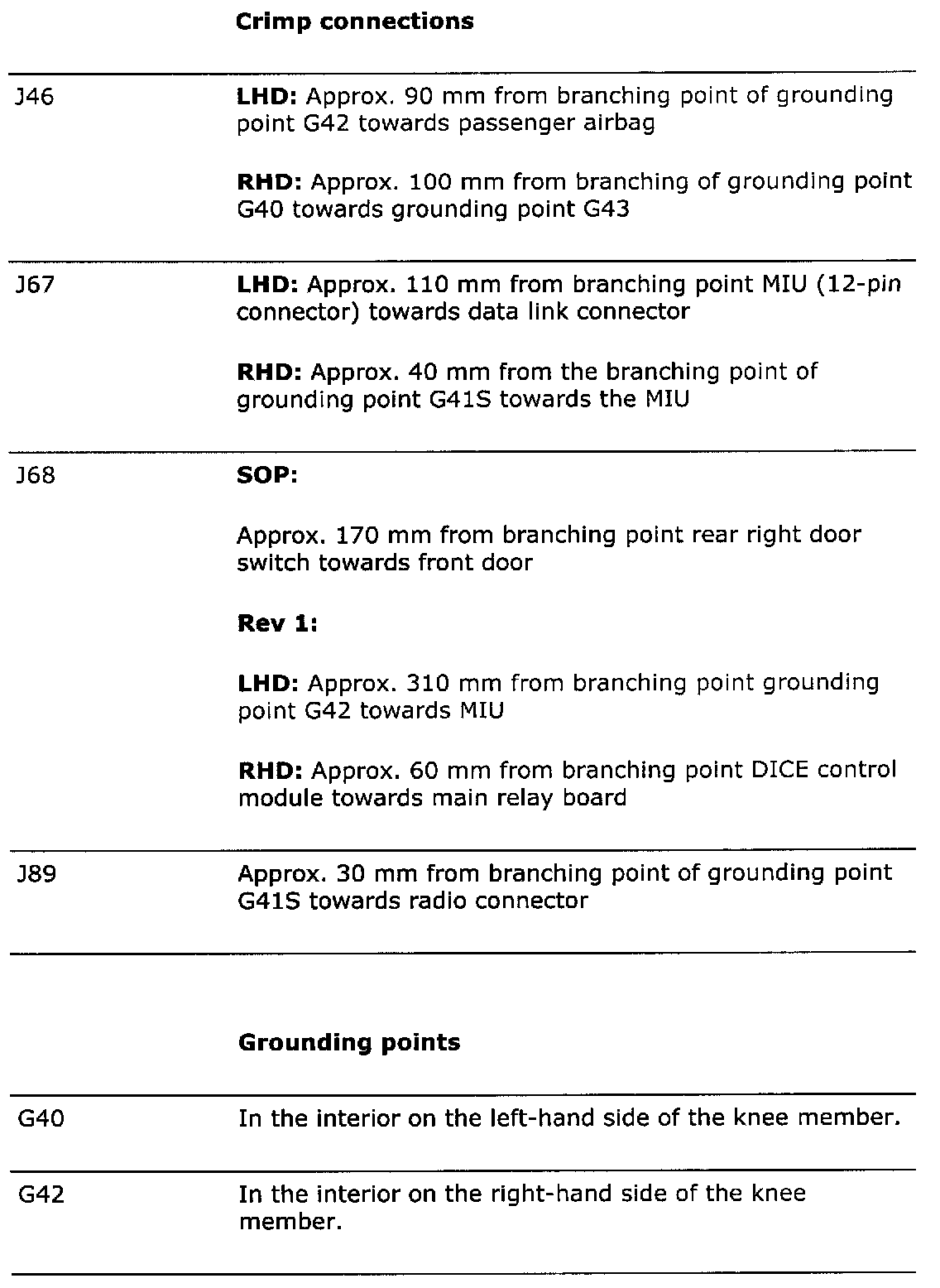

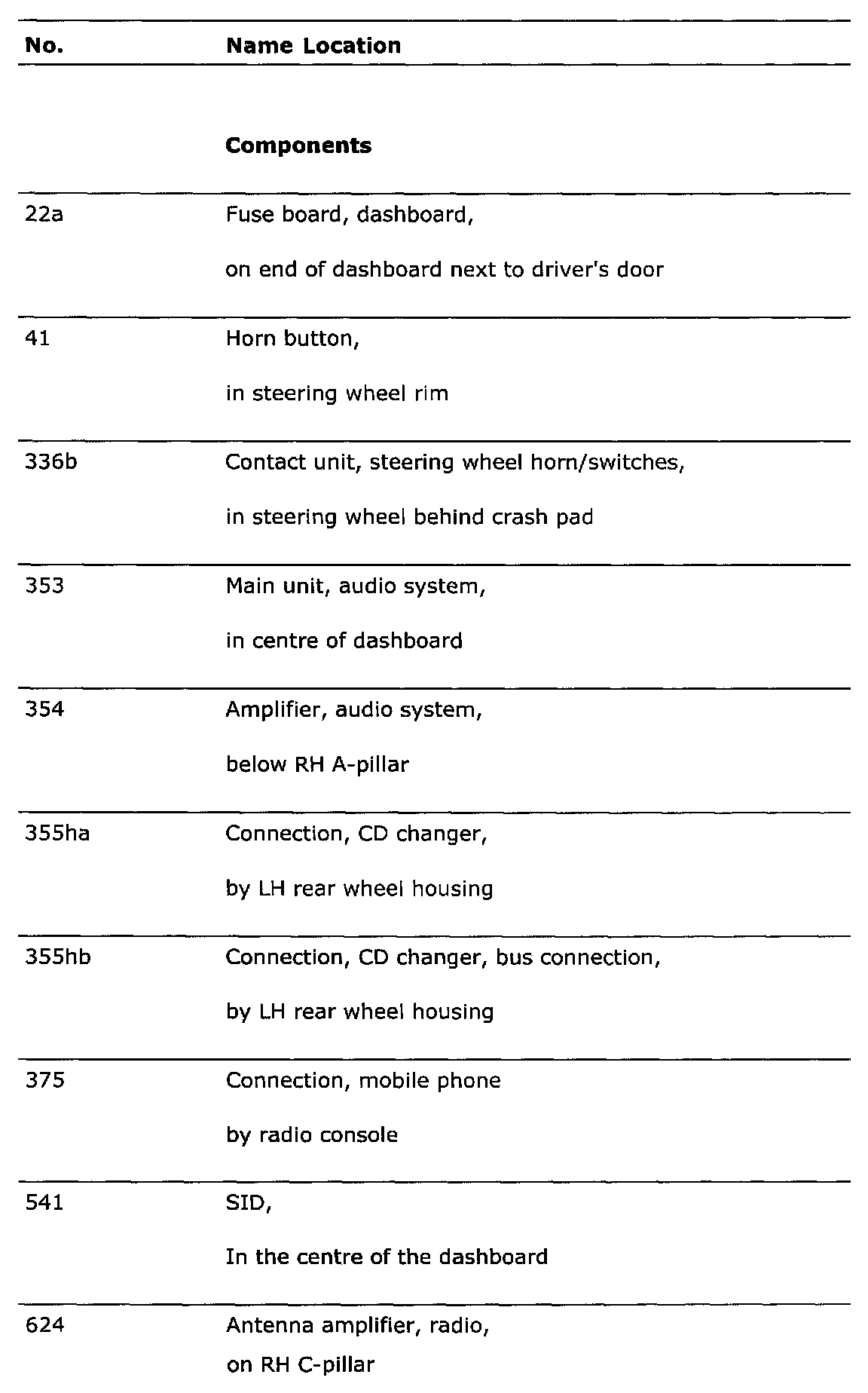

List of components


Part 1:






Part 2:






Part 3:
