Trionic T7 (Part 3/3)

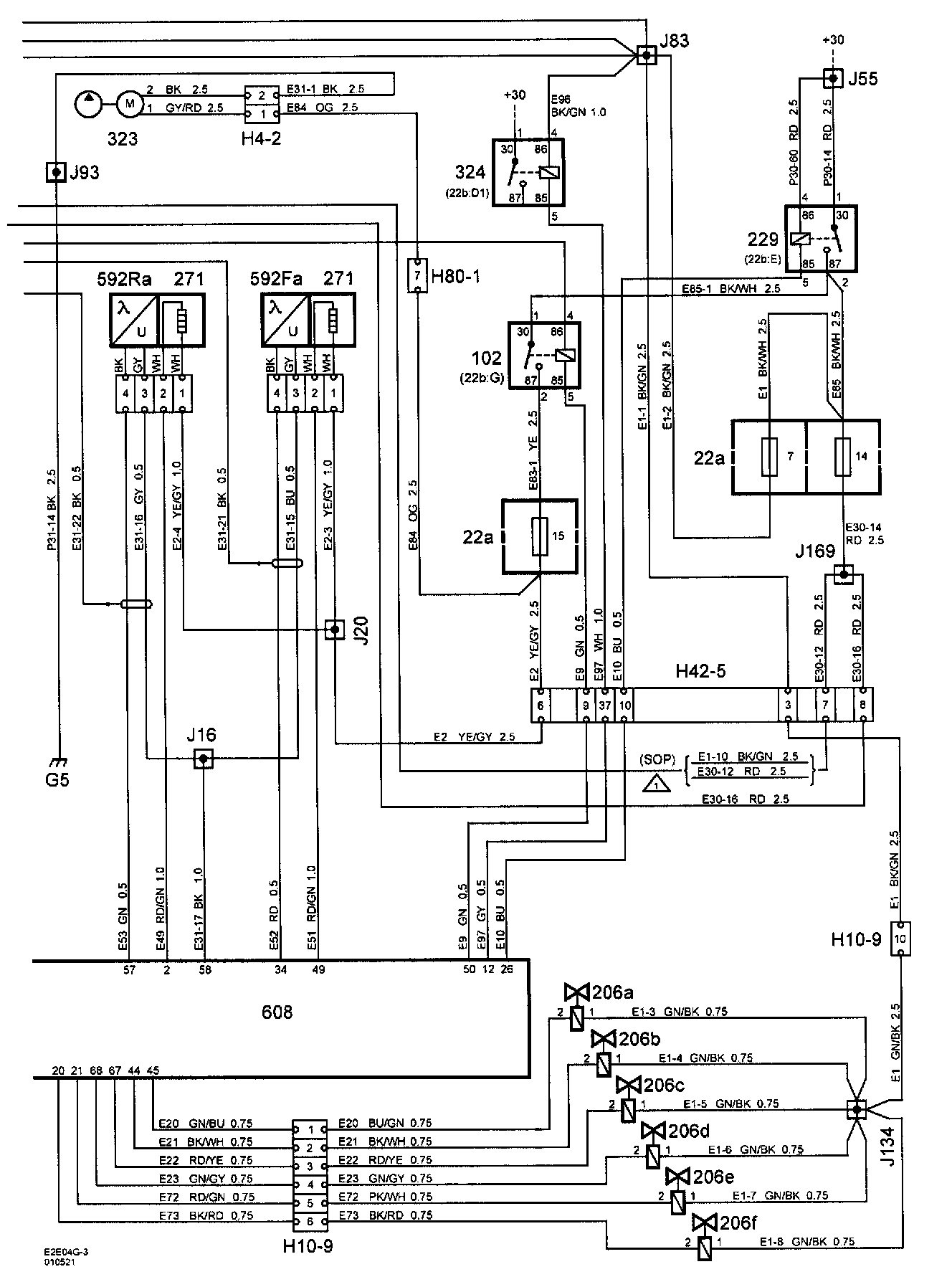

Trionic T7 Engine Management System V6 (Part 3/3)

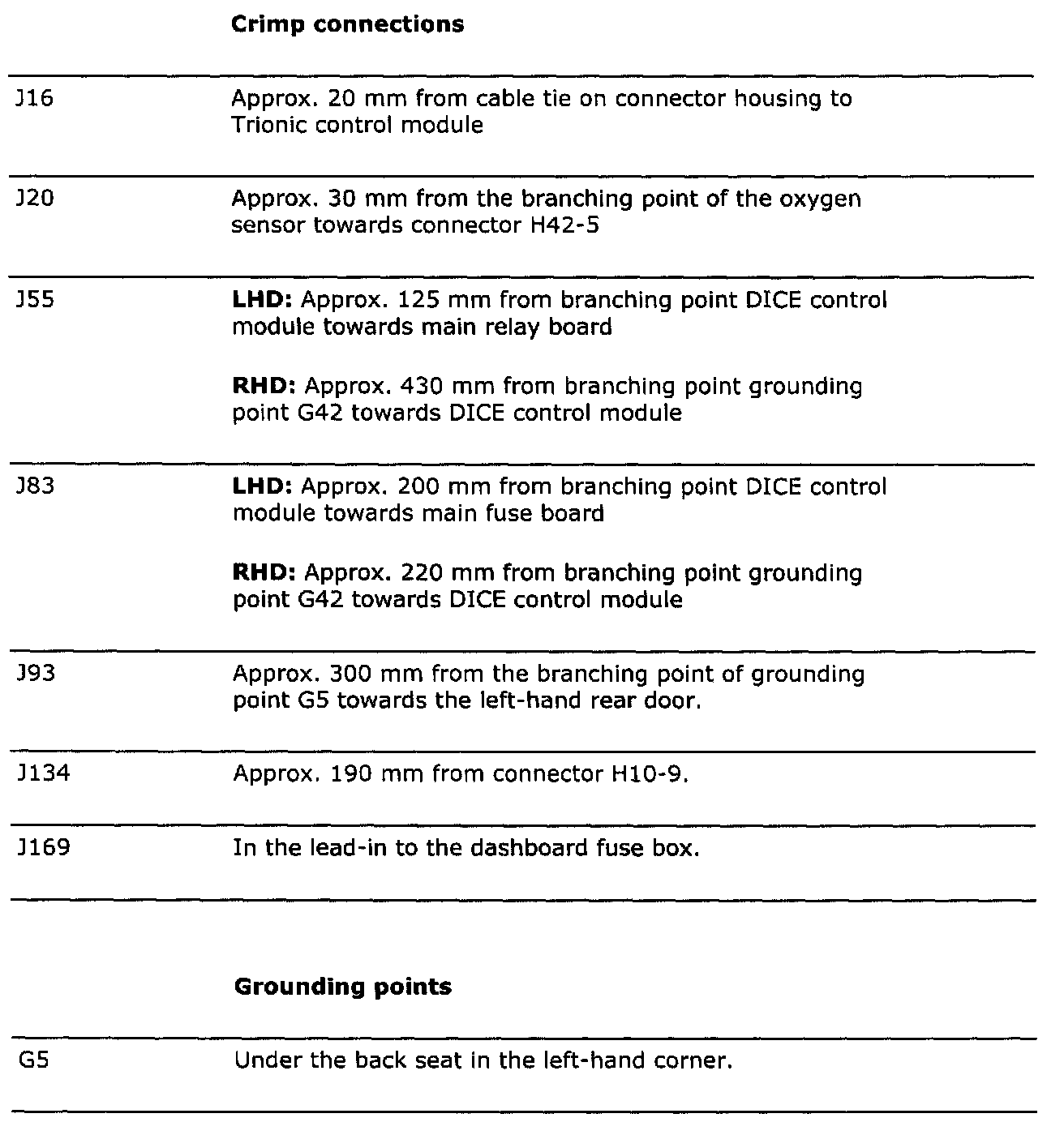

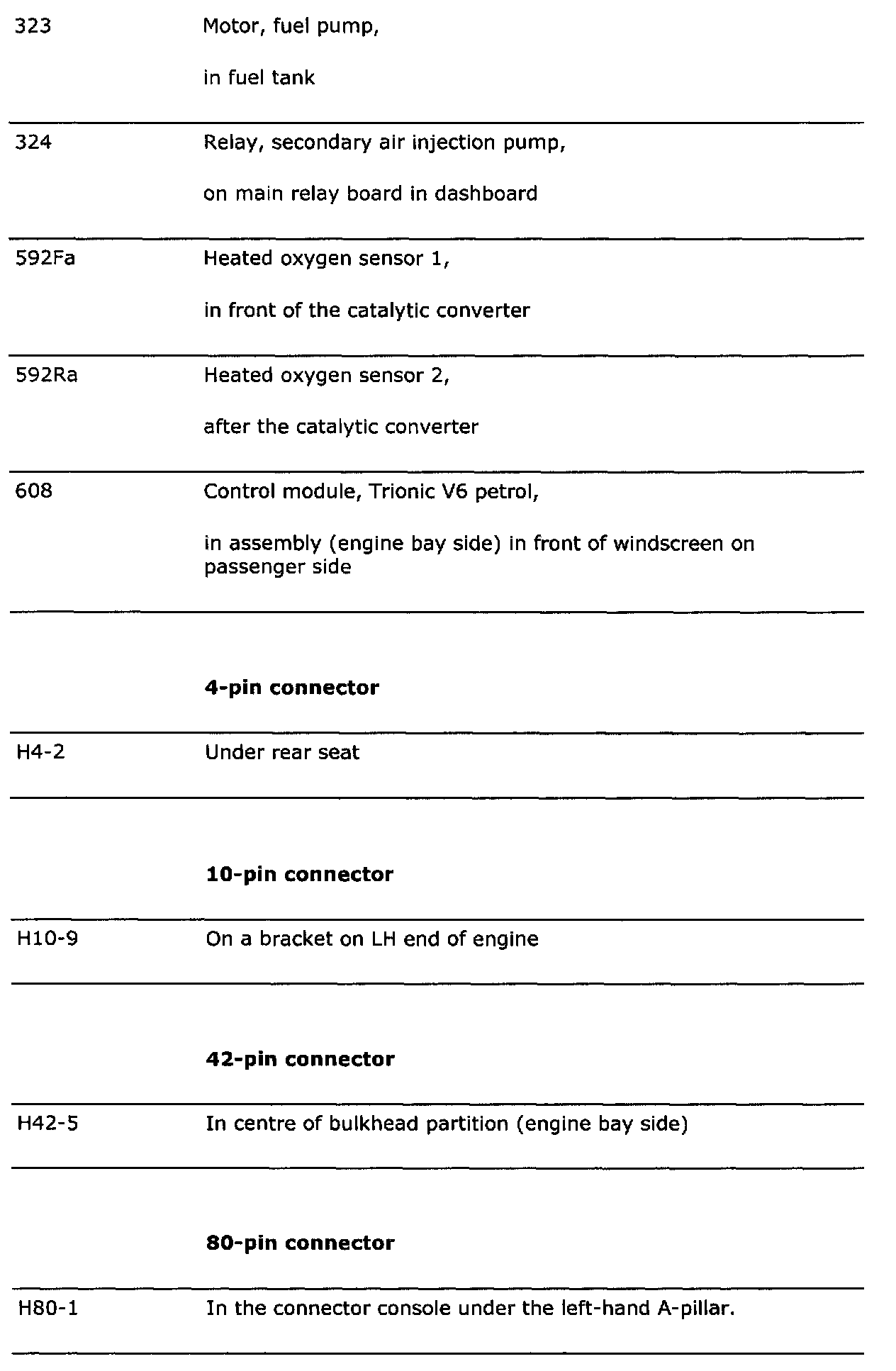

List of components


Part 1:






Part 2:






Part 3:
