Home >> Saab >> 2001 >> 9-5 SE (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lighting and Reading Lamps

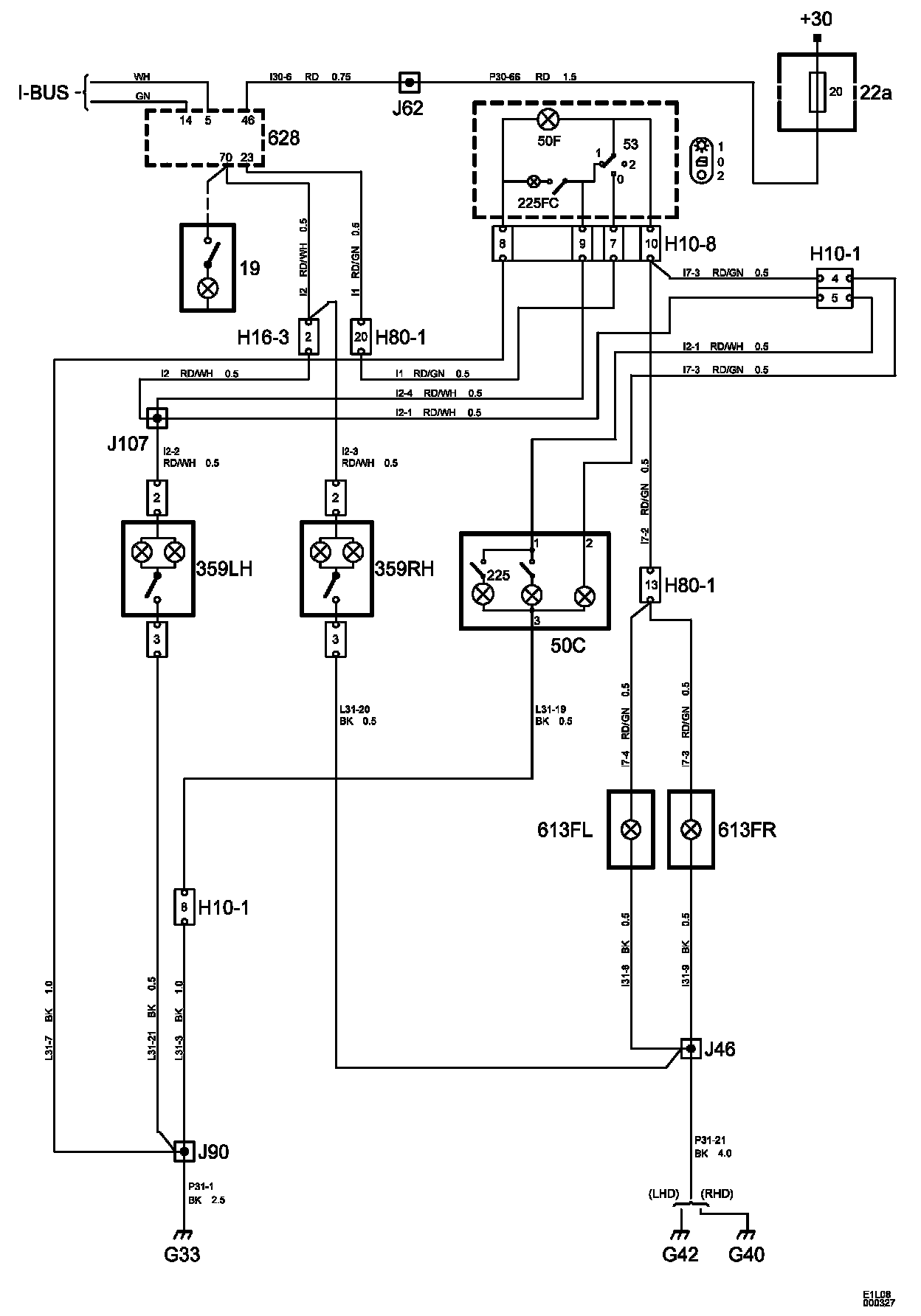

Interior Lighting and Reading Lamps




Interior Lighting And Reading Lamps

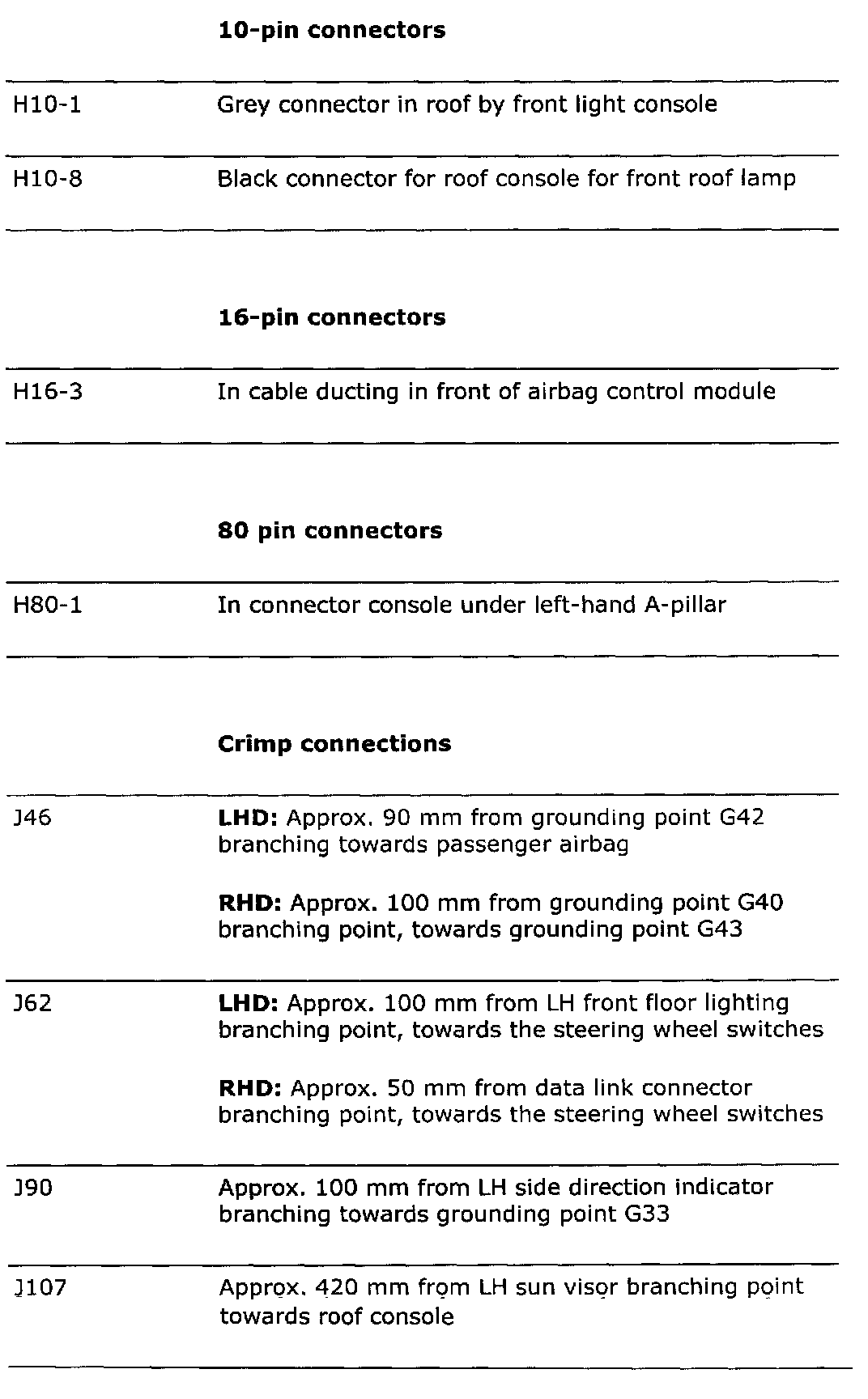

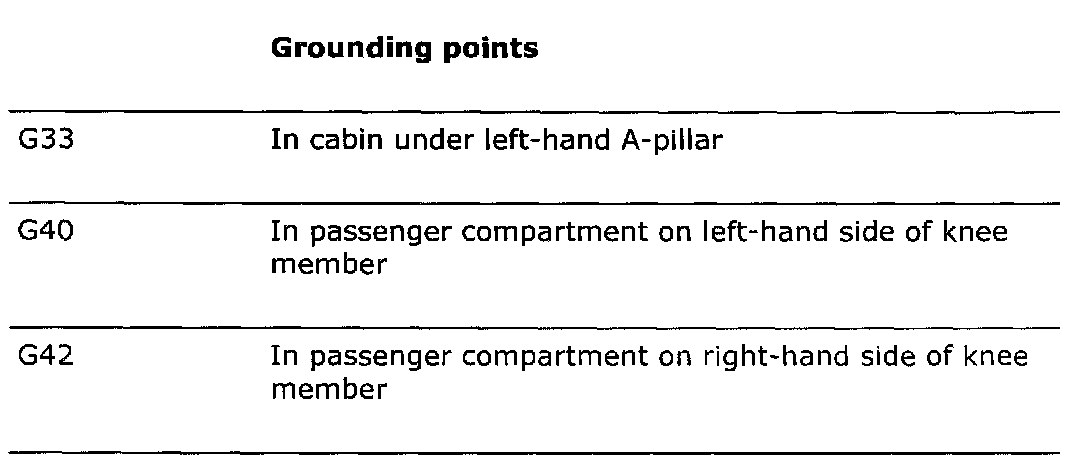

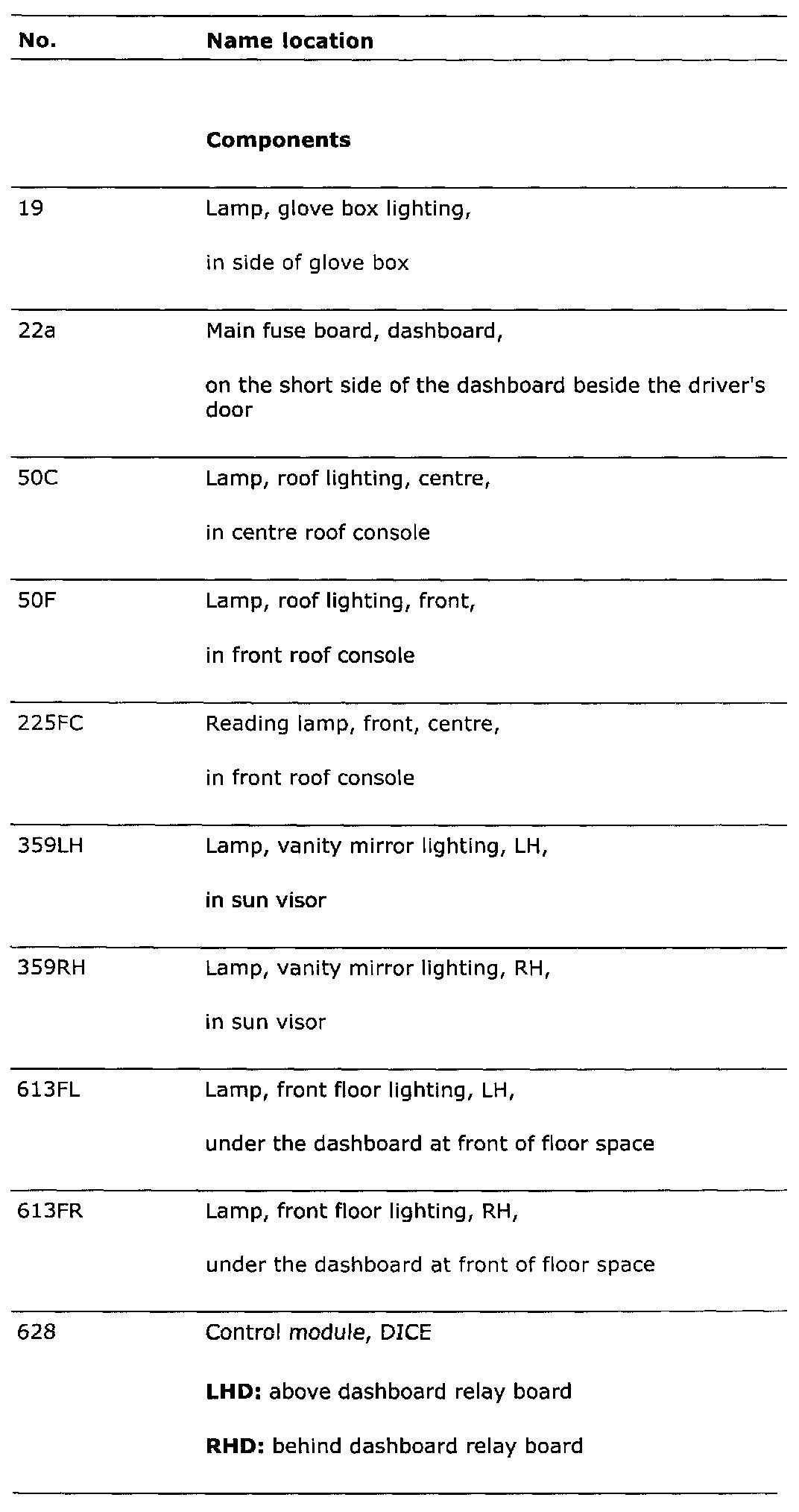

List of components


Part 1:






Part 2:






Part 3:
