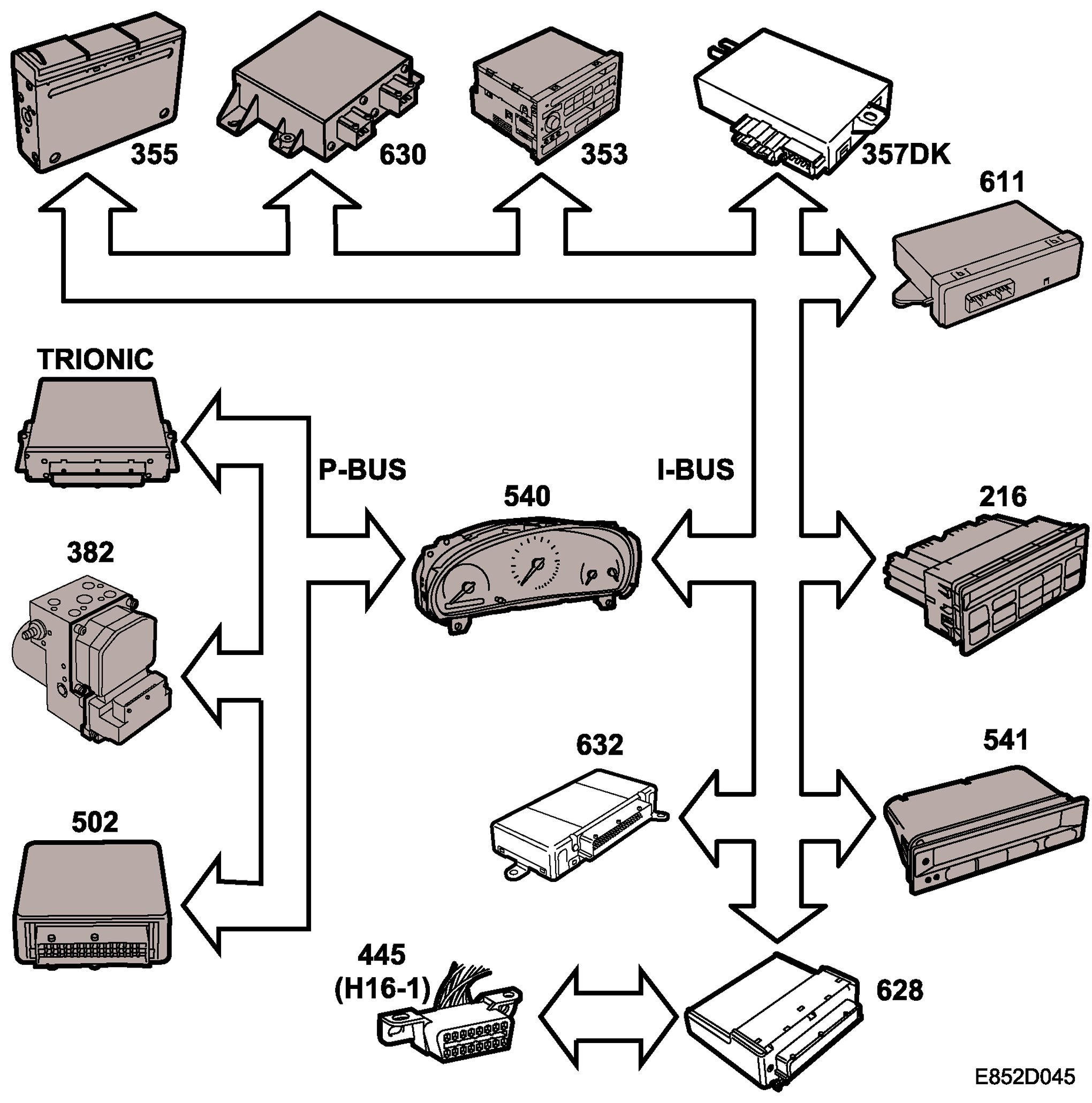

Control Module Inputs, I-bus







- Driver's door (open/closed) from TWICE (632).
- Passenger door (open/closed) from TWICE (632).
- Power supply +54 circuit from DICE (628).
- Diagnostic communication from DICE (628).
