Interior Rear-View Mirror With Automatic Antidazzle Function

Interior Rear-view Mirror With Automatic Antidazzle Function

To remove

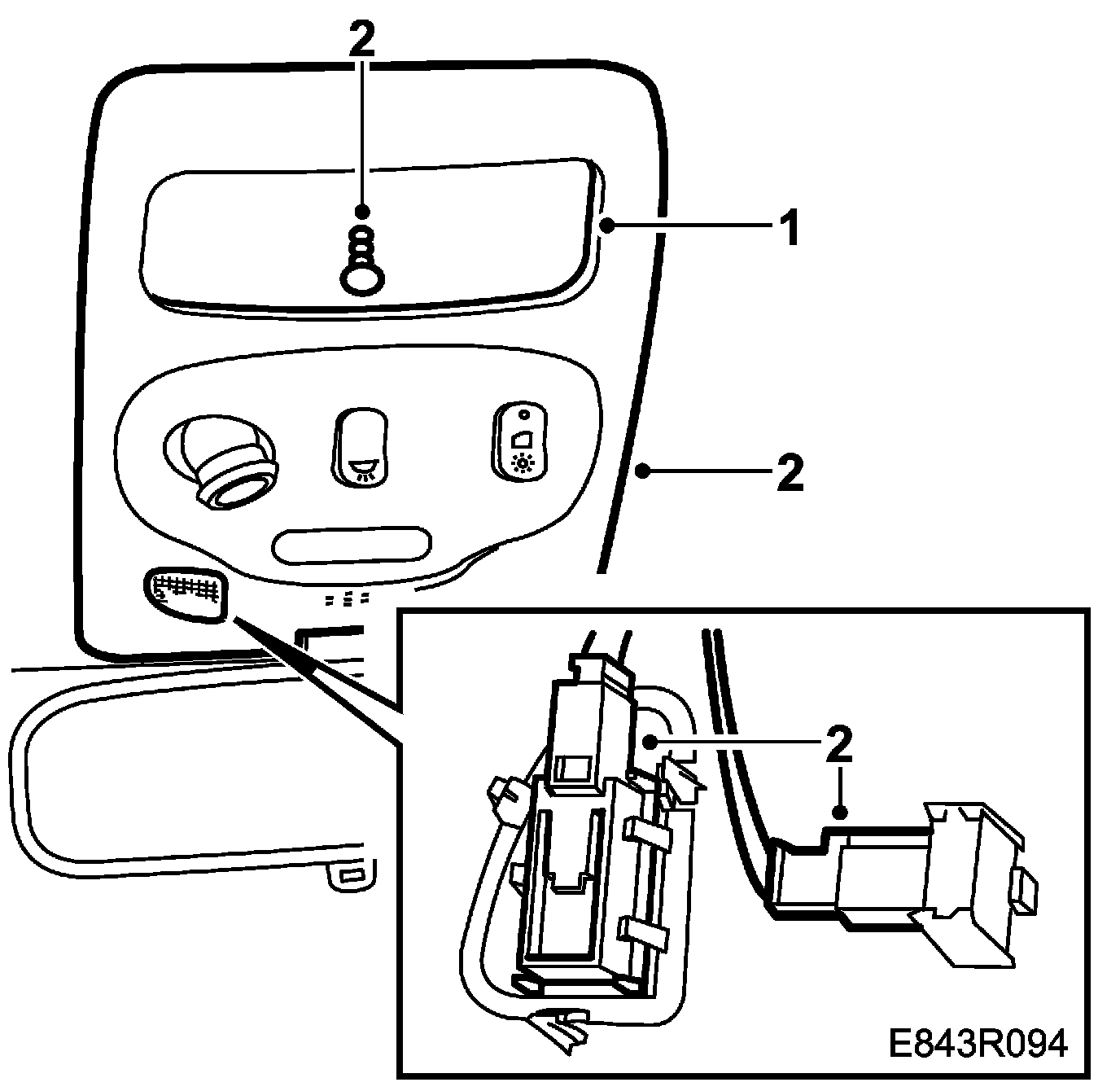

1. Remove the lamp housing.







2. Loosen the screw and remove the cover. Unplug the connectors for the temperature sensor, ACC and mobile phone microphone.
3. Unplug the rear-view mirror connector.

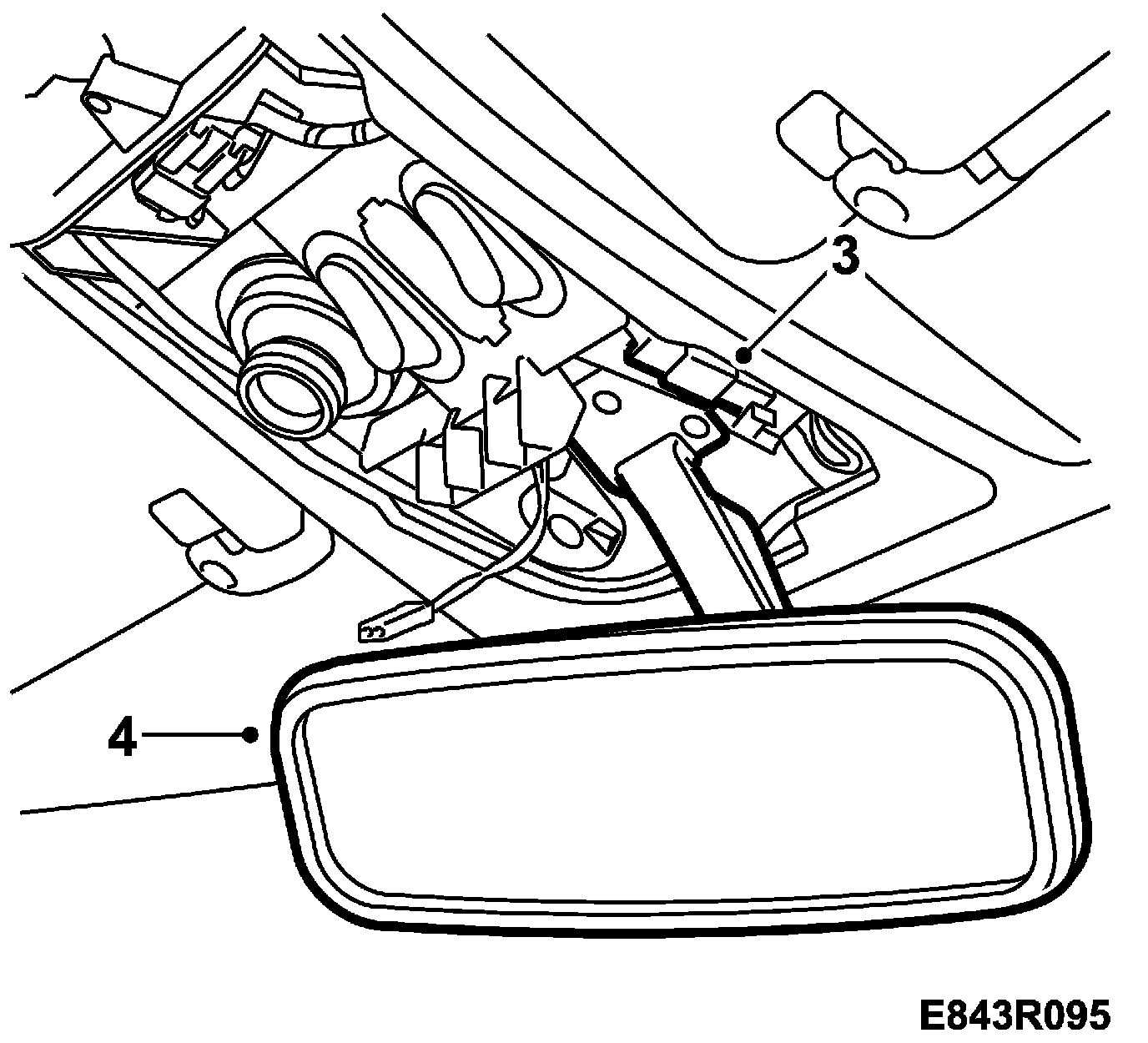

4. Take out the retaining screws and remove the mirror.

To fit







1. Position the rear-view mirror and fit the screws. Plug in the connector.
2. Plug in the connectors for the temperature sensor and microphone.

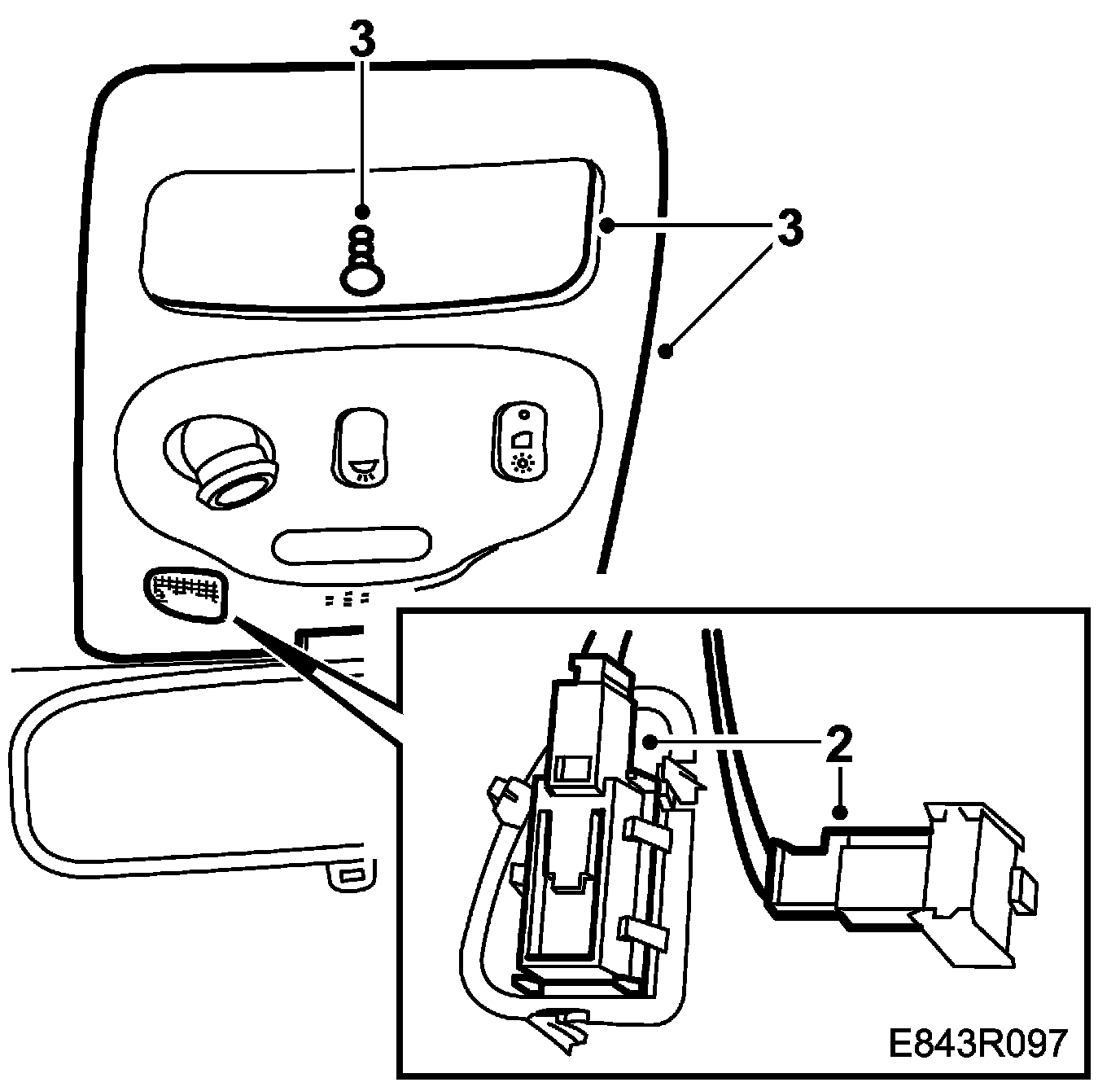

3. Fit the cover and lamp lens.
