Door Mirrors

Door Mirrors

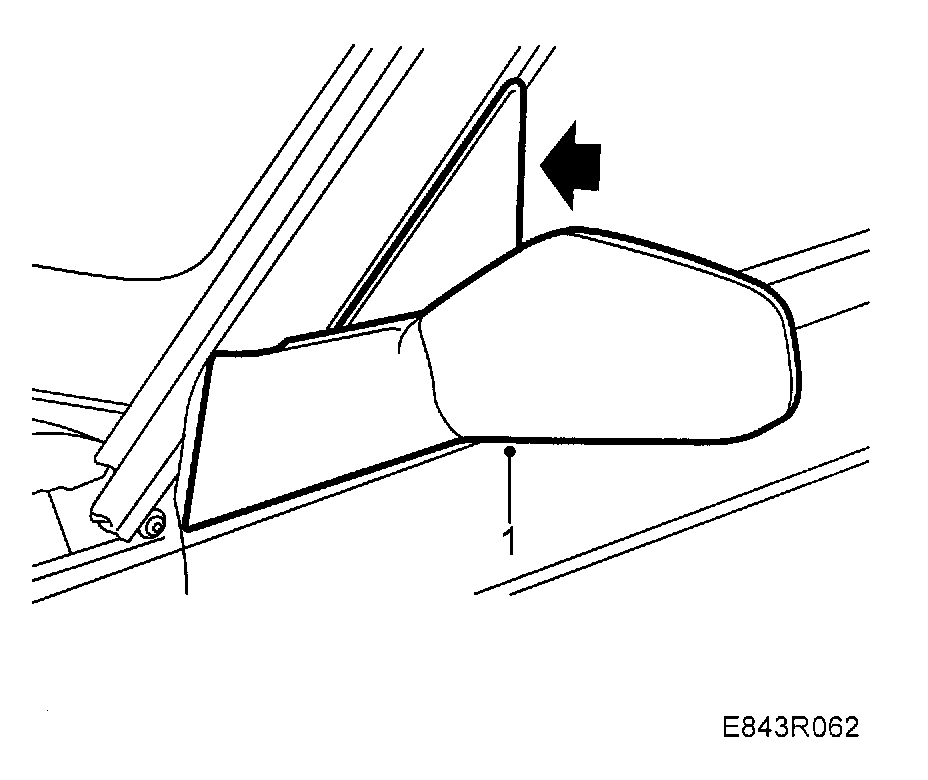

To remove
1. Remove the weatherstrip on the inside of the door frame.







2. Unplug the connector
3. Remove the four screws securing the door mirror. Be careful not to allow the screws to fall into the door.







4. Unhook the door mirror.

To fit







1. Hook on the door mirror to the door.







2. Screw on the door mirror with the four screws. Tighten them alternately and make sure the gasket is positioned correctly.
3. Plug in the connector.
4. Refit the cover on the inside of the door frame.
