Body and Frame: Description and Operation: Overview

Overview

Overview:

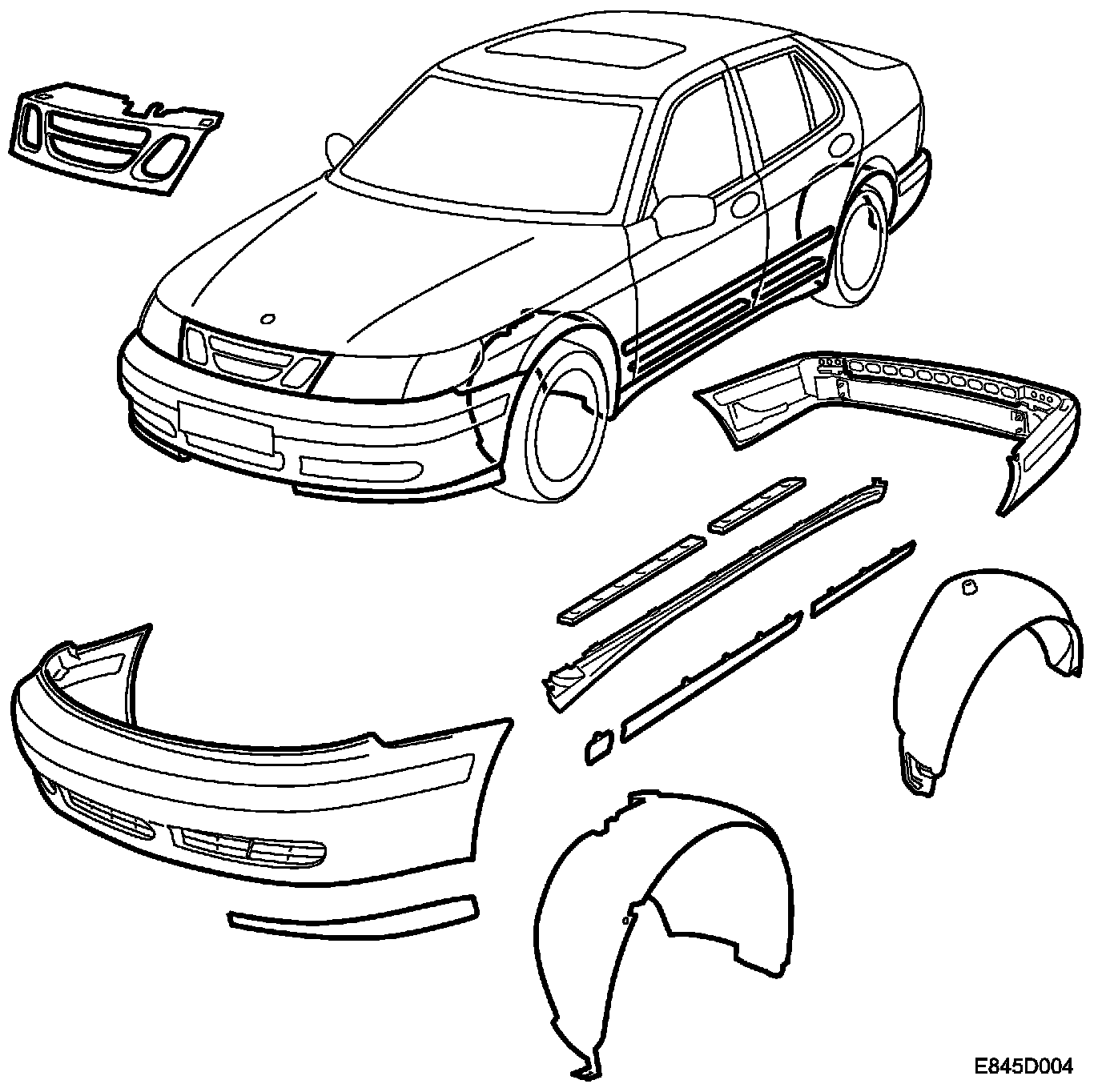

Brief Description

Front bumper

The front bumper consists of a cellular plastic core and an outer shell of painted plastic.

Rear bumper

The rear bumper consists of an aluminium rail, a cellular plastic core and a painted plastic shell. On 5D models the upper part of the bumper is black and separately replaceable.

Front spoiler

The front spoiler consists of left and right-hand details screwed to the bumper's outer protective shell.

A solid-cast sports version of the front spoiler is available as an option/accessory.

Rear spoiler

A rear spoiler is available as an option/accessory for the 9-5 4D and 5D. They can be mounted on the boot lid or tailgate respectively.

Emblems

The emblems on the bonnet, wings and boot lid/tailgate are attached by means of double-sided adhesive tape.

Protective mouldings

Protective plastic mouldings are mounted on the sides of the car, in the door bottoms and on the sills. They are fastened to the body by means of screws and clips.

Wing liners, front and rear

The front and rear wing liners protect the body from dirt and being chipped by stones. They are screwed to the body.
