Component Tests and General Diagnostics

Test Readings, Control Module Connections

Test Readings, Control Module Connections:

Scope
Nominal values and instructions for measuring voltages on the module are specified under the respective headings.







Remember
- Note the test conditions and use common sense when assessing the test result.
- The nominal values specified apply with the ignition in the ON position unless otherwise stated.
- First check that the control module has a power supply and is grounded. Then check all sensor inputs and signals from other systems.
- finally, check the outputs. Remember that the test results do not tell us whether or not the module is functioning properly.
- If any reading is not OK, consult the wiring diagram to trace the leads, connectors or components which should be checked more thoroughly.
- The specified test readings refer to those obtained with a calibrated Fluke 88/97.
- Test readings in % (+) and ms (+) show the pulse ratio and pulse duration of the signal. A test instrument capable of giving pulse ratio and pulse width readings must be used. The sign indicates a positive trigger pulse, TRIG+.

Control module connector

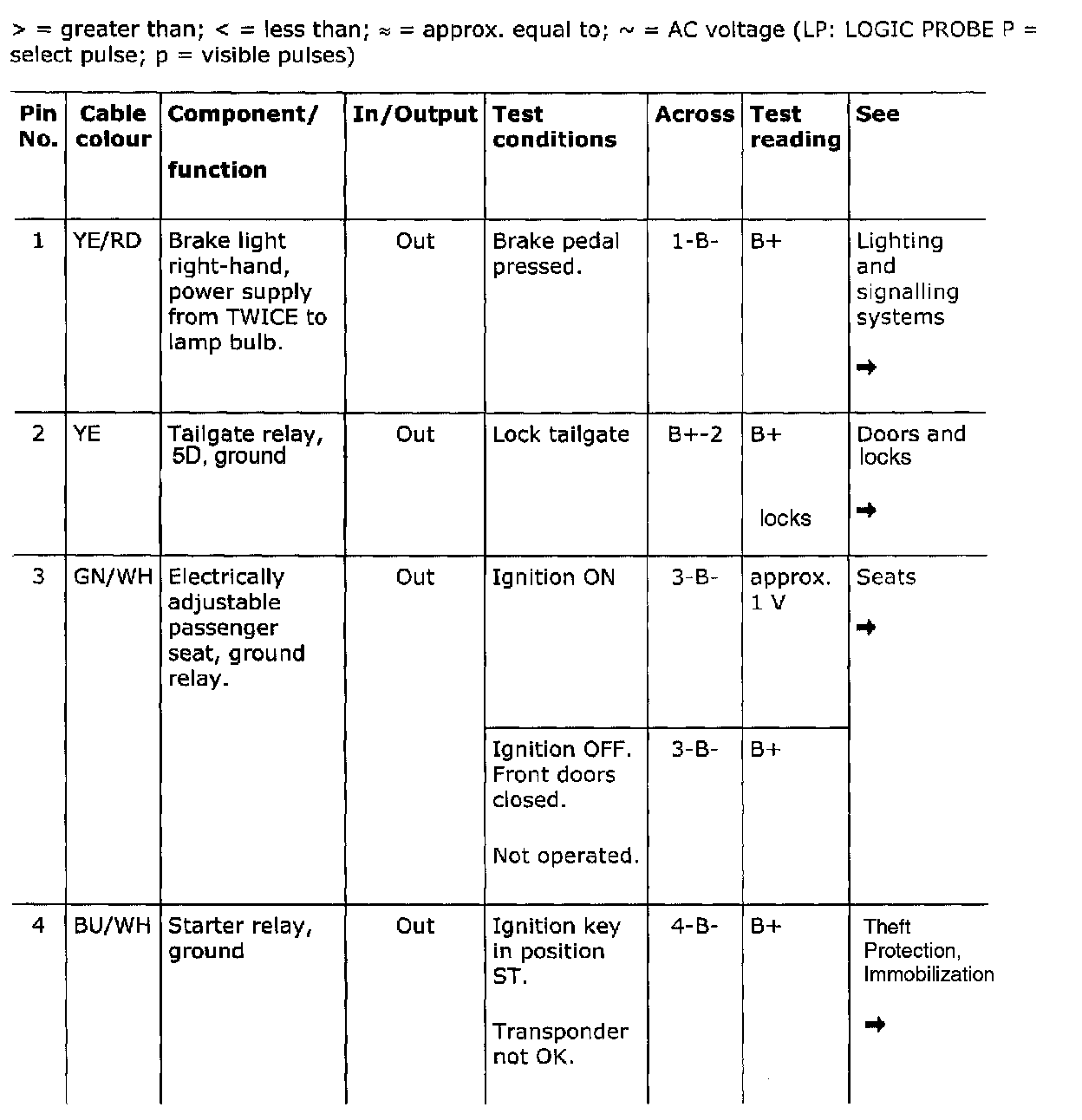

Pin 1 - 4:

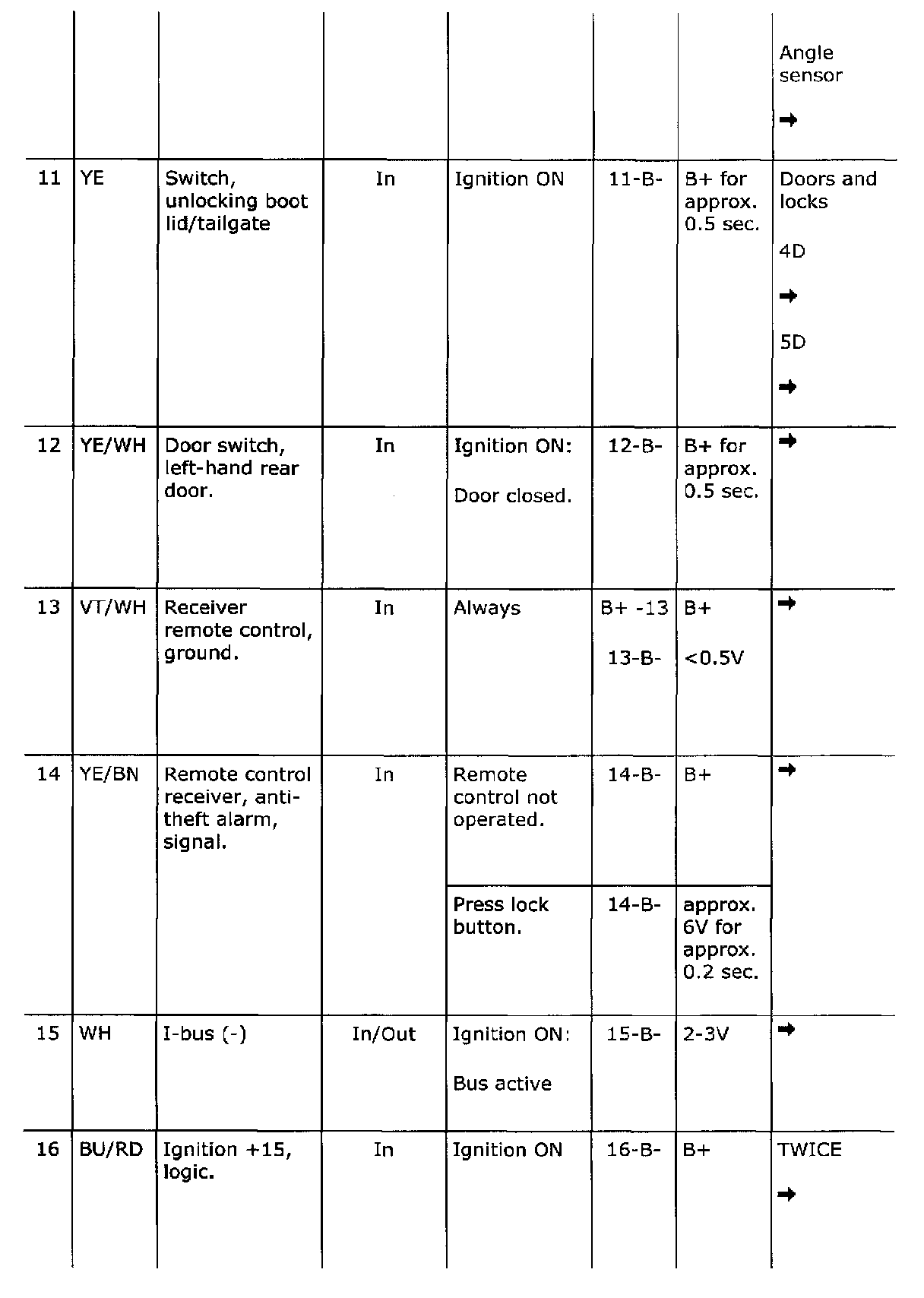

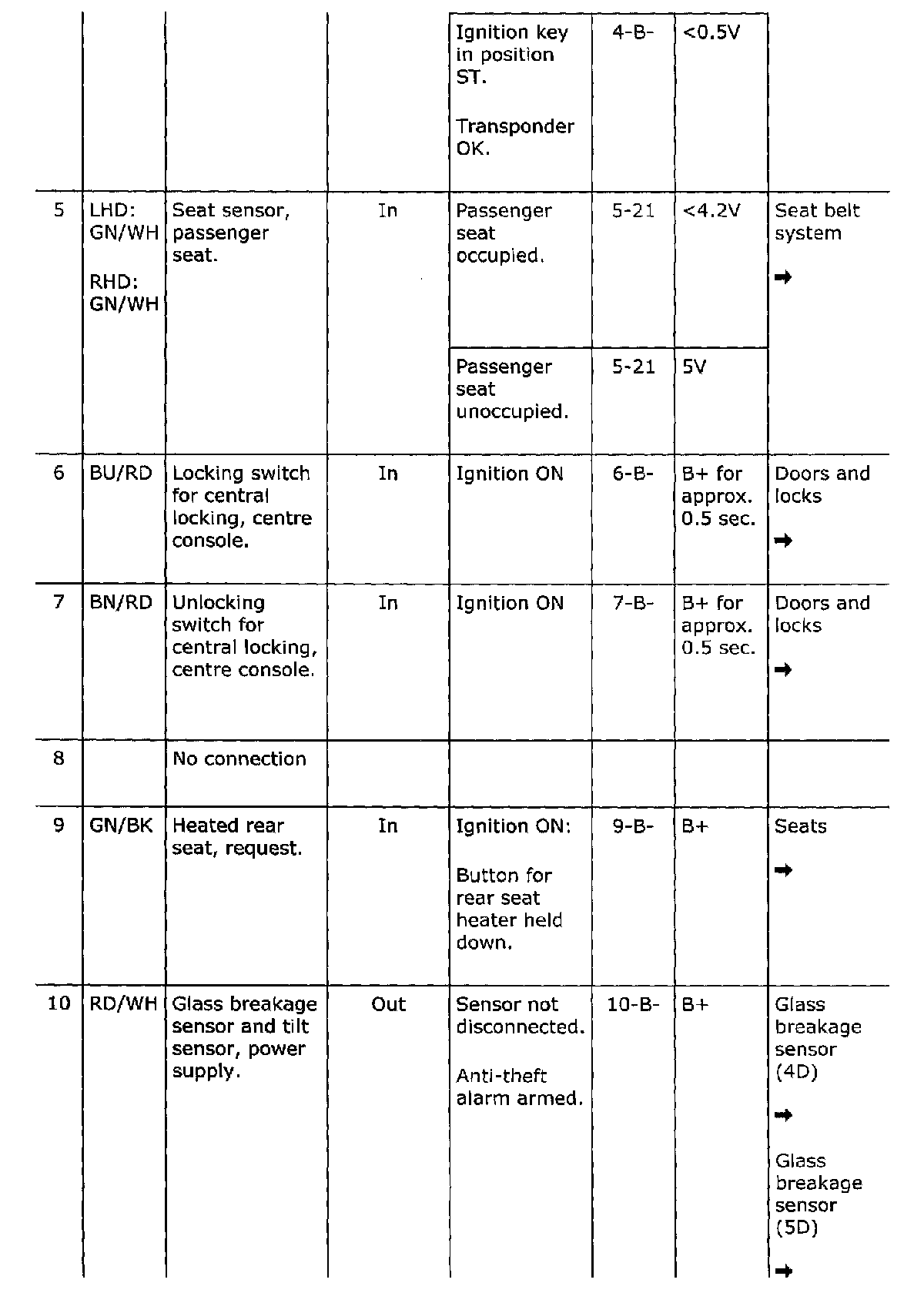

Pin 4 - 10:

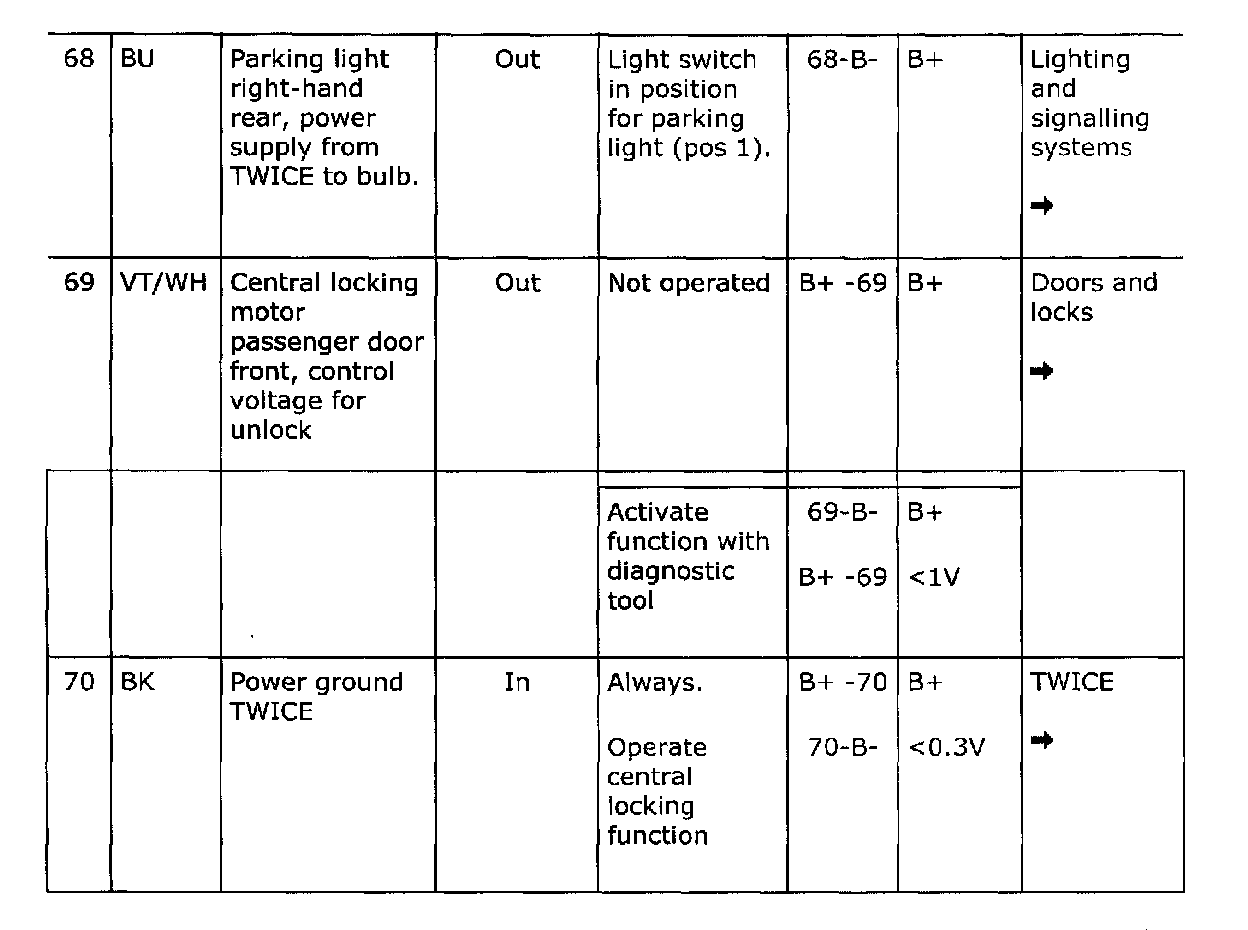

Pin 10 - 16:

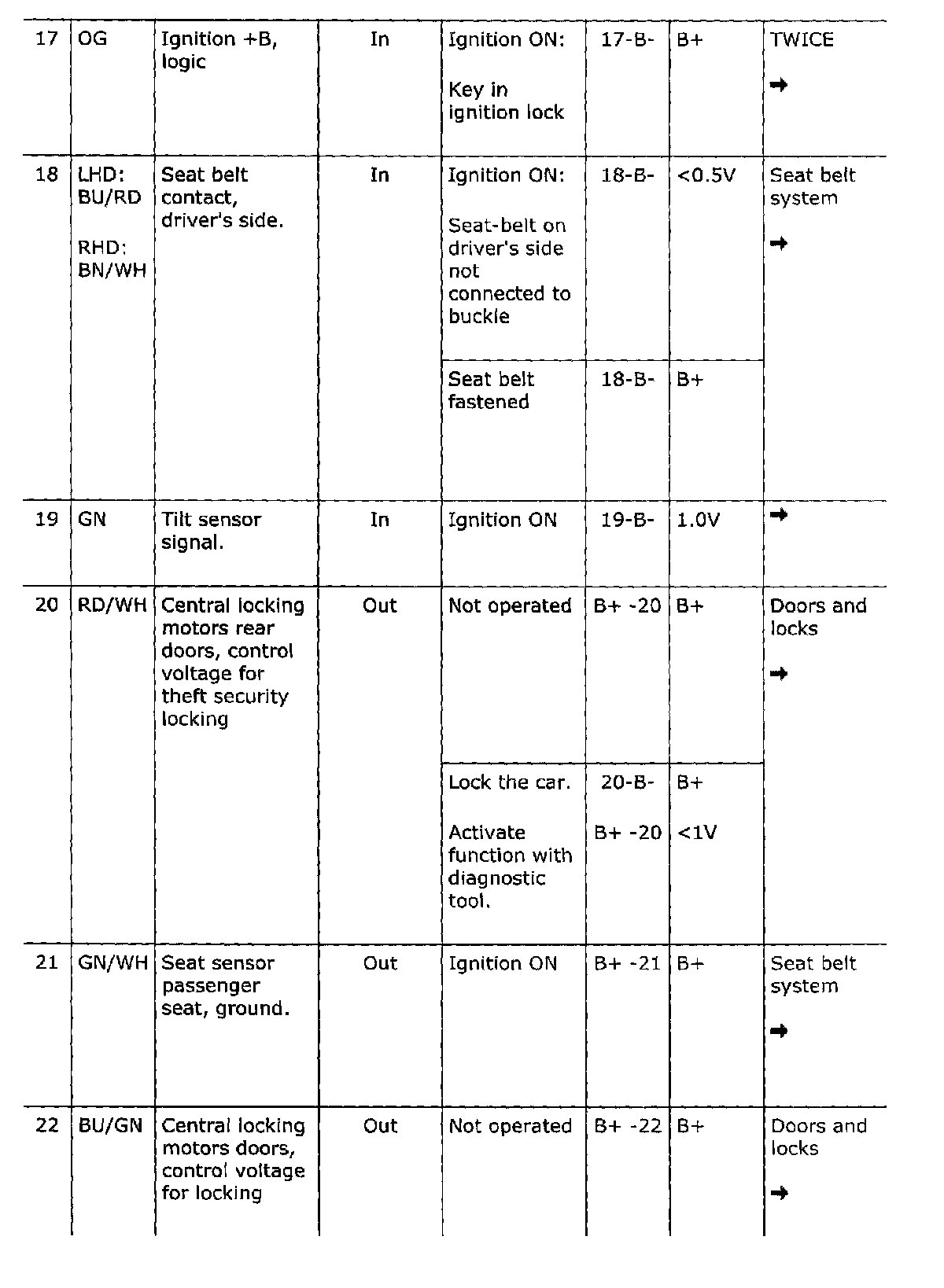

Pin 17 - 22:

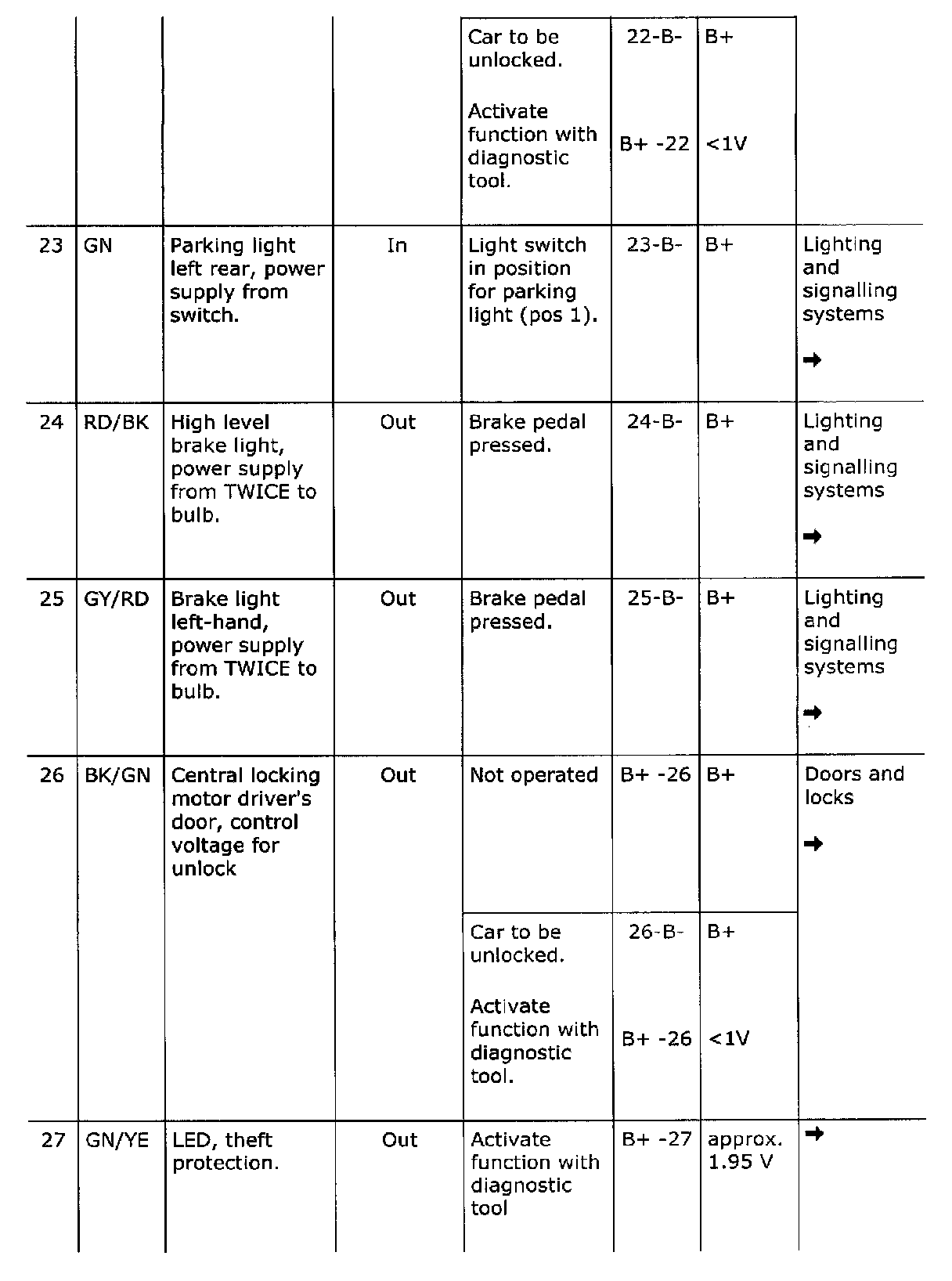

Pin 22 - 27:

Pin 28 - 35:

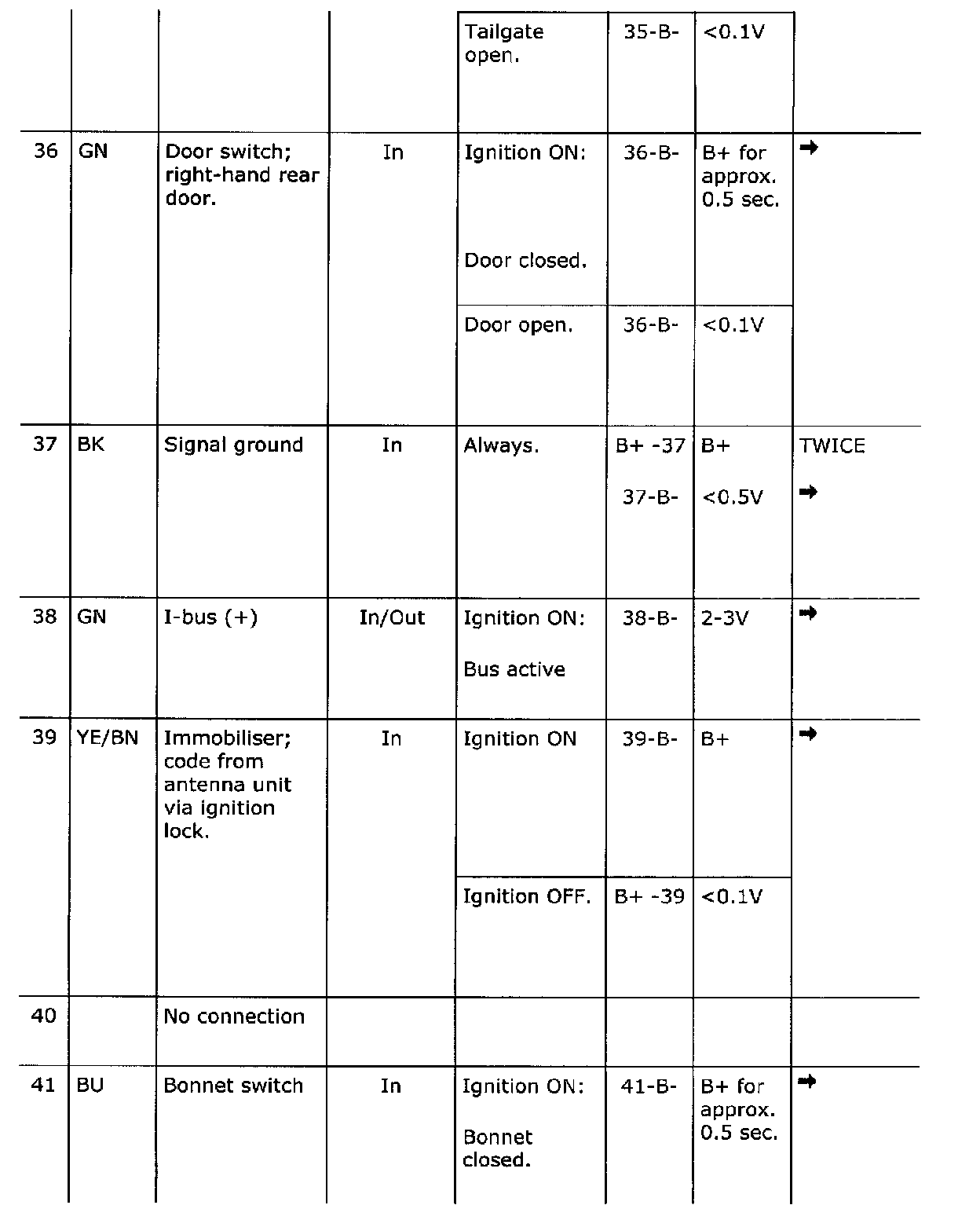

Pin 35 - 41:

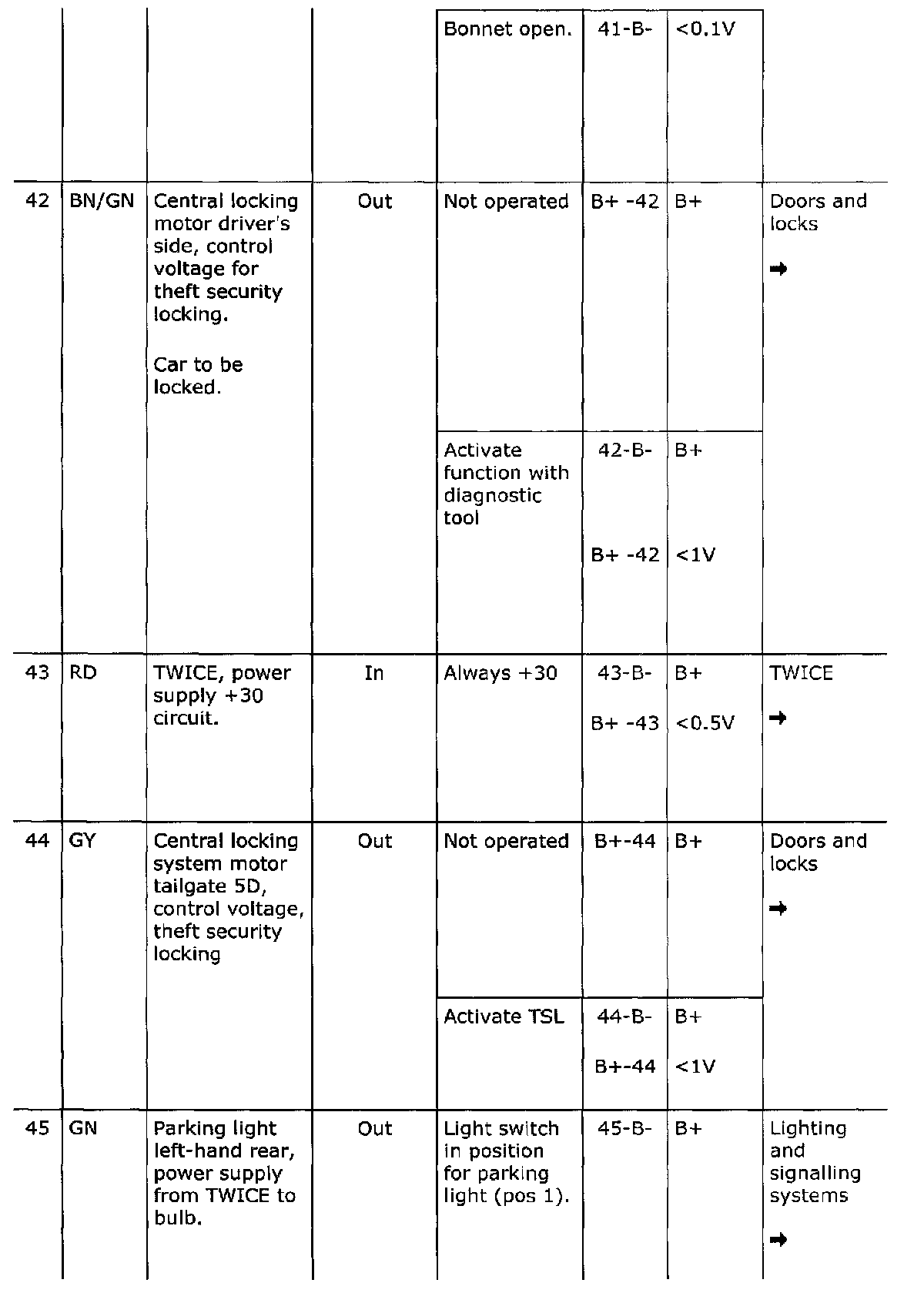

Pin 41 - 45:

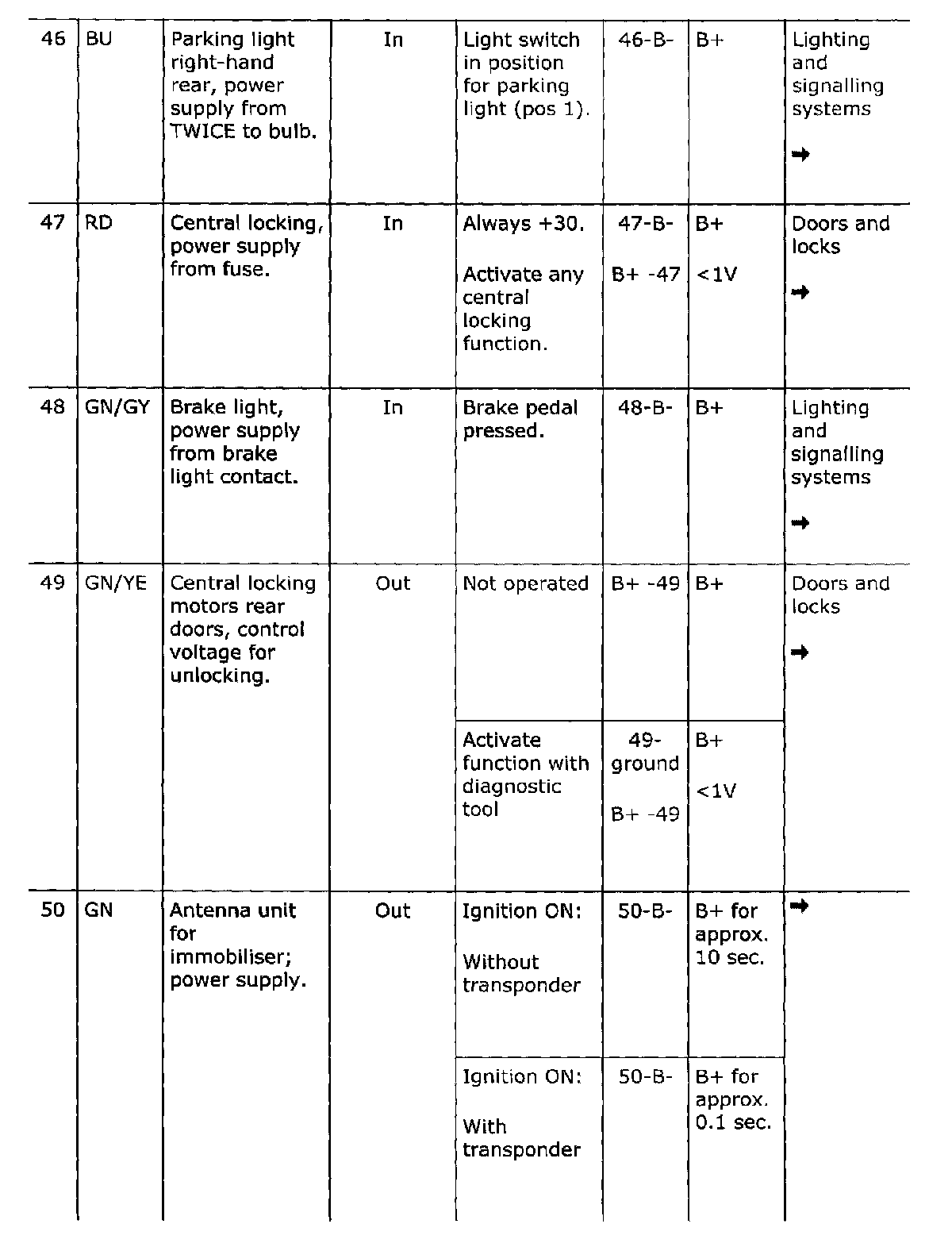

Pin 46 - 50:

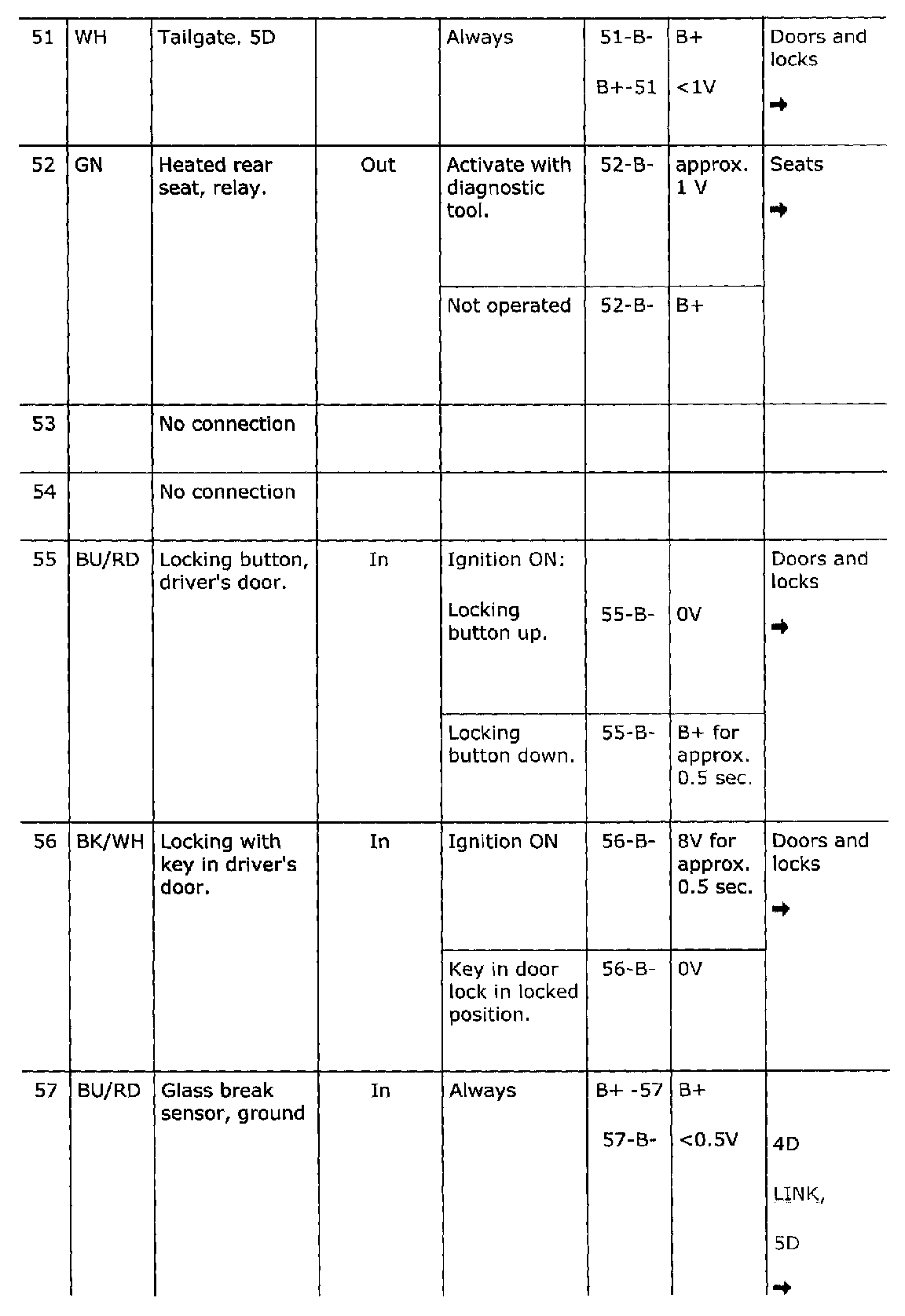

Pin 51 - 57:

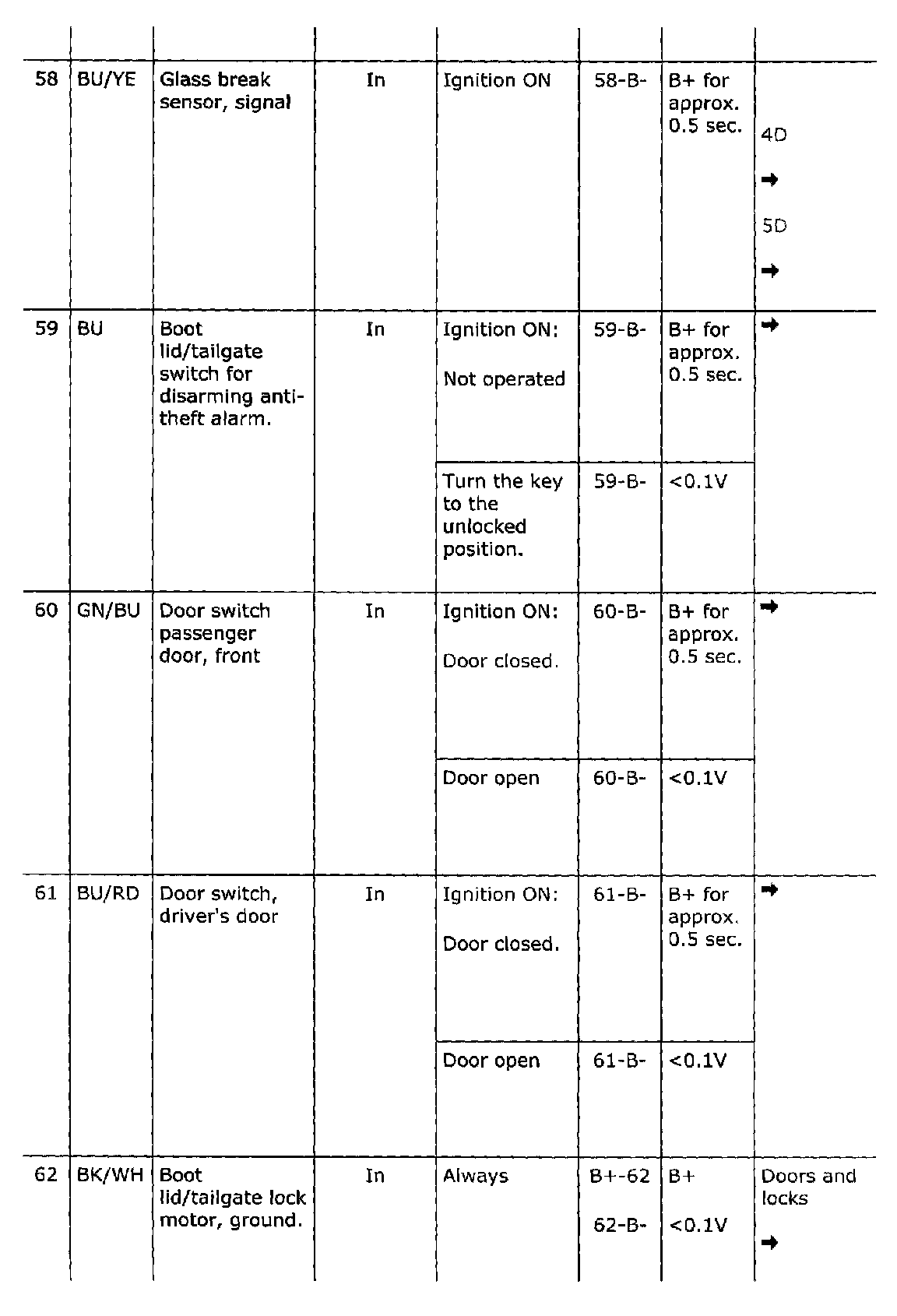

Pin 58 - 62:

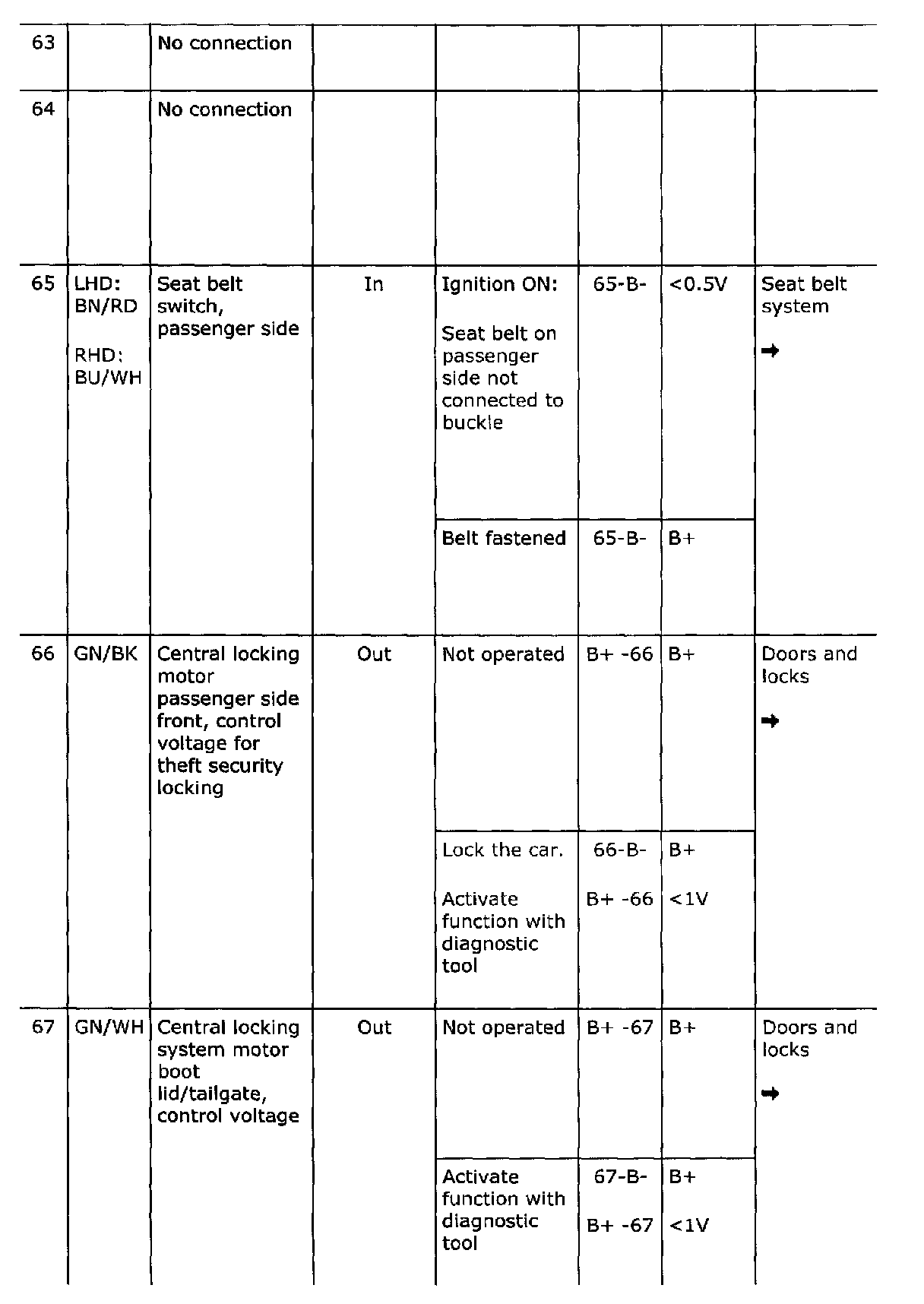

Pin 63 - 67:

Pin 68 - 70:
