Tilt Sensor - I

Tilt Sensor

To remove
1. Remove the front and rear sill moulding on the RH side.







2. Remove the bolts holding the RH front seat and lift it forward.
3. Remove the bottom clips on the B-pillar.
4. Remove the clip holding the front carpet.
5. Fold aside the rear carpet.

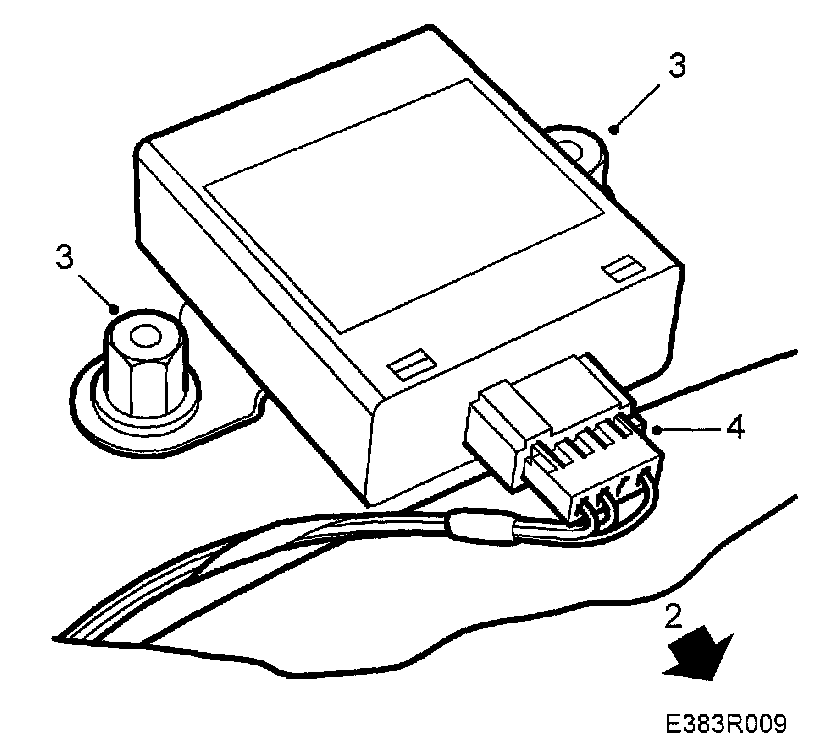

6. Undo the two plastic nuts holding the tilt sensor.
7. Unplug the connector and remove the sensor.

To fit
Fit in reverse order.
