Grounding Point G3




Grounding Point G3

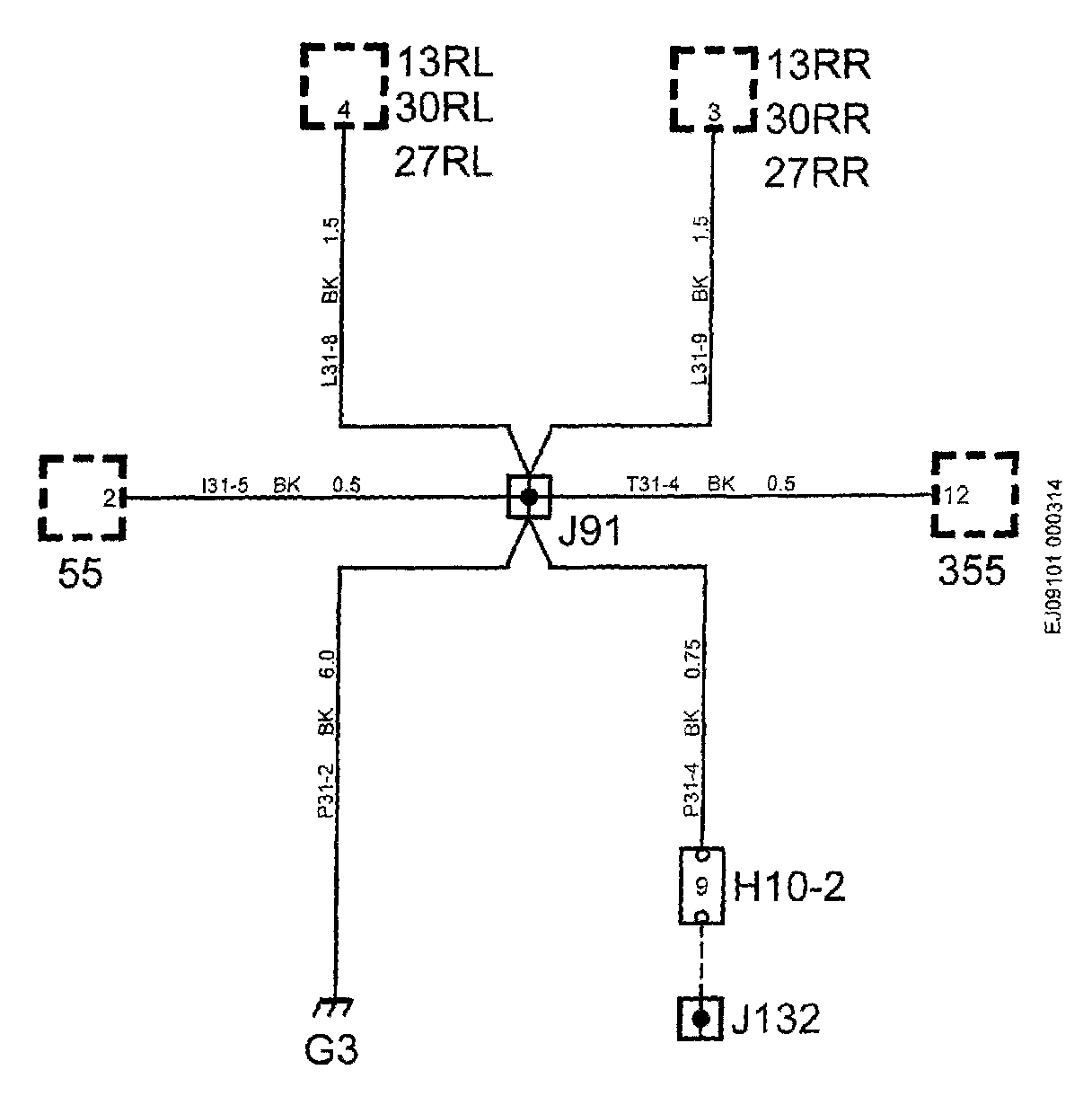

Grounding point G3:

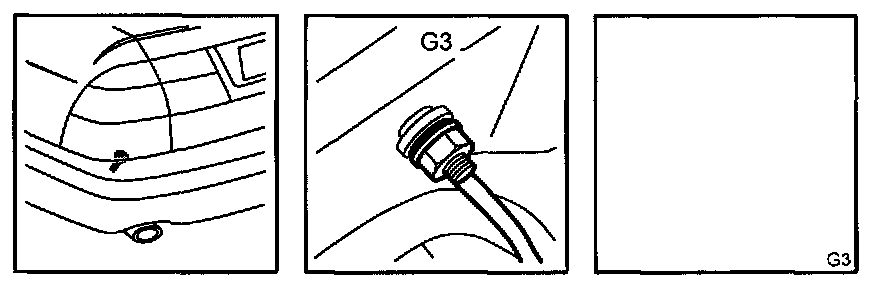

Location: In luggage compartment under LH light cluster.

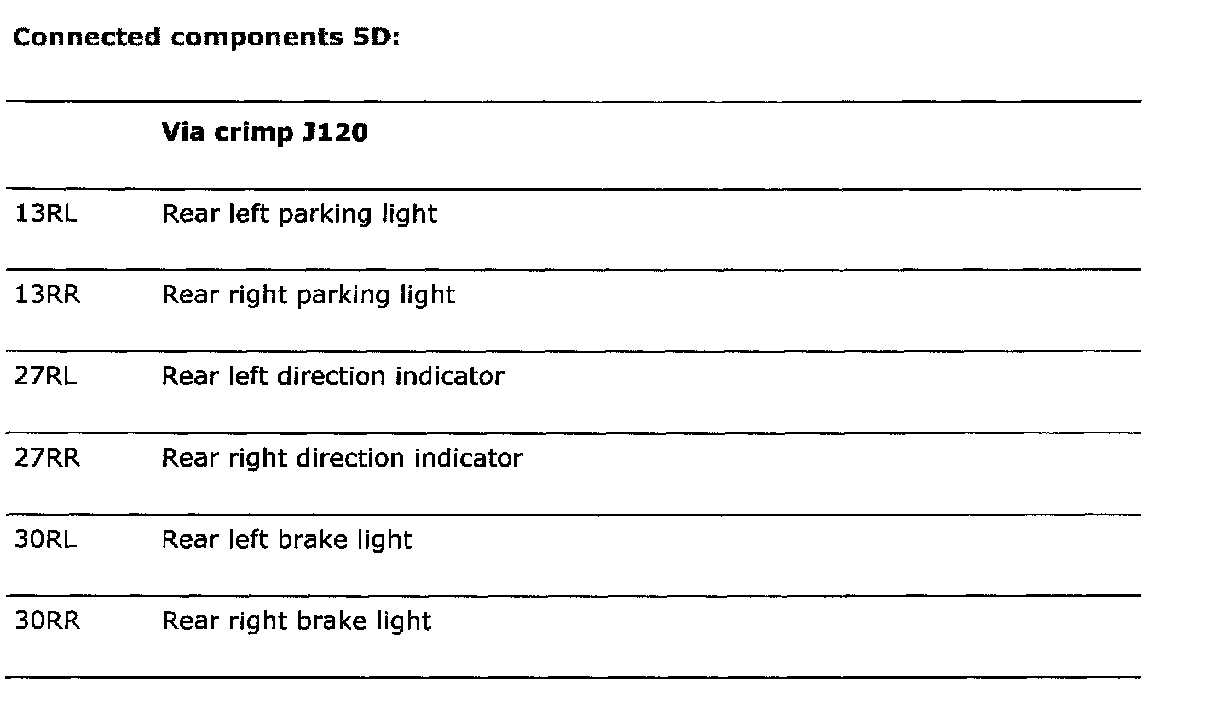

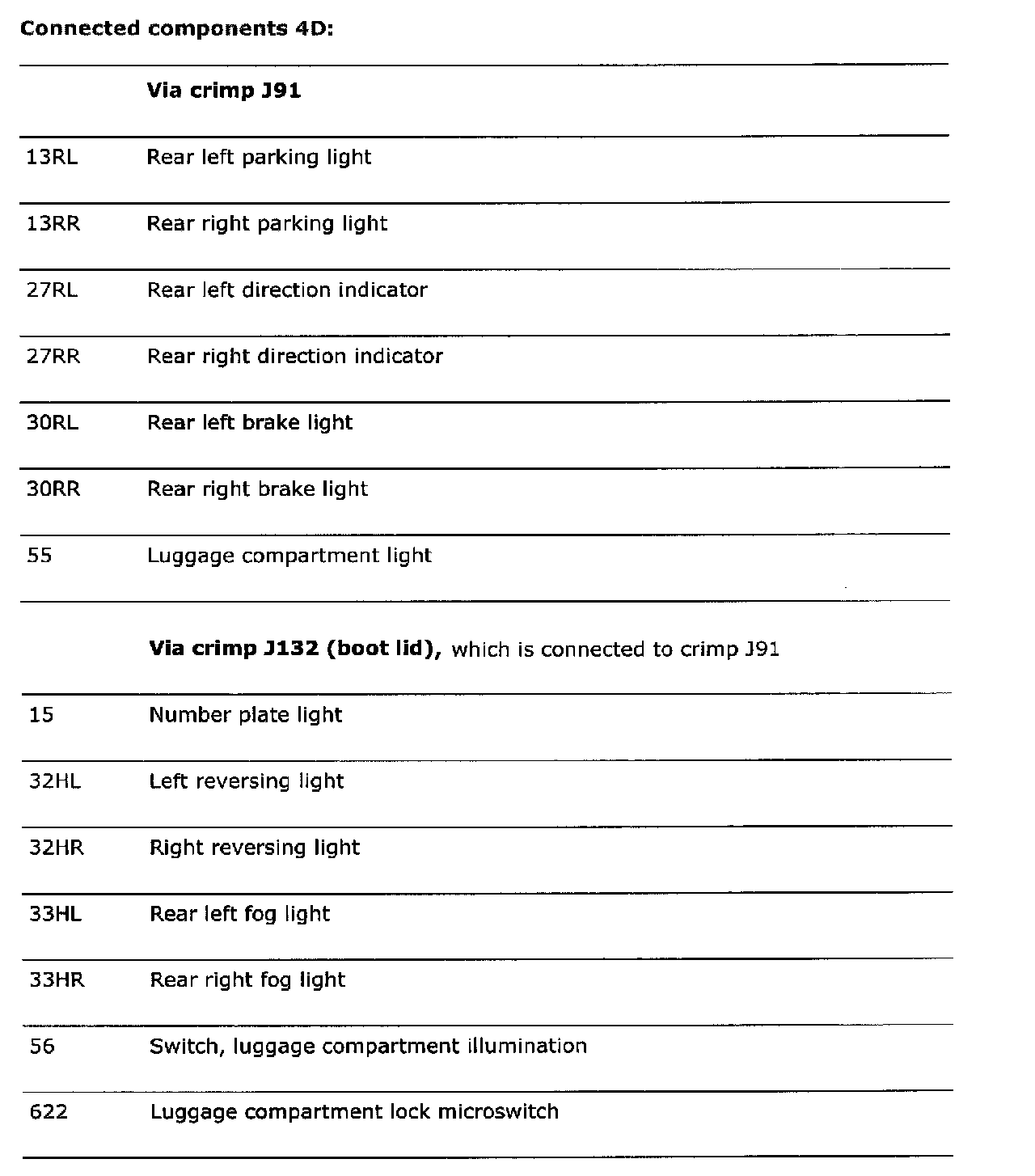

Part 1:






Part 2:
