System Overview, Seat Belt Warning

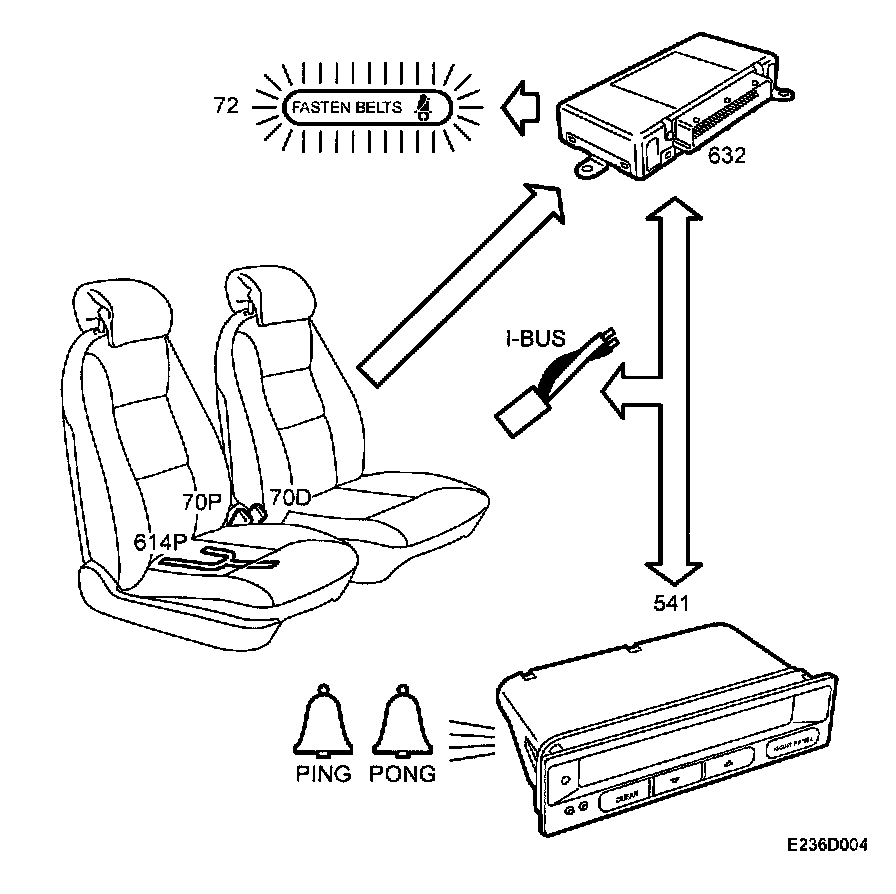

System overview, seat belt warning







- Control module, TWICE (632)
- Seat belt switch, driver (70D)
- Seat belt switch, passenger (70P)
- Sensor for occupied seat, front passenger (614P)
- Warning lamp, seat belt (72)
- SID (541)

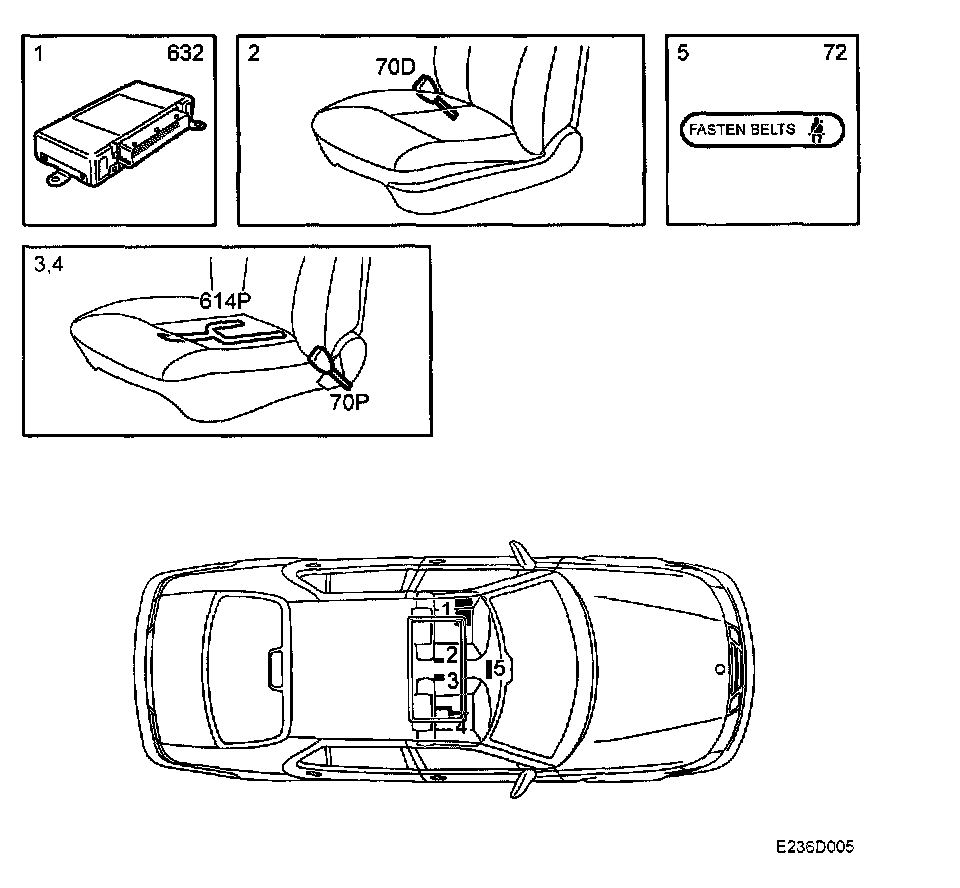

Main components, seat belt warning







1. Control module, TWICE (632)
2. Seat belt switch, driver (70D)
3. Seat belt switch, passenger front (70P)
4. Sensor for occupied seat, front passenger (614P)
5. Warning lamp, seat belt (72)
