System Overview, Electric Heated Rear Seat

System overview, electric heated rear seat







- Control module, TWICE (632)
- Switch, electrically heated rear seat (252R)
- Relay, electrically heated rear seat (511)
- Heating pad, rear seat (64RL, 64RR)
- Control module, DICE (628)
- SID (541)
- Temperature sensor, outdoor air (286)

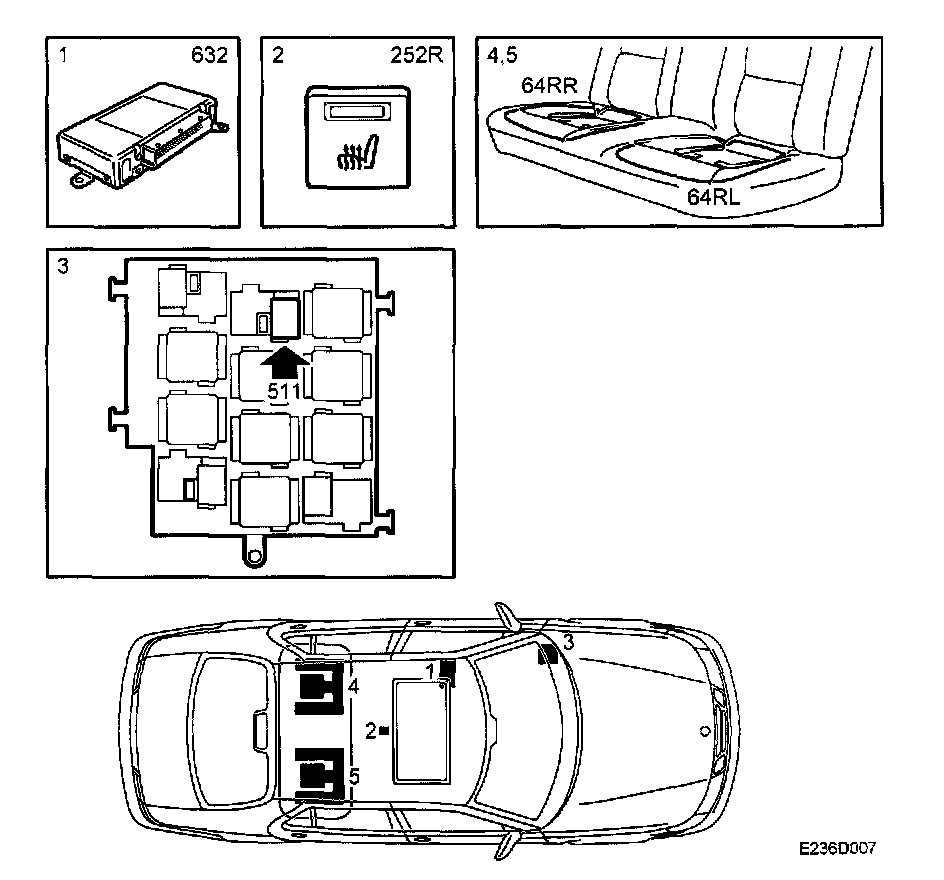

Main components, electric heated rear seat







1. Control module, TWICE (632)
2. Switch, electrically heated rear seat (252R)
3. Relay, electrically heated rear seat (511)
4. Heating pad, rear seat left (64RL)
5. Heating pad, rear seat right (64RR)
