System Overview, Central Locking Doors

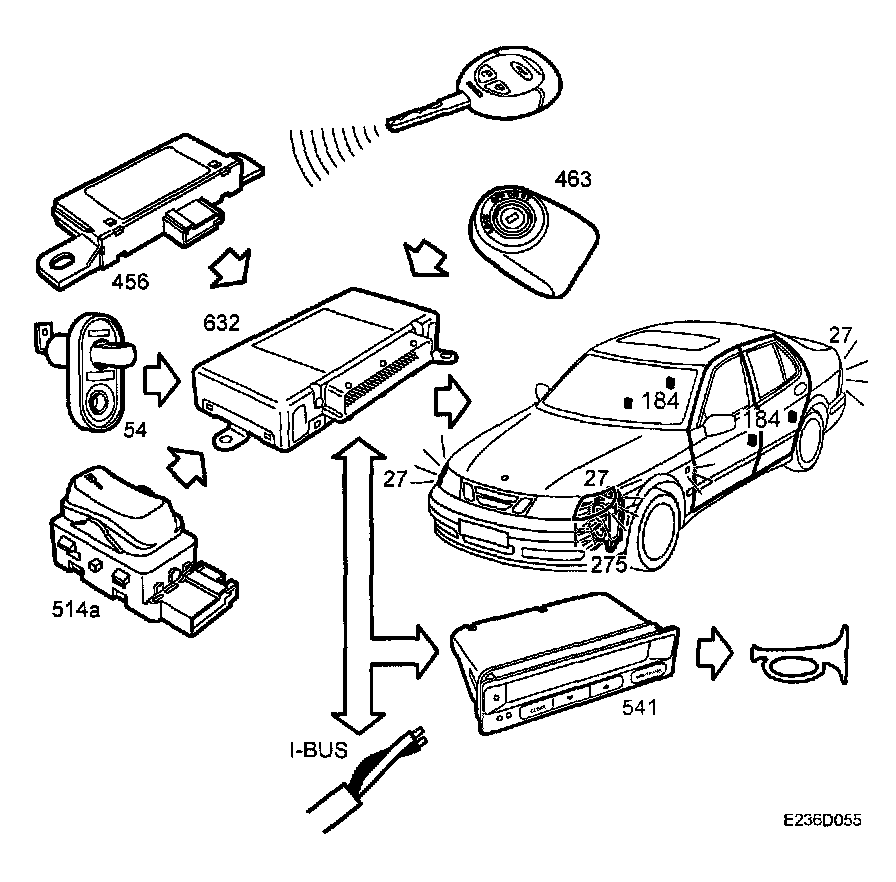

System overview, central locking doors







- Control module, TWICE (632)
- Car key
- Antenna, remote control, central locking system (456)
- Switch, simultaneous closing central locking (514a)
- Motor, central locking system, driver (184D)
- Motor, central locking system, doors (184P, 184RL, 184RR)
- SID (541)
- Antenna unit, immobilizer (463)
- Door switches (54)
- Lamps, direction indicators (27)
- Siren, antitheft alarm (275)

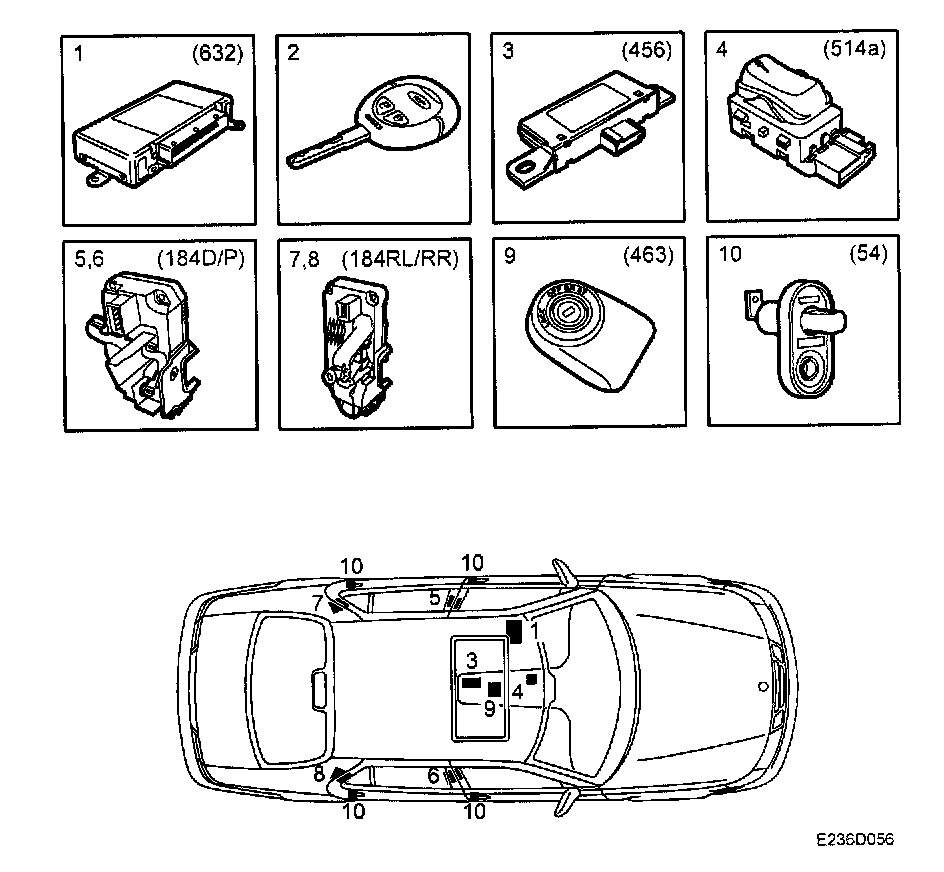

Main components, central locking doors







1. Control module, TWICE (632)
2. Car key
3. Antenna, remote control, central locking system (456)
4. Switch, simultaneous closing central locking (514a)
5. Motor, central locking system, driver (184D)
6. Motor, central locking system, passenger (184P)
7. Motor, central locking system, rear left (184RL)
8. Motor, central locking system, rear right (184RR)
9. Antenna unit, immobilizer (463)
10. Door switches (54FL, 54FR, 54RL, 54RR)
