Control Module Outputs For Anti-Theft Alarm

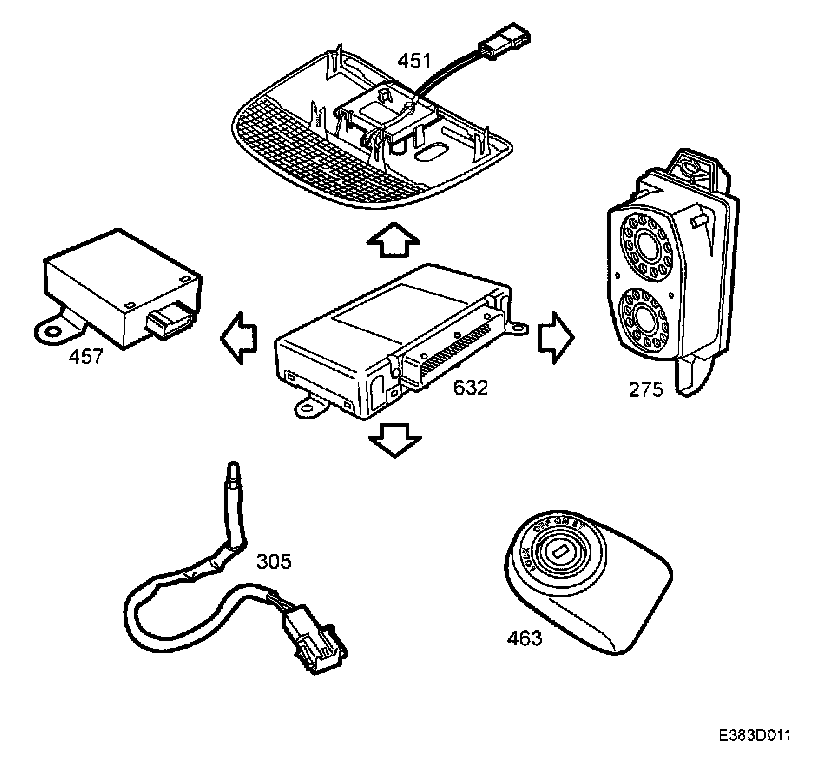

Control Module Outputs For Anti-theft Alarm







- Glass breakage sensor, power supply (451)
- Tilt sensor, power supply (457)
- LED, anti-theft alarm (305)
- Siren, anti-theft alarm (275)
- Antenna unit, immobiliser, power supply (463)
