Alarm Tripped

Alarm Tripped







General

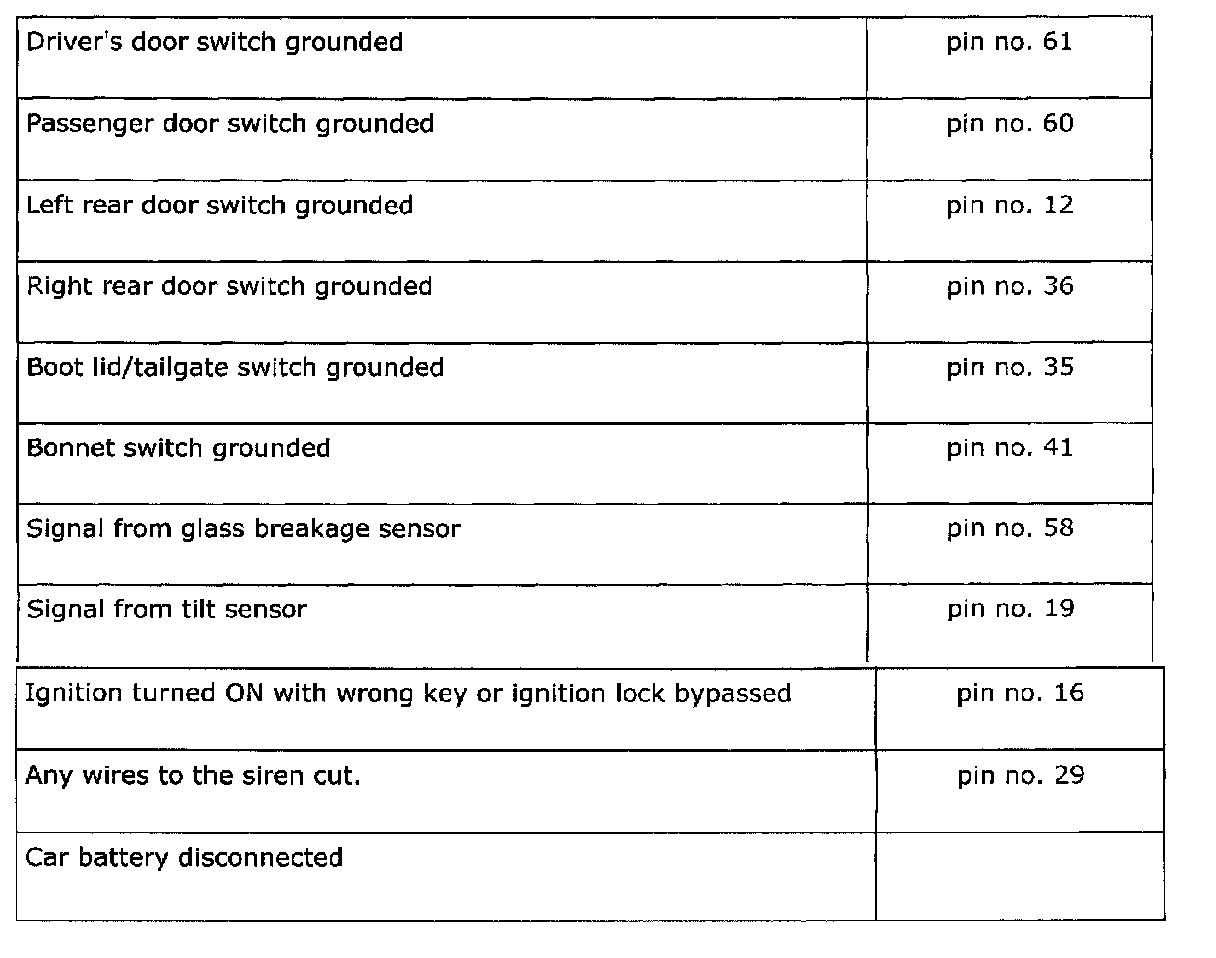

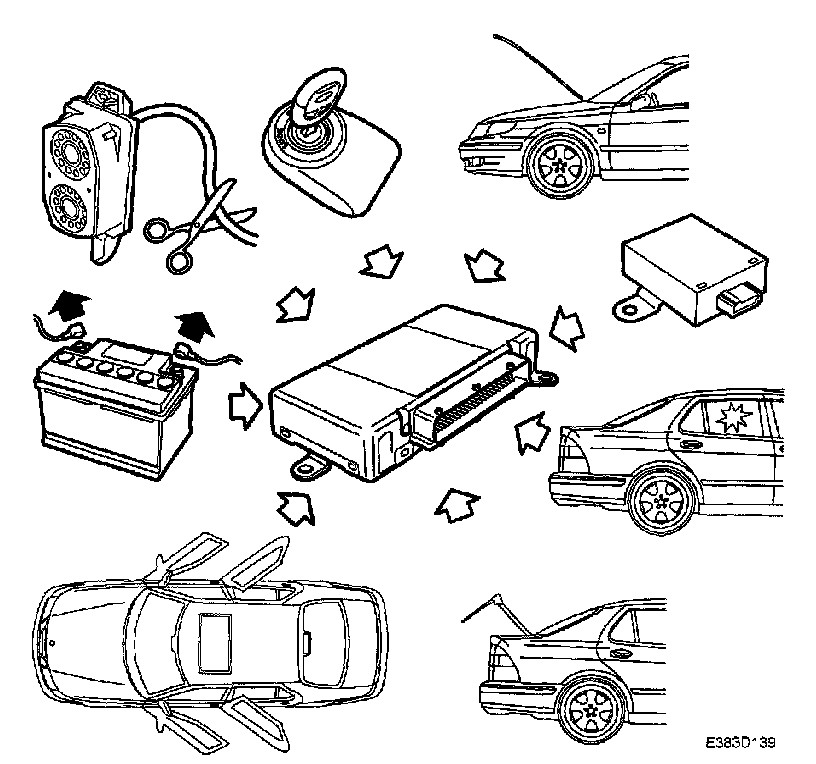

When the alarm is armed, it is triggered if alarm information in the following situations comes to TWICE on the specified connections:







When the alarm is tripped, the siren sounds for 30 seconds and the direction indicators flash for 5 minutes. If a door is open, this is repeated 10 times.
To stop an alarm, it must be disarmed with the remote control. This is done by pressing one of the UNLOCK buttons on the remote control or turning the key in the ignition.


IMPORTANT
This type of alarm tripping is standard (on delivery). The flash and sound times can be reprogrammed as required for the market concerned.
