Fault Conditions

P1414

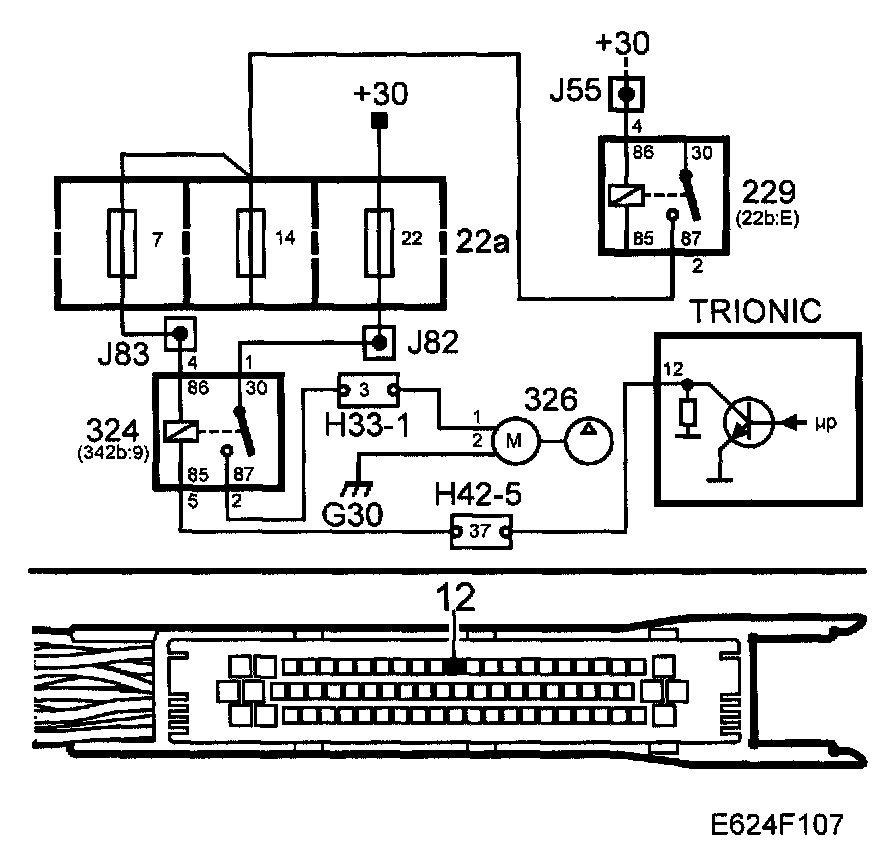

Secondary Air Injection Relay Circuit. Short to B+







Fault symptoms
- CHECK ENGINE
- The secondary air injection pump will not start.

Type of diagnosis
Activated by secondary air supply.

Conditions
The following conditions apply for this DTC:
- Enable criteria. Battery voltage above 10 Volts.
- Voltage 12 V
