Fault Conditions

P1310

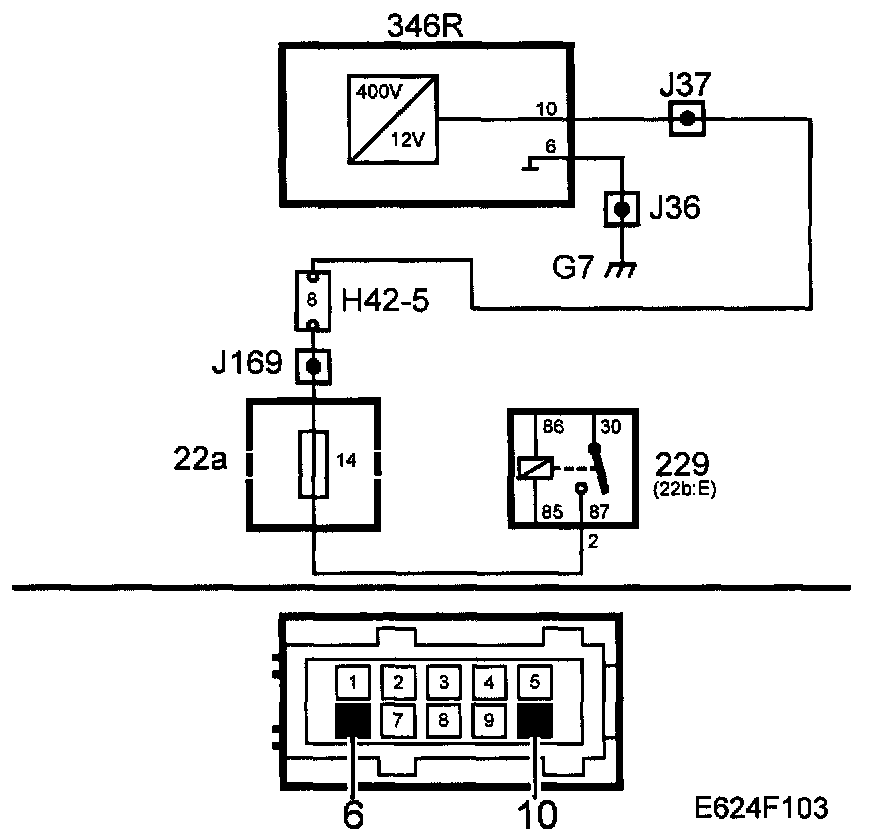

Ignition Discharge Module. Not Powered, Bank 1.







Fault symptoms
- Engine will not start.

On-Board Diagnostics

Type of diagnosis:
- Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle.

Enable criteria:
- Crankshaft rotating. Main relay voltage above 6 V.
