Fault Conditions

P0445

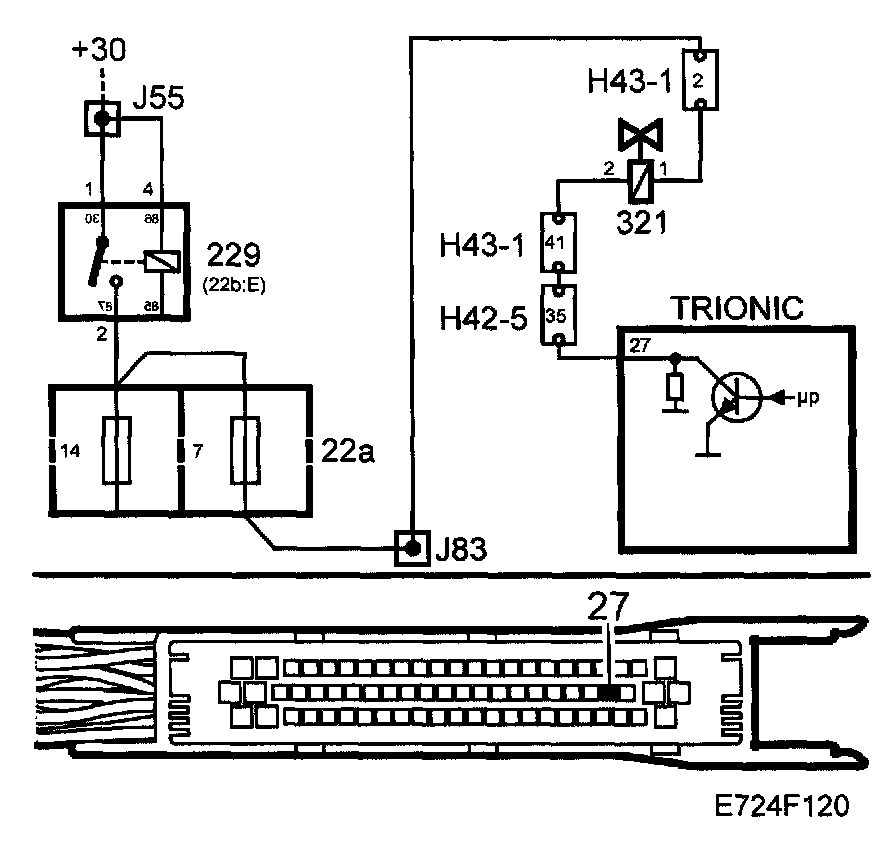

EVAP Purge Valve Circuit. Short to B+.







Fault symptoms
- CHECK ENGINE.
- Possible smell of petrol.

On-Board Diagnostics

Type of diagnosis:
- Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle.

Enable criteria:
- Engine running. Main relay voltage exceeding 10 V. Output is active.
