P0101




P0101

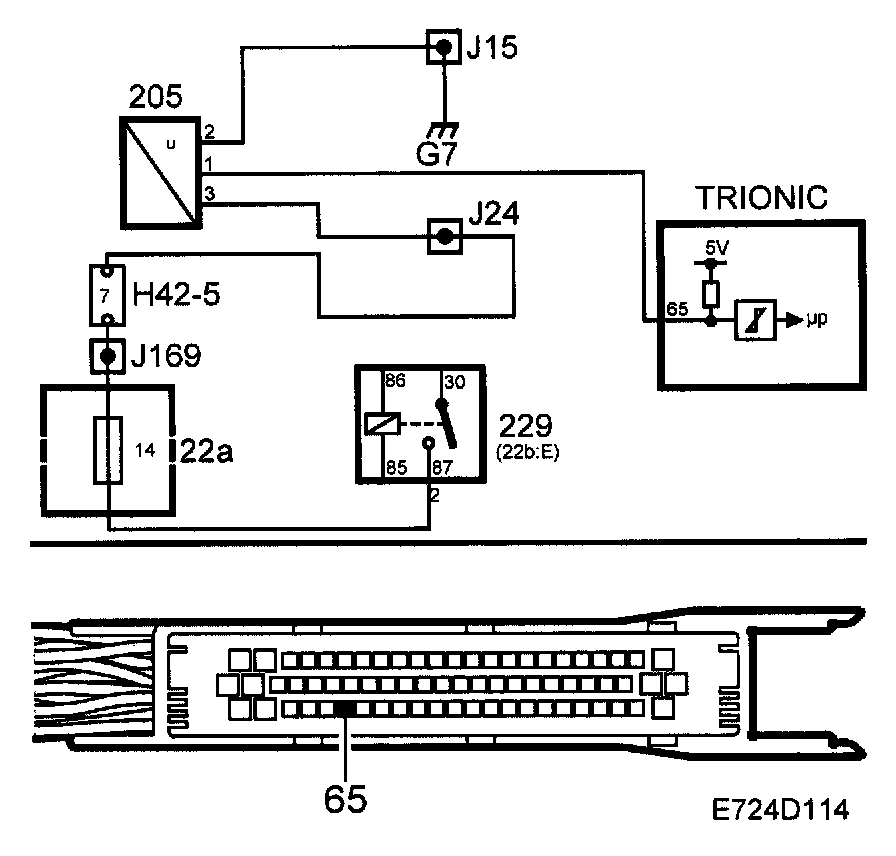

Mass Air Flow Circuit. Performance Problems.







Fault symptoms
- CHECK ENGINE.

On-Board Diagnostics

Type of diagnosis:
- Continuous. Terminated when fault criteria fulfilled. Restarts next driving cycle.

Enable criteria:
- General conditions for this trouble code: Atmospheric pressure must exceed 72 kPa and the engine coolant and intake air temperature must be above -70°C.
