DTC 41

041

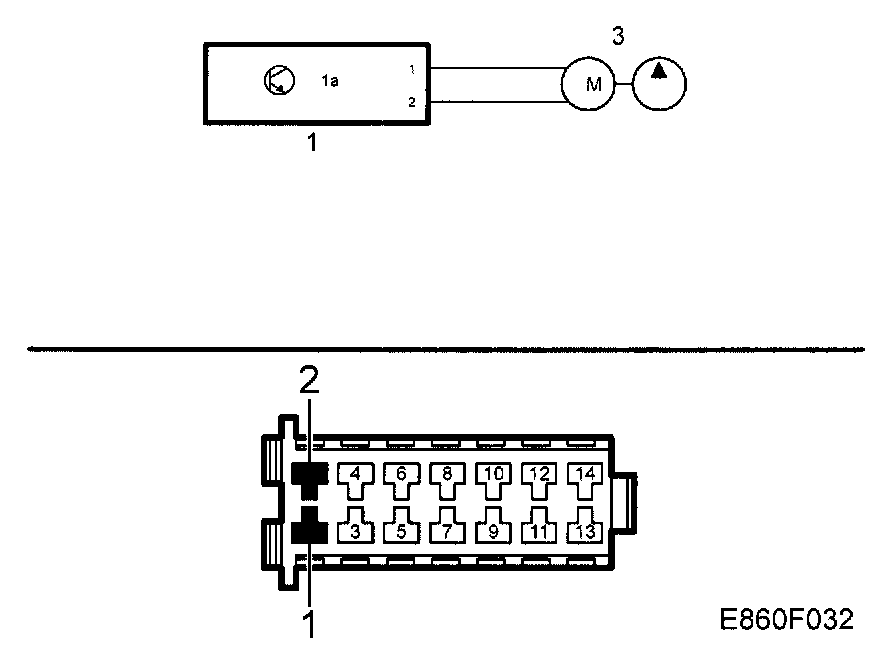

Water Pump. Open Circuit.







Fault symptom
Parking heater fails to start.

Condition
Parking heater activated.

Diagnostic help
Check whether another diagnostic trouble code related to water circulation as been generated. If this is the case, it is highly probable that this diagnostic trouble code also caused 041 to be generated.
Parking heater can be activated with Tech 2.
Parking heater function can be programmed in SID.
Eberspacher diagnostics instrument used for diagnosis.
