B2360

B2360

A/C Pressure Sensor. Short To Ground
A/C Pressure Sensor. Open Circuit / Short To B+







Fault Symptoms
A/C system does not supply cold air.

Conditions
Shorting to ground is generated if:

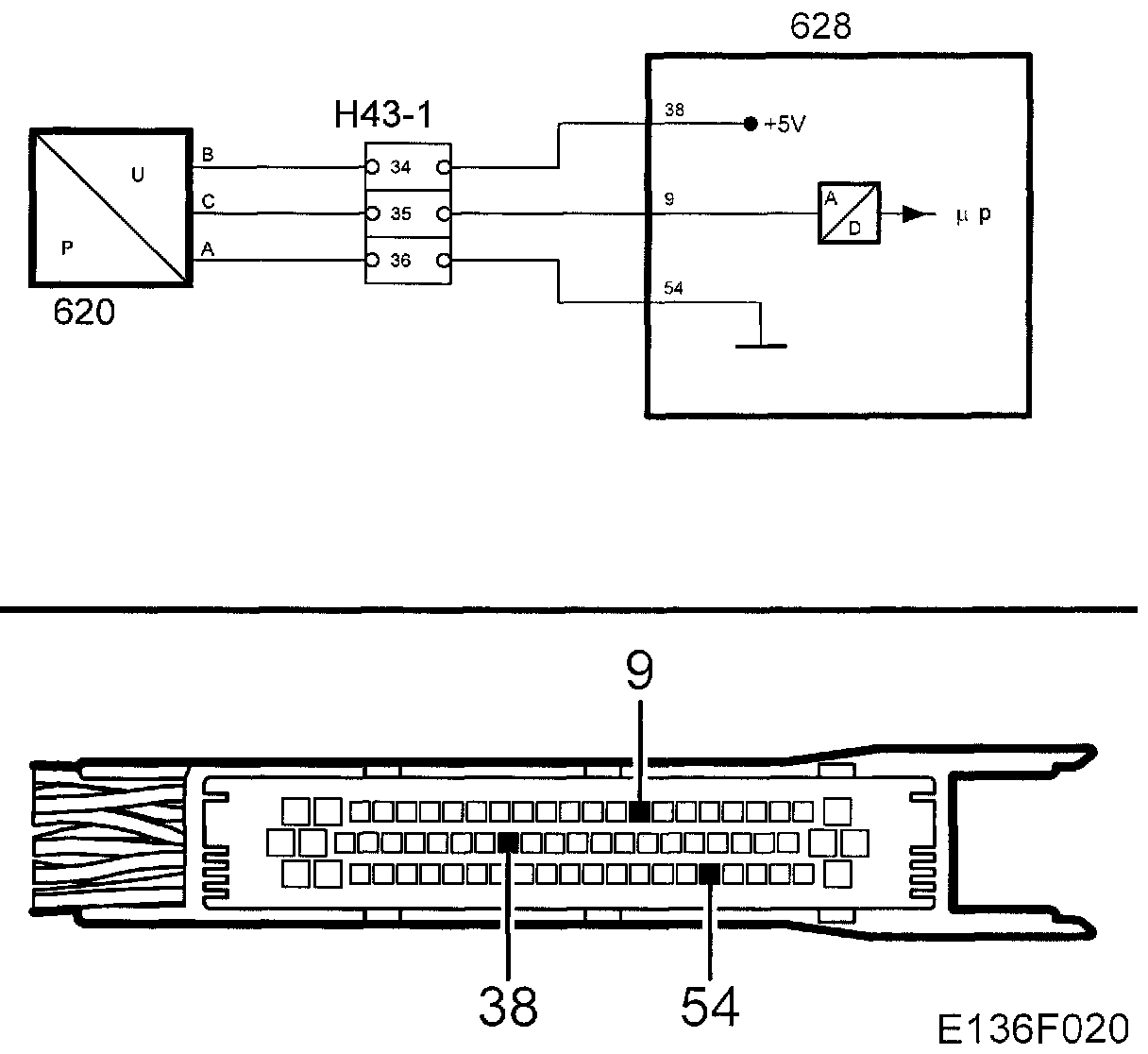

- pin 9 on the control module is shorting to ground
- the voltage is below normal measuring range.

Open circuit/short circuit to B+ is generated if:
- pin 9 on the control module is shorting to B+
- the voltage is above normal measuring range.

Diagnostic help
The pressure in the A/C system can be read on the diagnostic tool.
