Upper Fluid Delivery Pipe

To Remove
1. Raise the car.
2. Place an oil pan under the transmission to collect fluid spill.

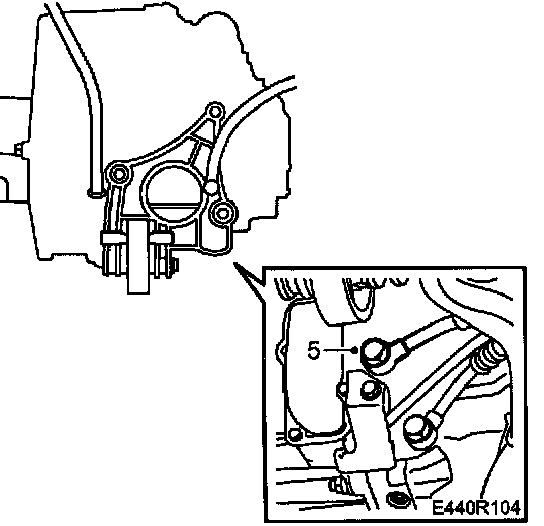

3. Remove the upper banjo bolt, plug the hole.
4. Lower the car to the floor.

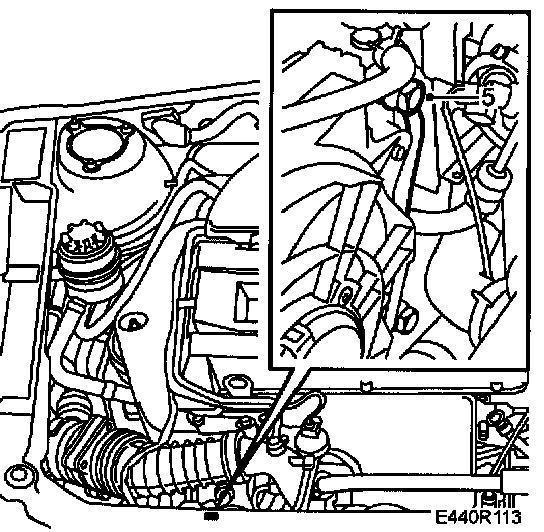

5. Remove the upper banjo bolt from the radiator.
6. Remove the pipes' bracket from the fan cowling.
7. Remove the screws securing the fan cowling to the radiator.
8. Raise the fan cowling slightly and lift out the delivery pipe.

Fitting

NOTE: Change the seals in the banjo bolts.

1. Raise the fan cowling slightly. Position the pipe correctly





2. Fit the banjo bolt but do not tighten it.
3. Fit the bracket on the fan cowling and tighten it. Tighten the banjo bolt.
Tightening torque: 22 Nm (16 ft. lbs.)
4. Raise the car.





5. Fit the banjo bolt on the transmission and tighten it.
Tightening torque: 22 Nm (16 ft. lbs.)
6. Lower the car to the floor.
7. Fill with transmission fluid, Texaco Texamatic DEXRON 111 (7045 EU, TL1863 US), to the correct level
