Home >> Saab >> 2001 >> 9-5 (9600) L4-2.3L Turbo (B235) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Application and ID >> Relay Board 22b In Dashboard

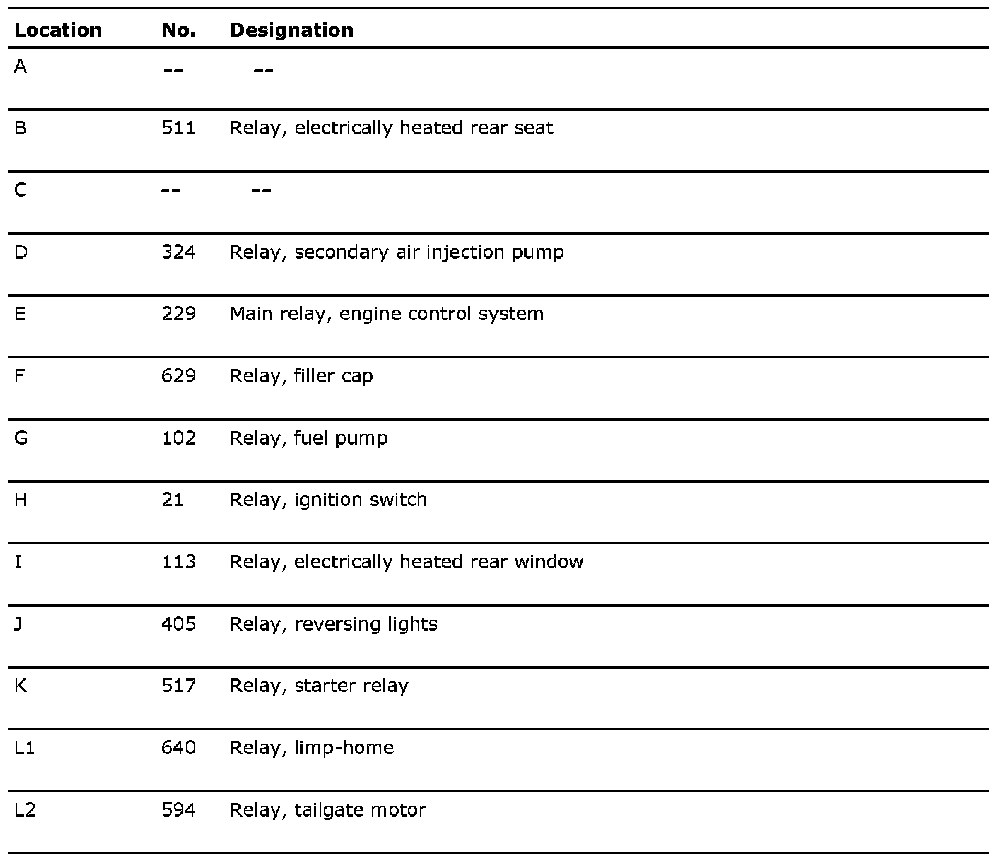

Relay Board 22b In Dashboard

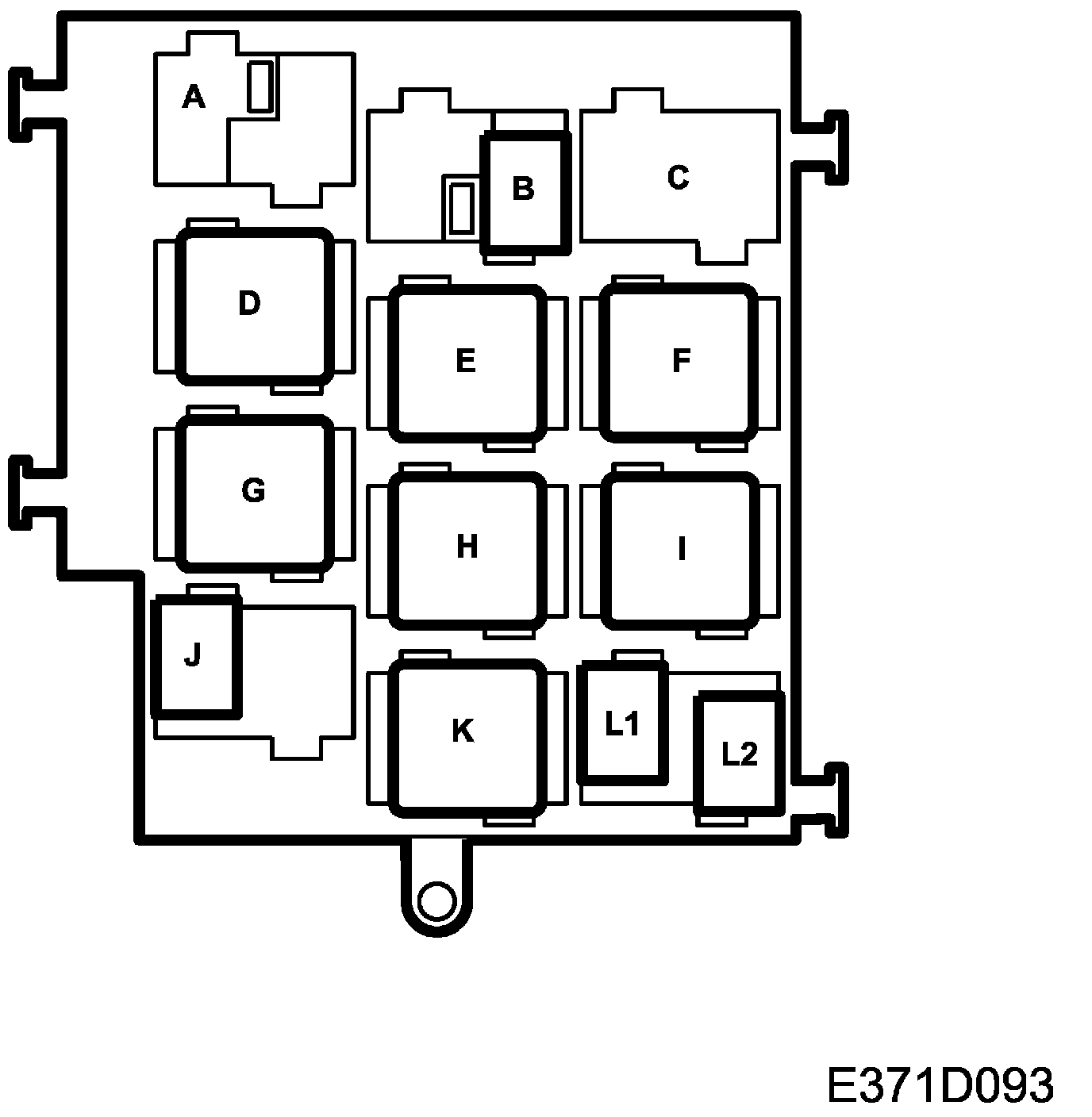

Relay Box 22b In The Dashboard

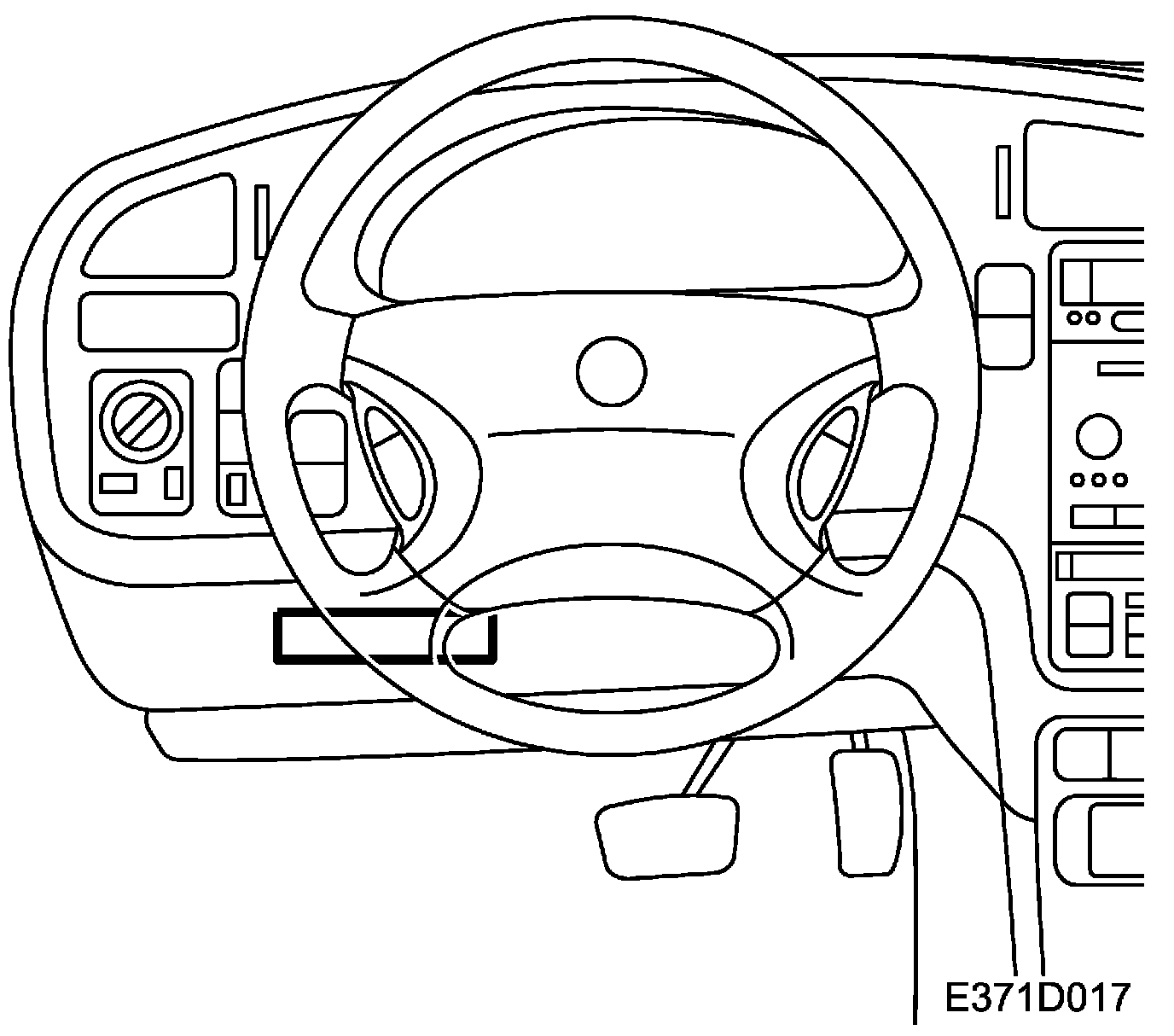

Location: Beneath the dashboard by the steering wheel
