Home >> Saab >> 2001 >> 9-5 (9600) L4-2.3L Turbo (B235) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Splices >> J5, Front Wiring Harness

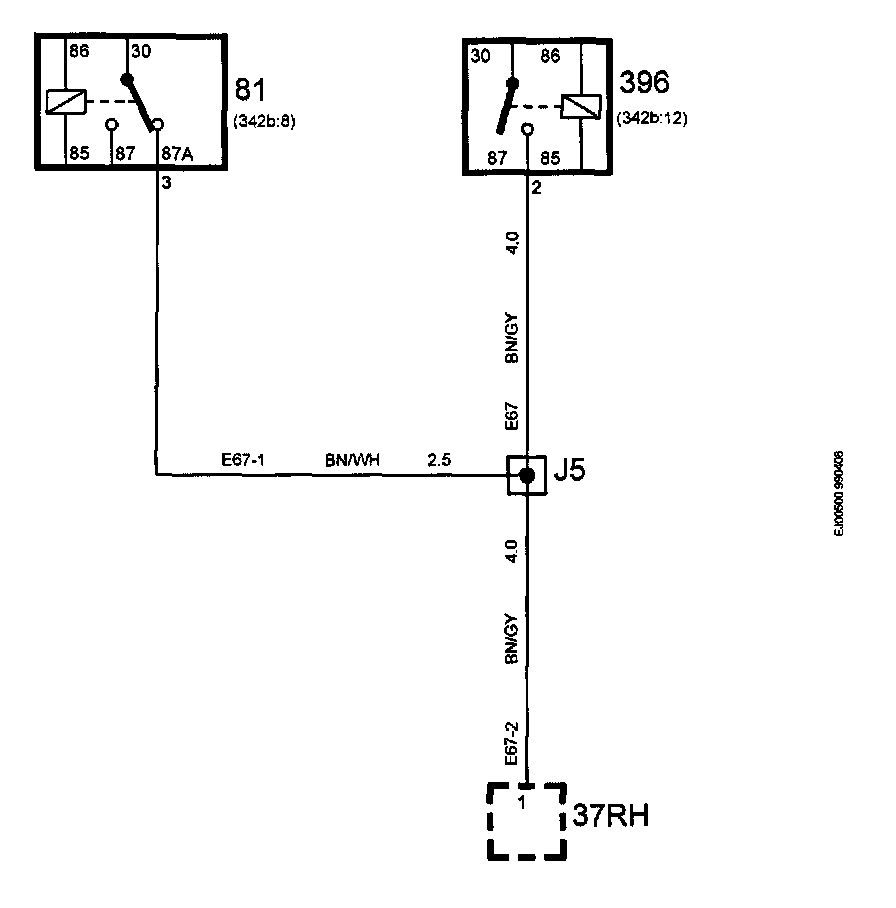

J5, Front Wiring Harness




Crimp J5, Front Wiring Harness
