G7

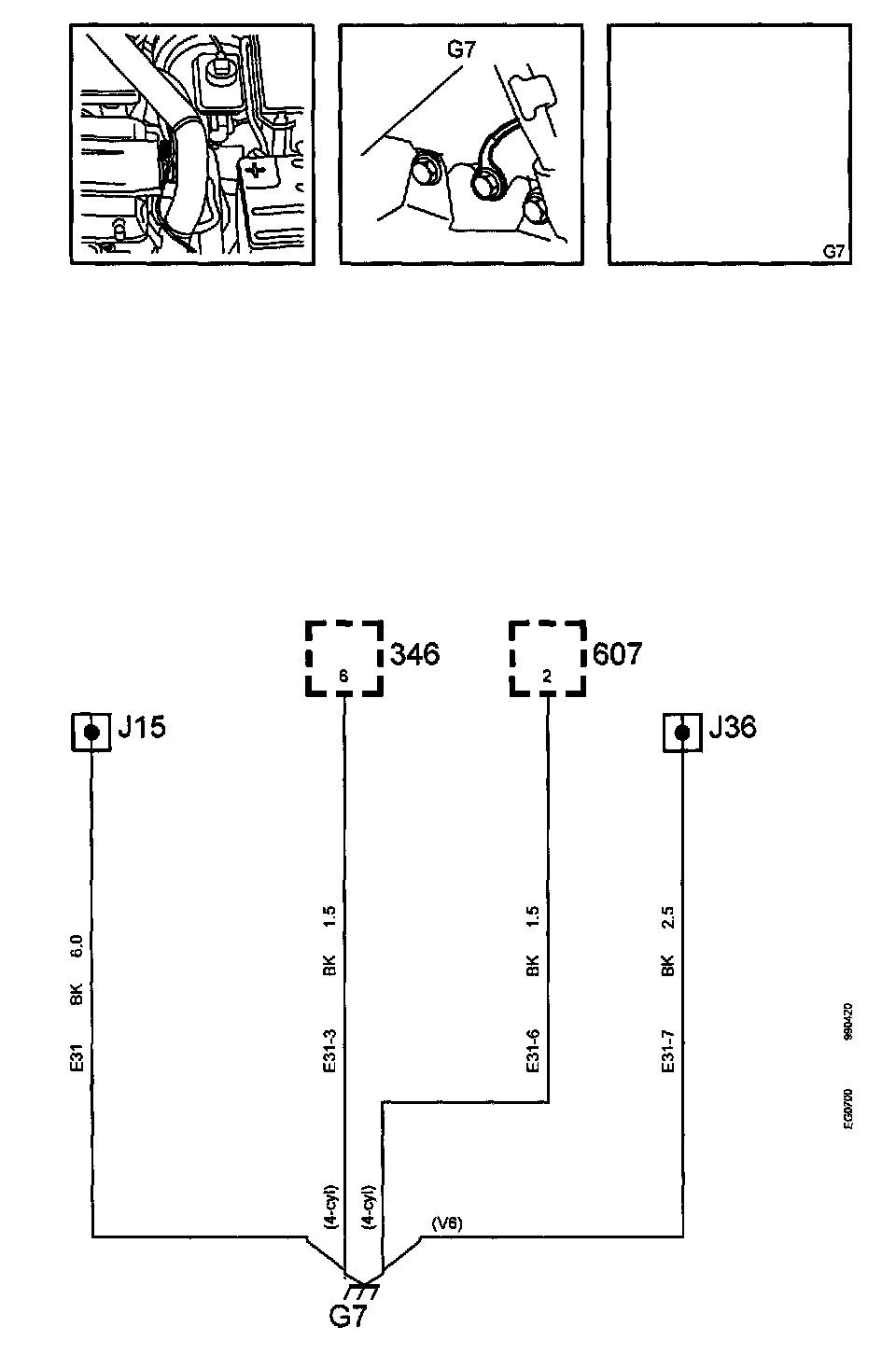

Grounding point G7, 4 cyl.







Location: On the side of the intake manifold to cylinder 4.

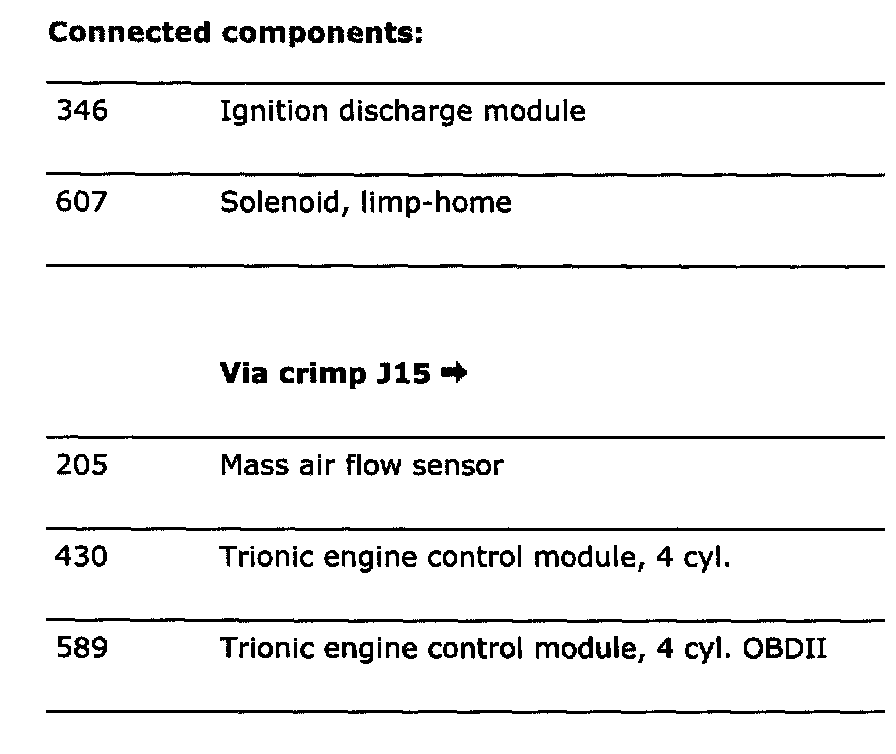

346 - 589:
