G3

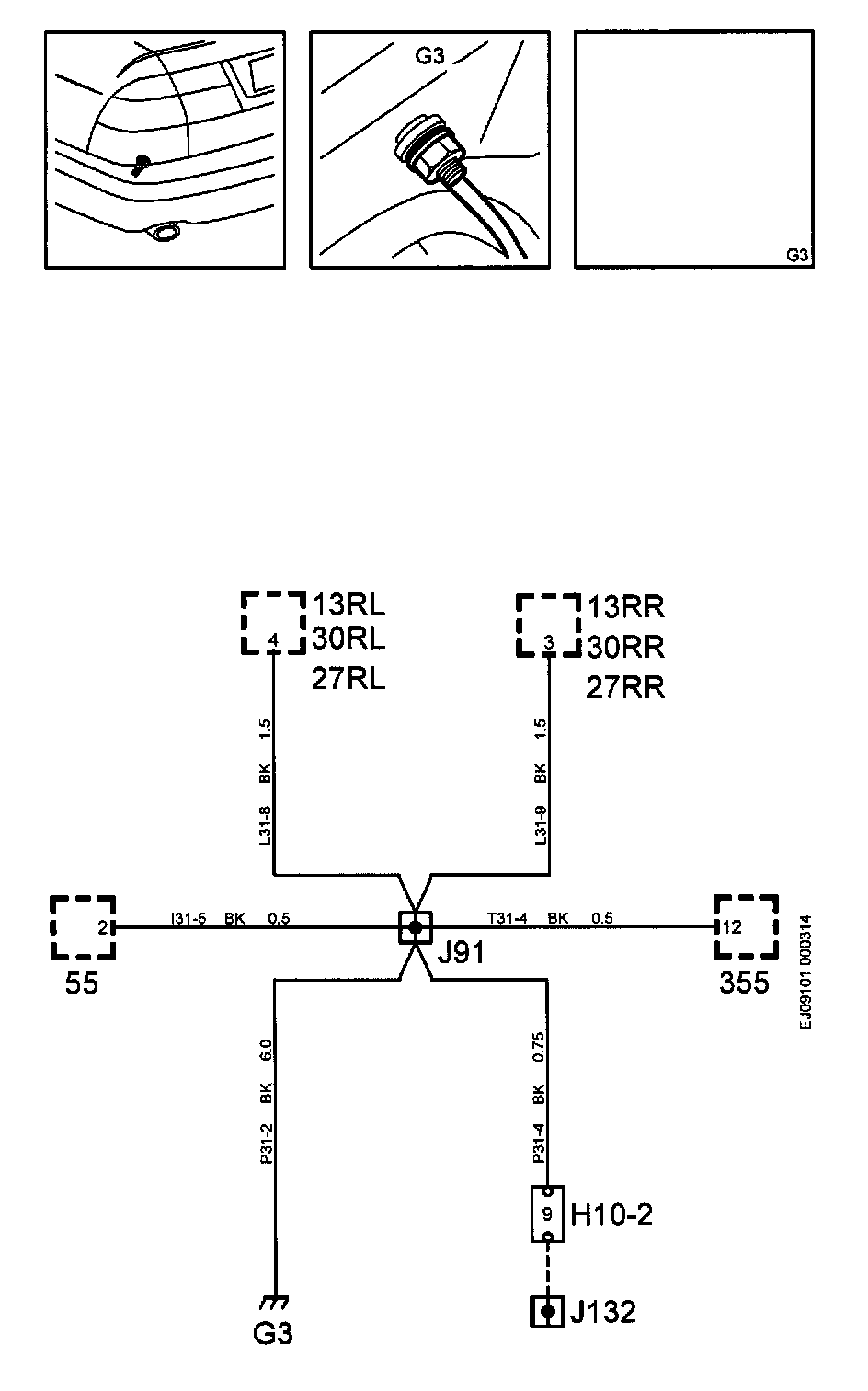

Grounding Point G3







Location: In luggage compartment under LH light cluster.

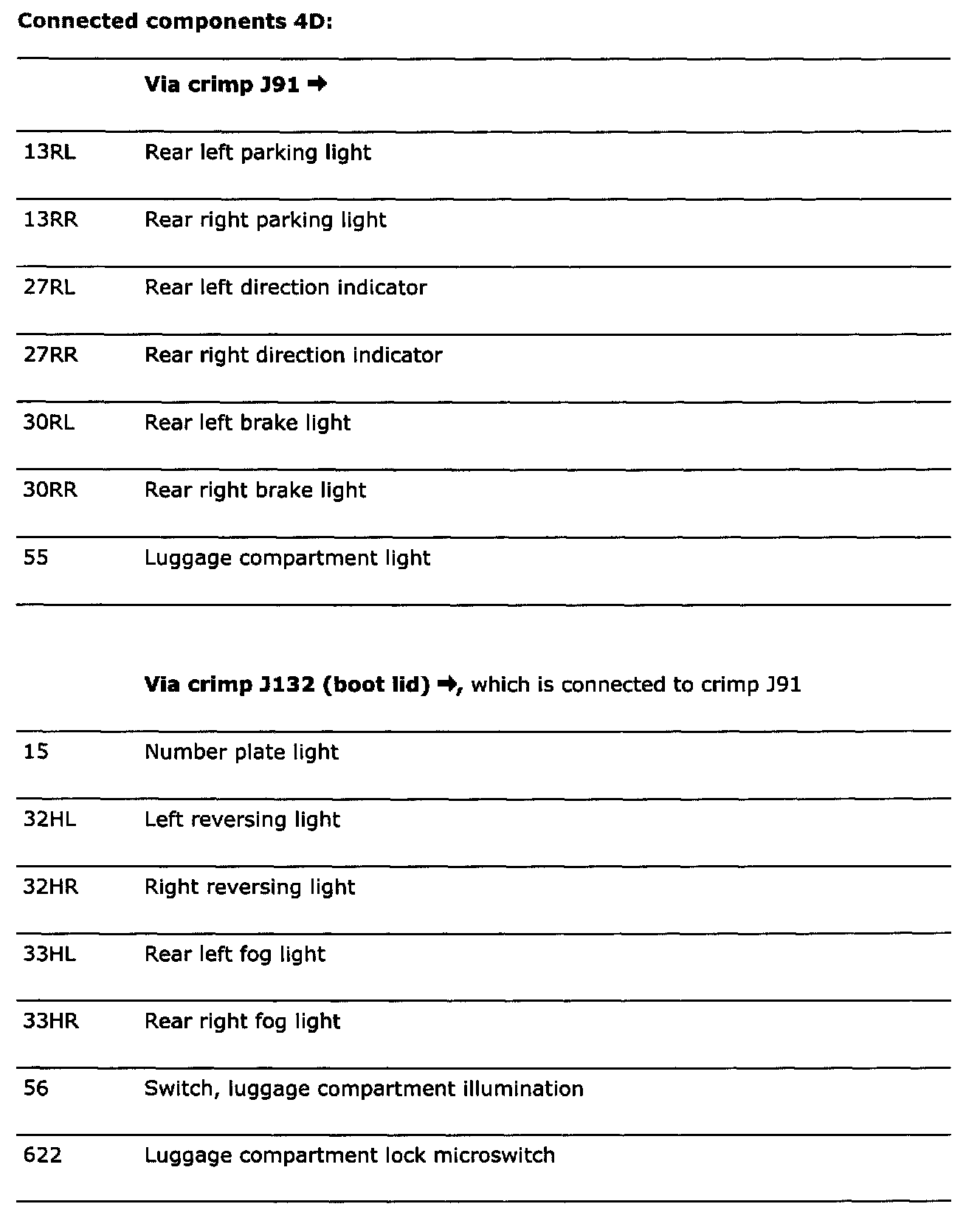

13RL - 622:

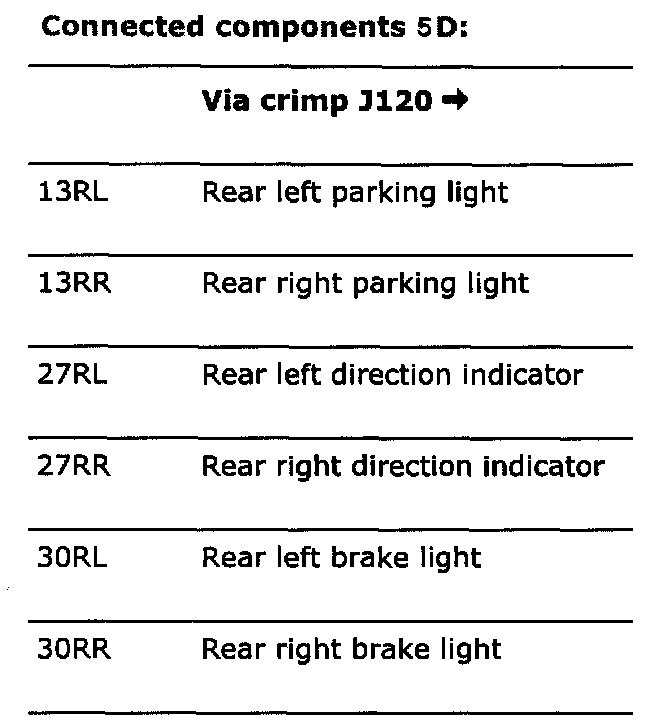

13RL - 30RR:
