Grounds
>>

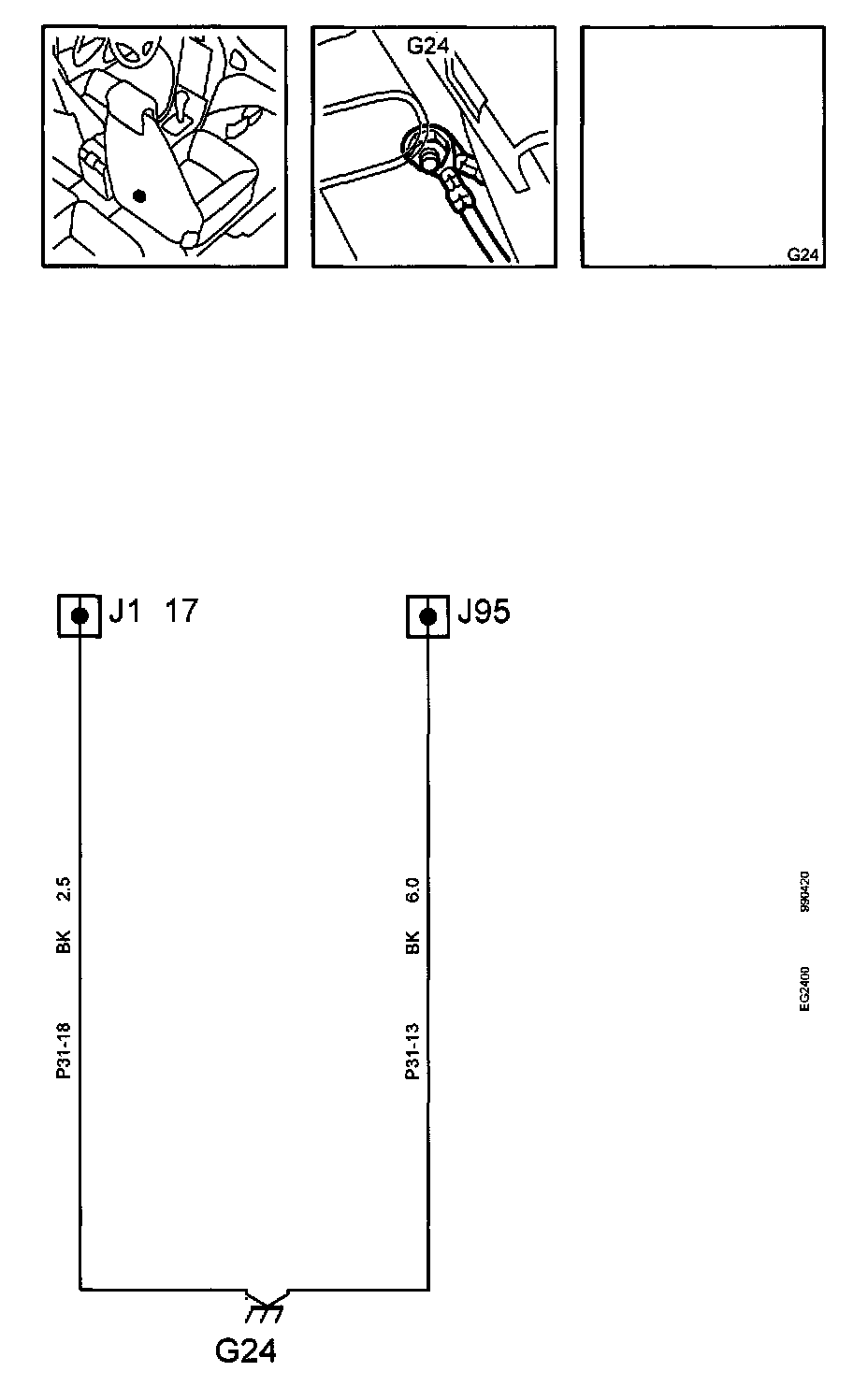

G24
G24
Grounding Point
G24
Location:
On the seat member under the right-hand seat.

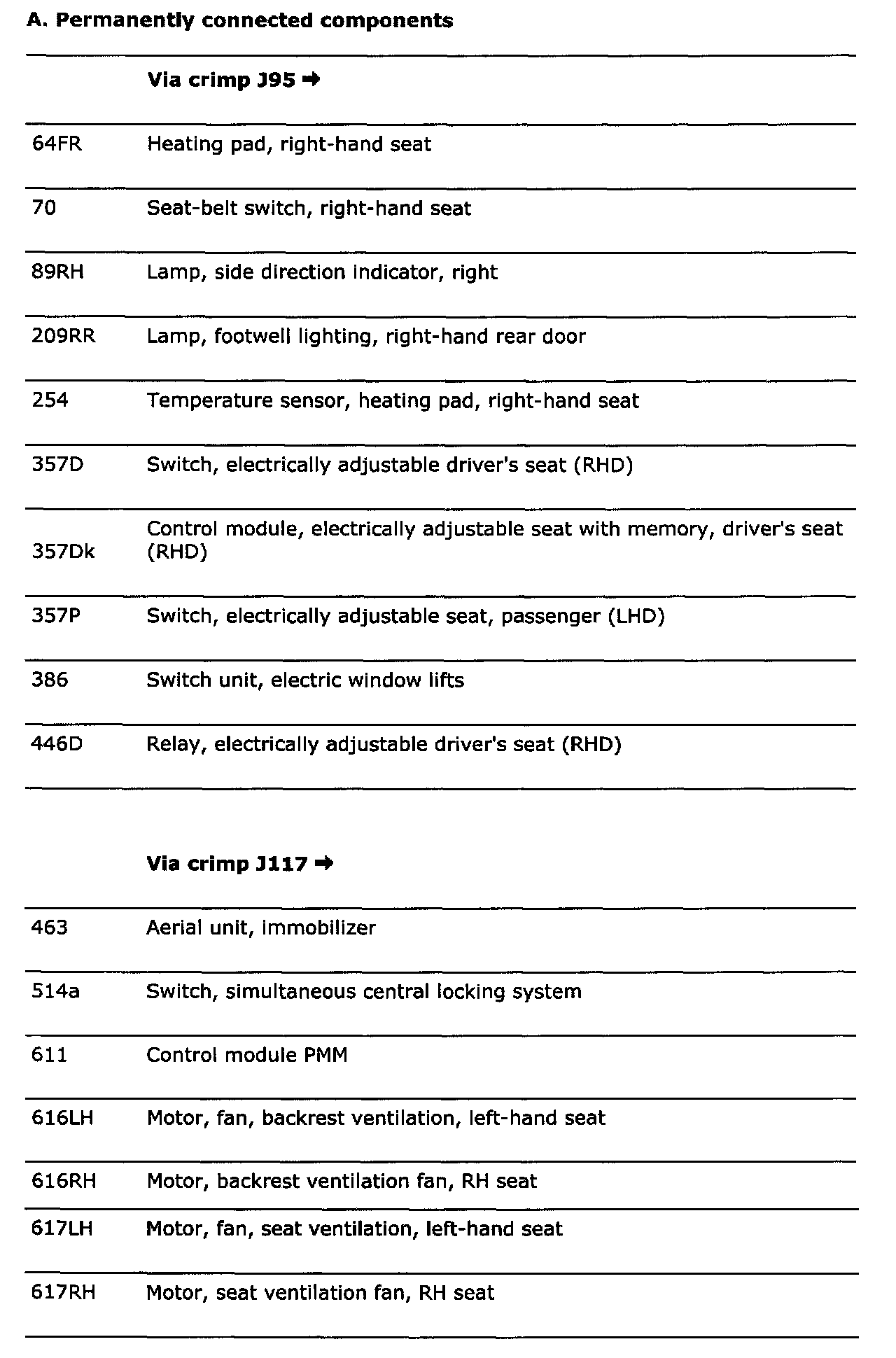

64FR - 617RH:
207P - 209P:

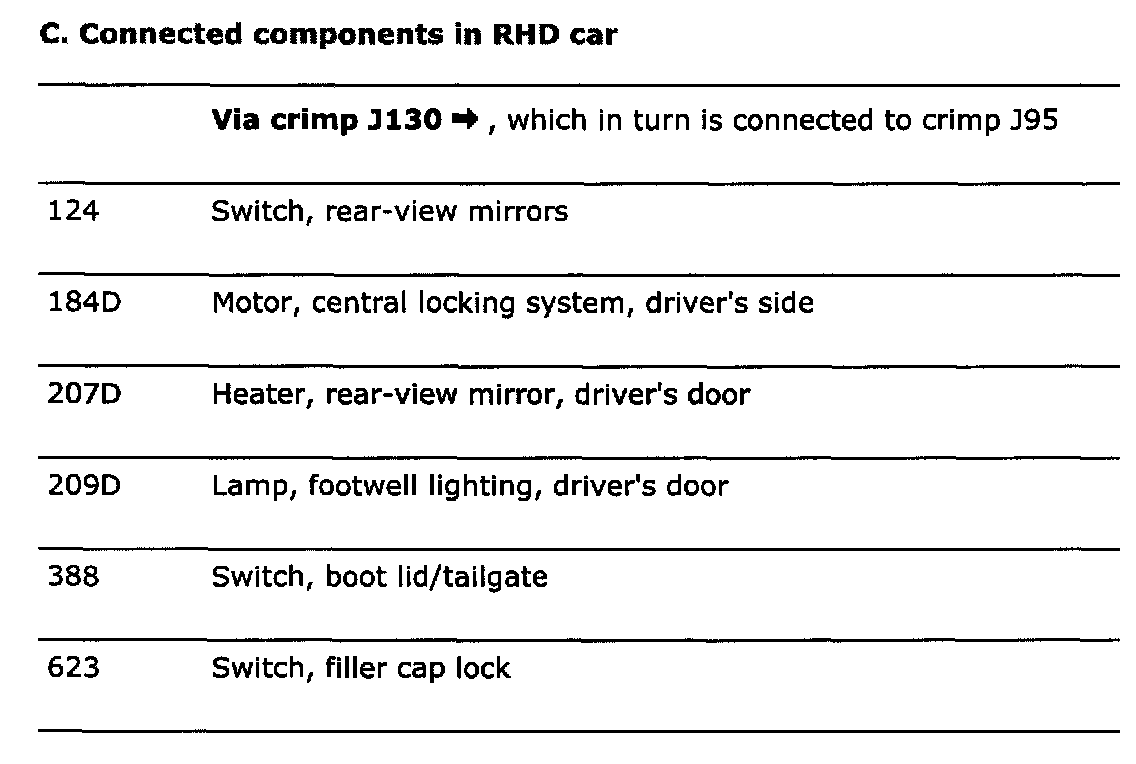

124 - 623:
