Alignment

Wheel Alignment
Before checking wheel alignment, the height of the car must be checked, see Measuring the height of the car before checking wheel alignment and a check of the suspension, Checking and adjustment before wheel alignment, must be carried out.

Nominal Height

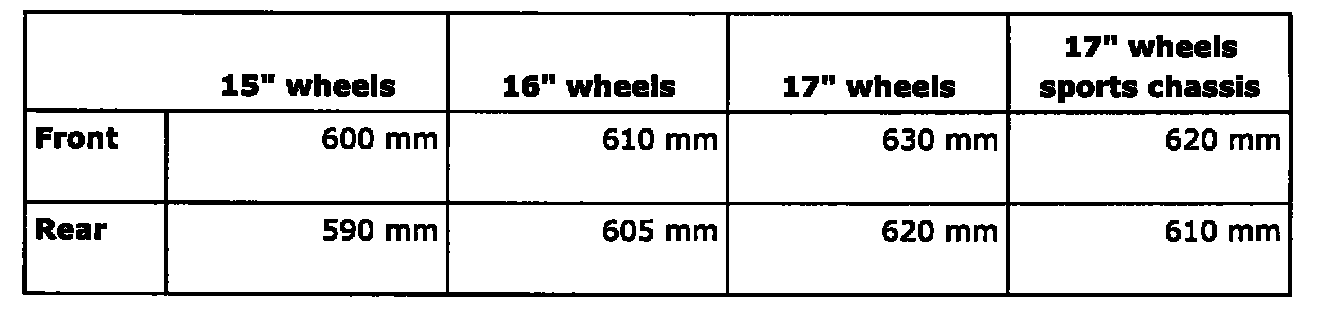

Nominal Height Table:

The table shows the nominal height of the car when unladen and all fluids at maximum levels. The values should be regarded as a guide. The actual values can vary due to the condition of the components.

Front-Wheel Alignment
Instructions for adjustment can be found under the headings: Overview, Adjusting front toe angle, Camber, Castor, Swivel-pin inclination and Steering angle,

Toe-In, Front

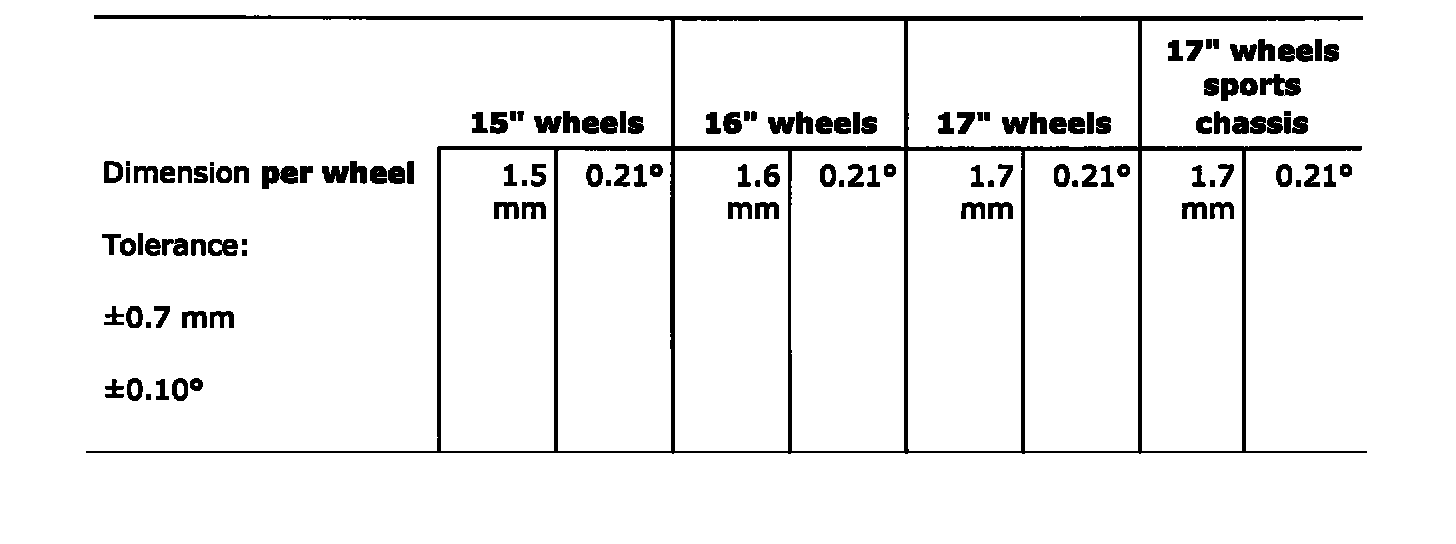

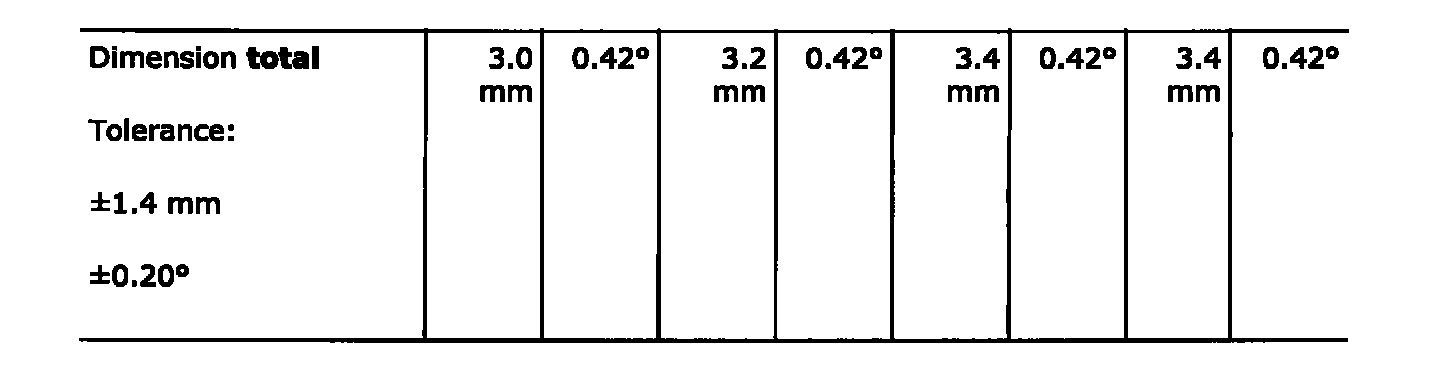

Front Toe In Table:

The table gives the values for adjusting toe-in on front wheels in mm and degrees as well as the value per wheel and total.

Camber, Front

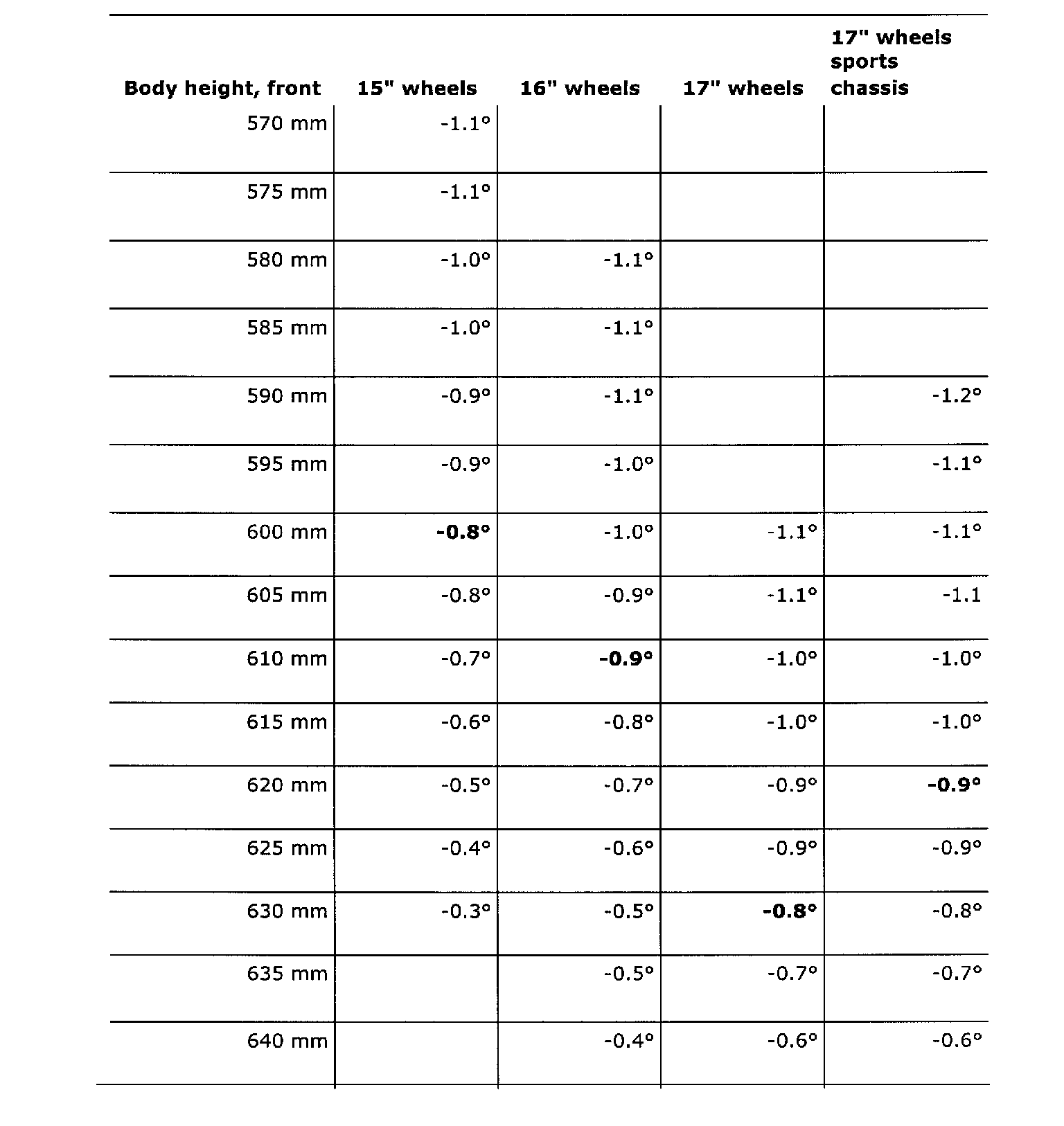

Front Camber Tables (Part 1 Of 2):

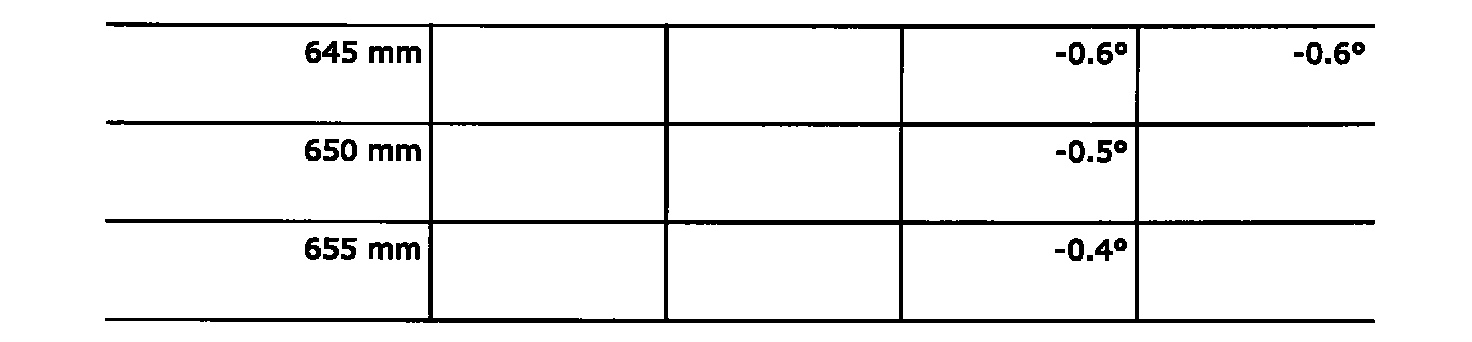

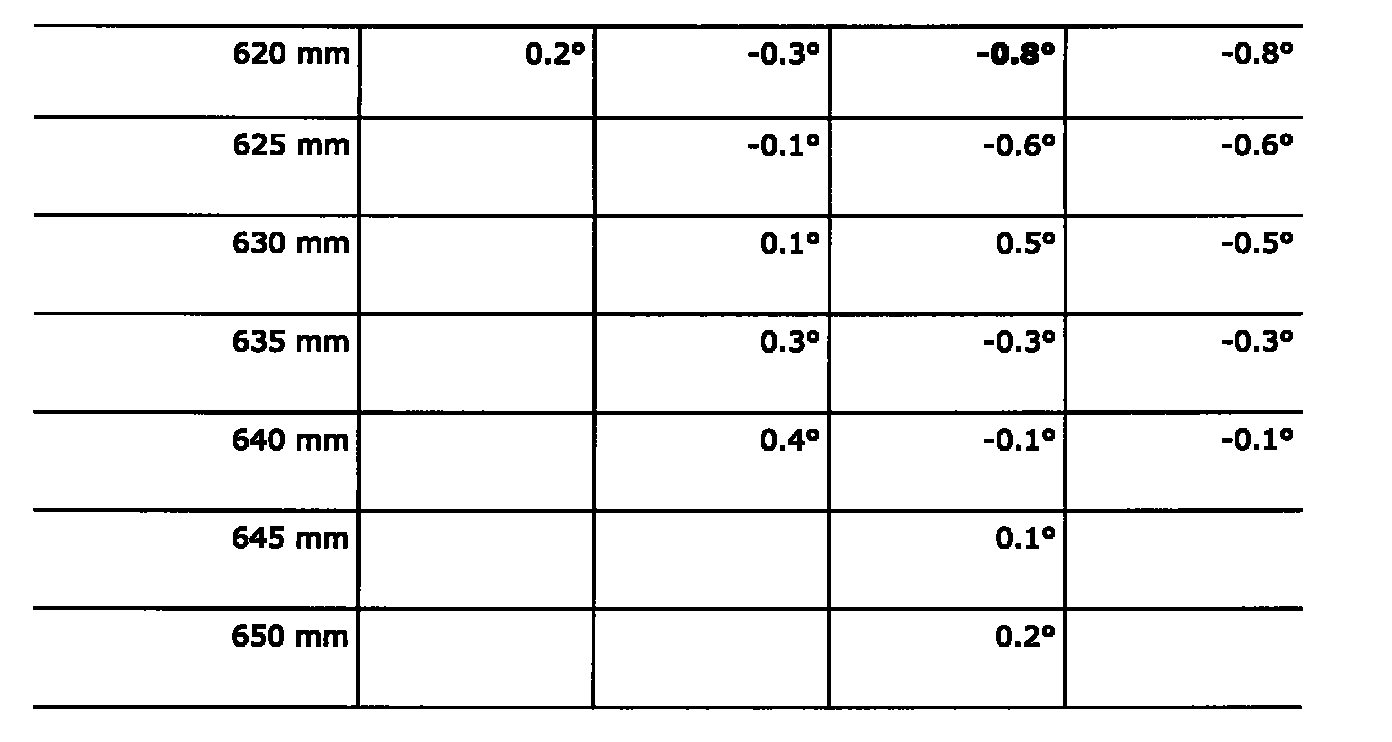

Front Camber Tables (Part 2 Of 2):

The table gives the values for adjusting front wheel camber in degrees and per wheel. The numbers in bold text are the nominal values, see Nominal height.

Other Values, Front

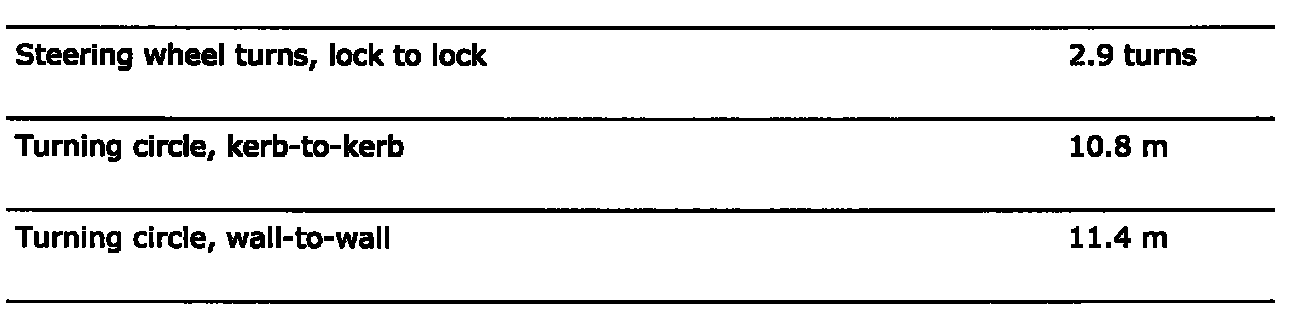

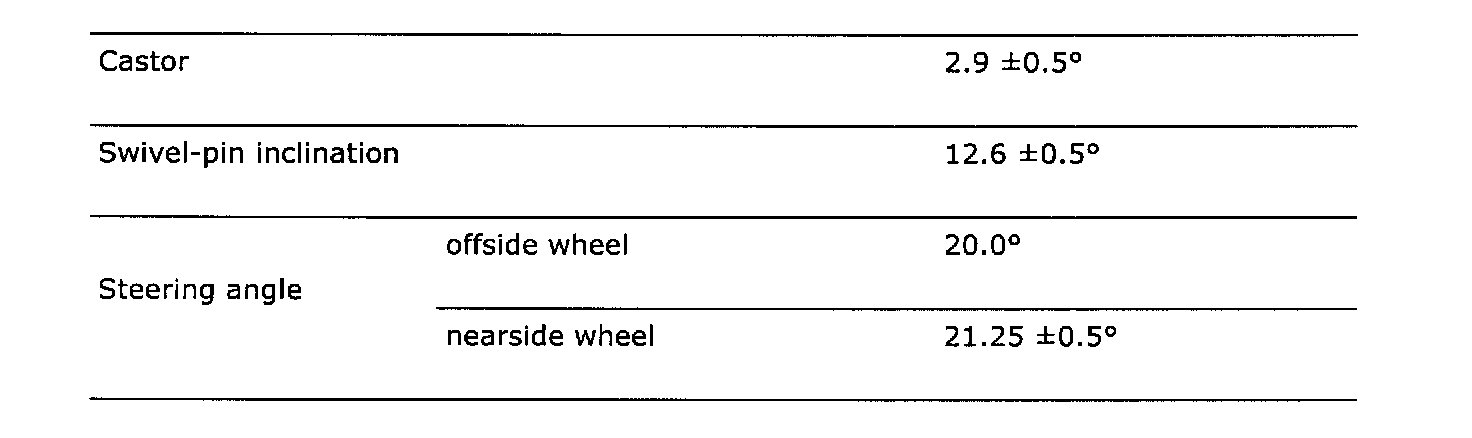

Other Values Table:

Rear Wheel Alignment
Instructions for adjustment can be found under the headings Overview and Adjusting rear toe angle.

Toe-in, rear

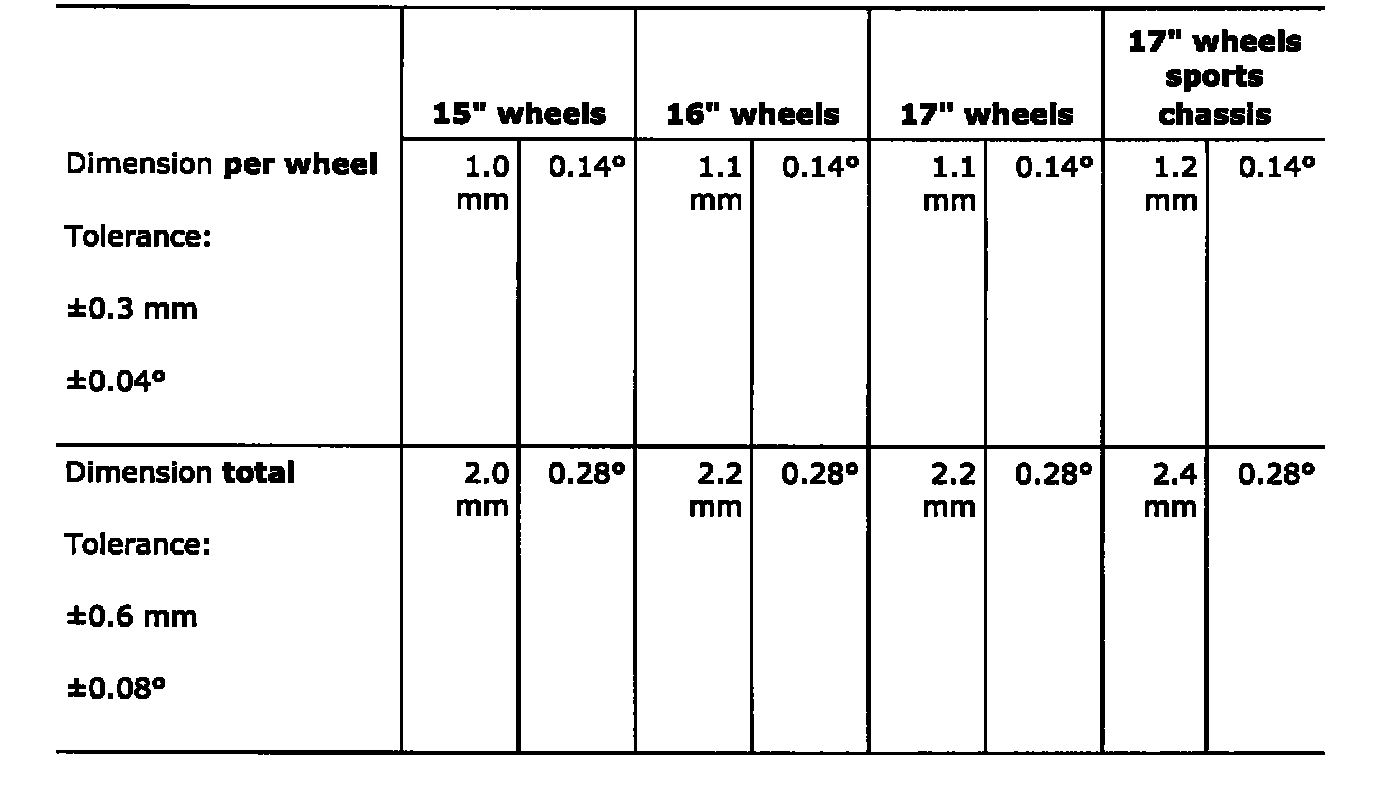

Rear Toe In Table (Part 1 Of 2):

Rear Toe In Table (Part 2 Of 2):

The table gives the values for adjusting toe-in on rear wheels in mm and degrees as well as the value per wheel and total.

Camber, rear

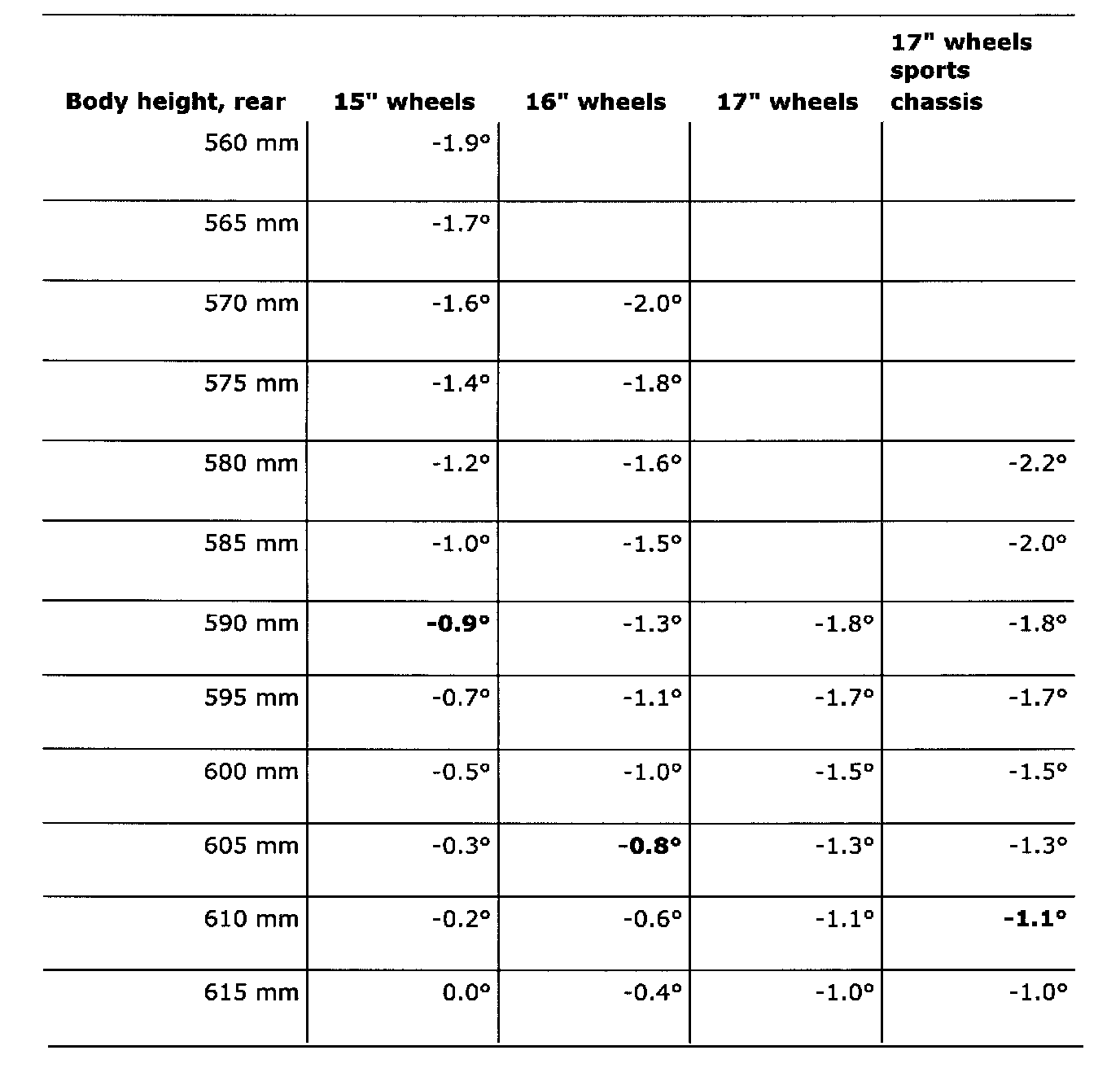

Rear Camber Table (Part 1 Of 2):

Rear Camber Table (Part 2 Of 2):

The table gives the values for adjusting rear wheel camber in degrees and per wheel. The numbers in bold text are the nominal values, see Nominal height.

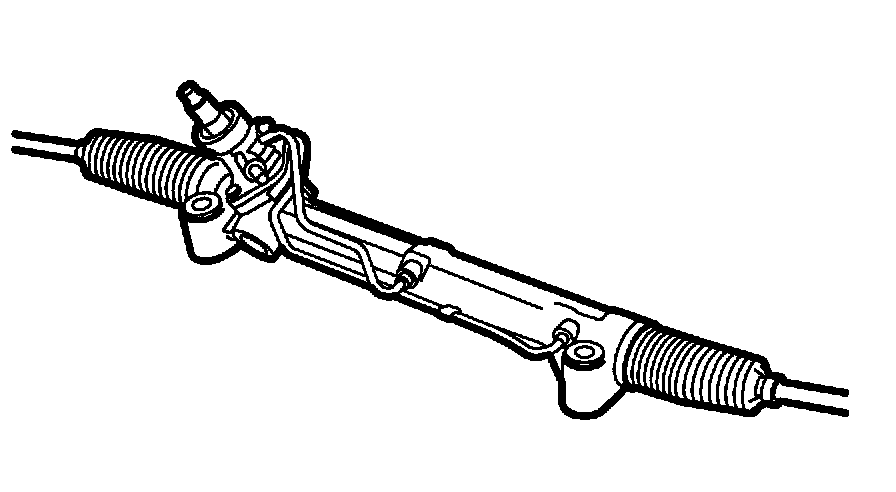

Steering assembly
