9-5 (9600) L4-2.3L Turbo (B235)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Dimensional
>>
Cylinder Head
Cylinder Head
Cylinder Head

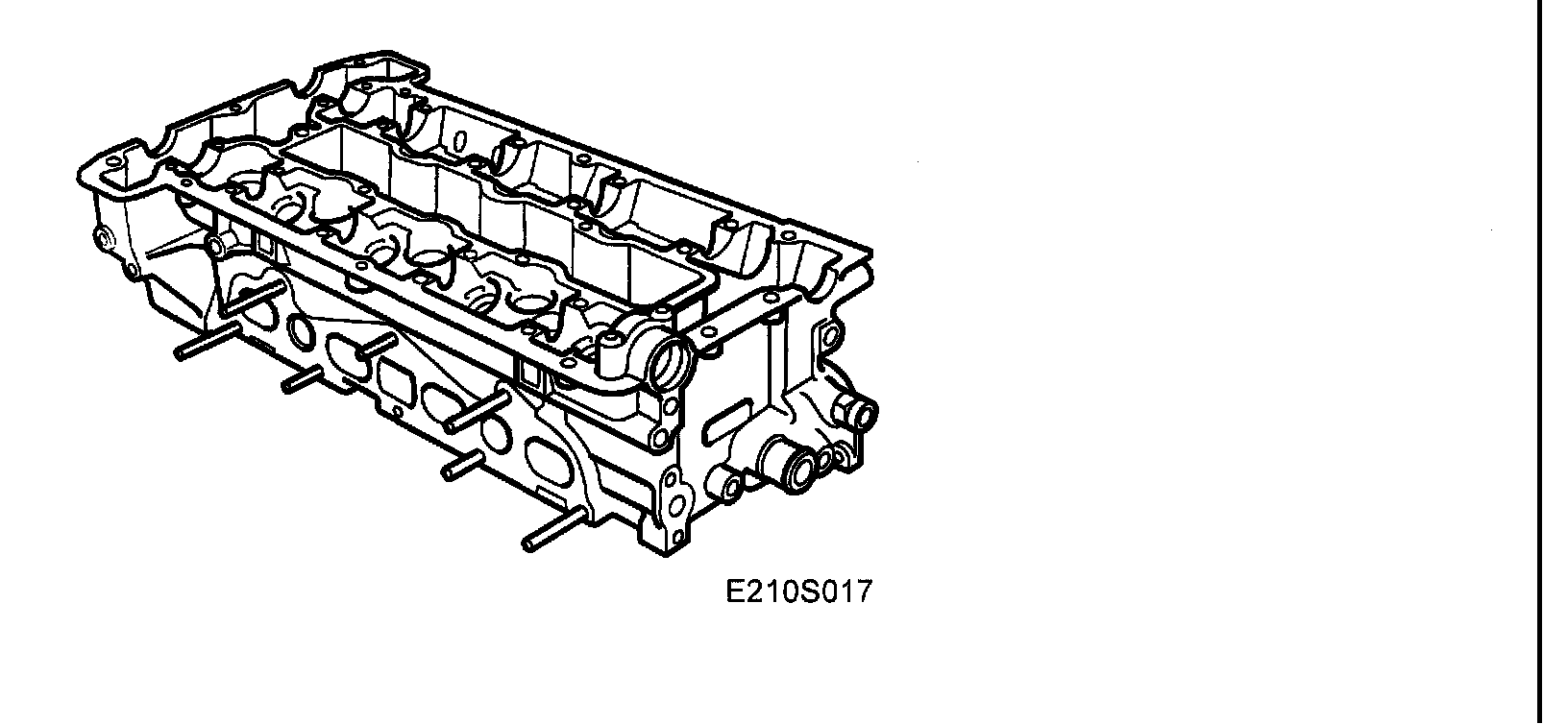

Component Illustration:

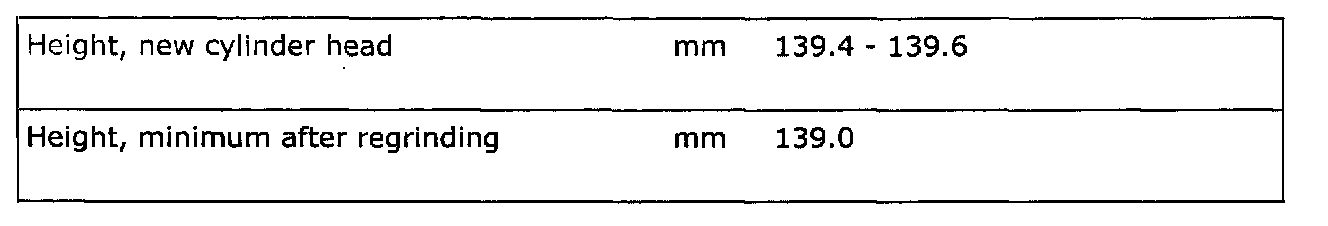

Specification Table:
