FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saab
>>
2001
>>
9-5 (9600) L4-2.3L Turbo (B235)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Dimensional
>>
Connecting Rod
Connecting Rod
Connecting rods

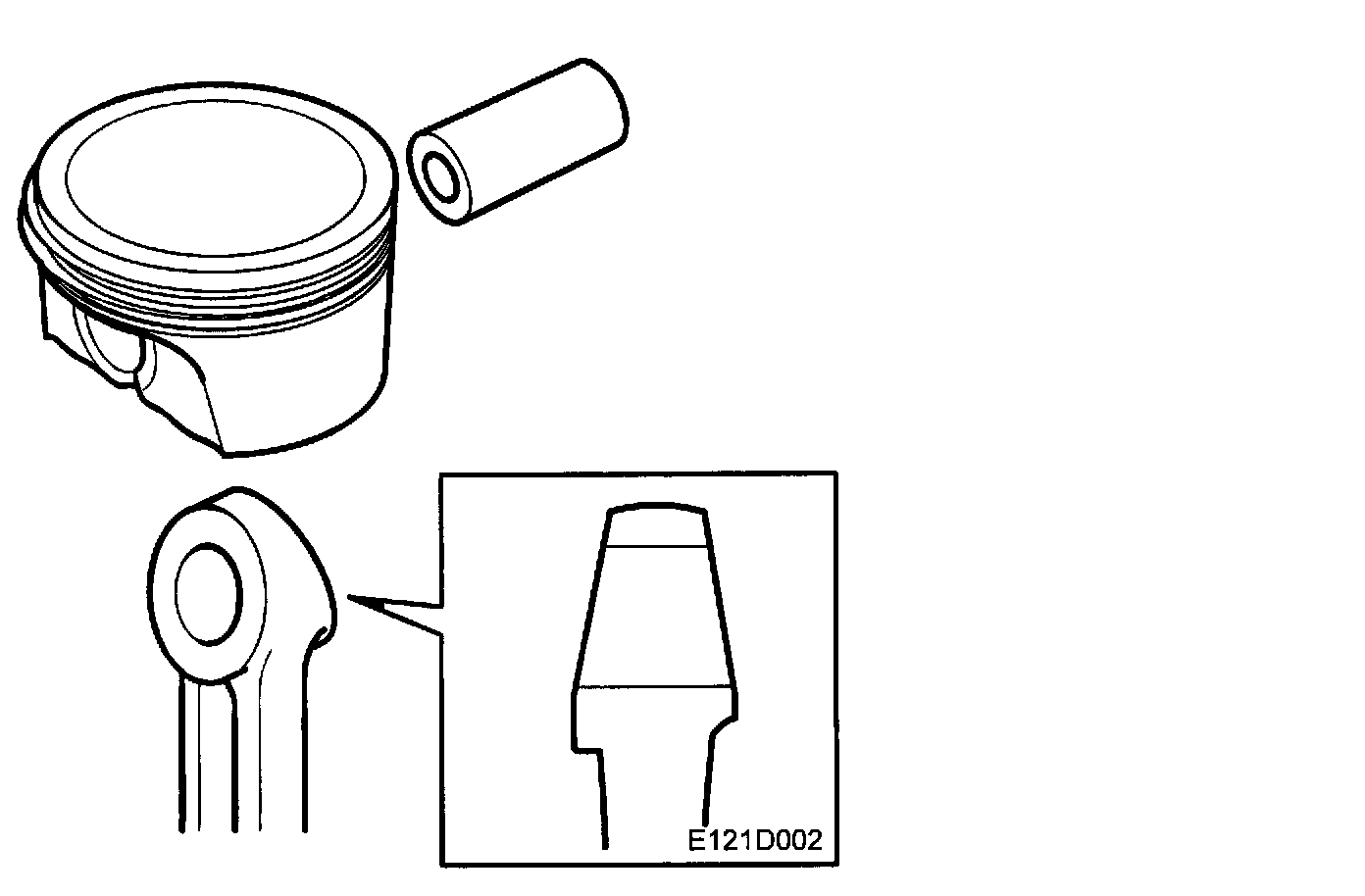

Component Illustration:

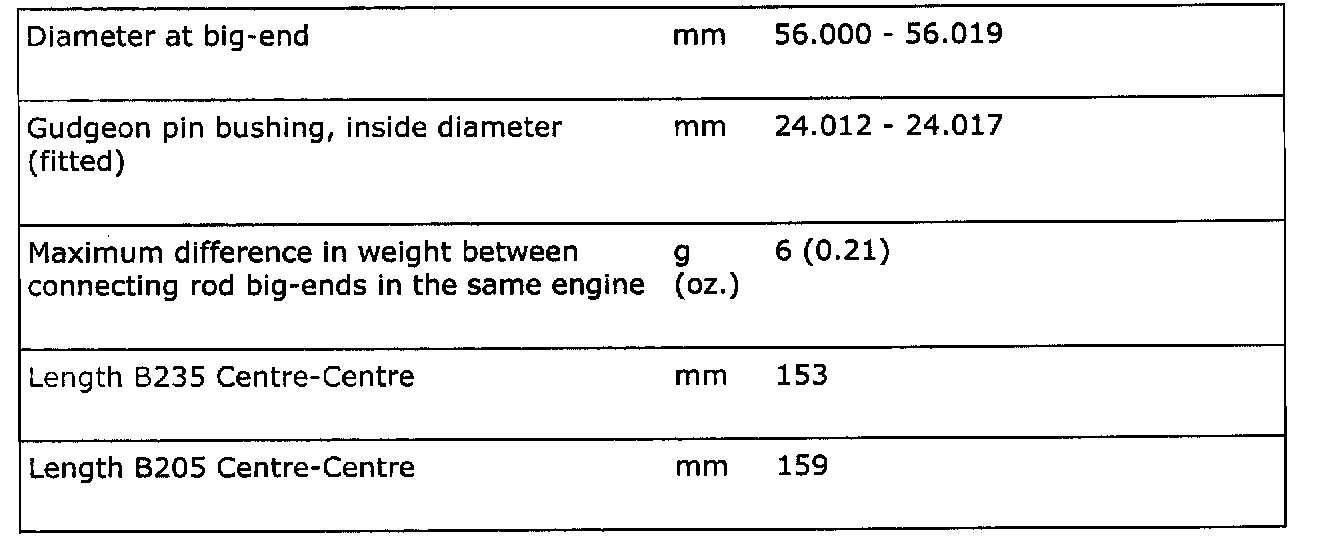

Specifications Table:
