Overhaul Specifications

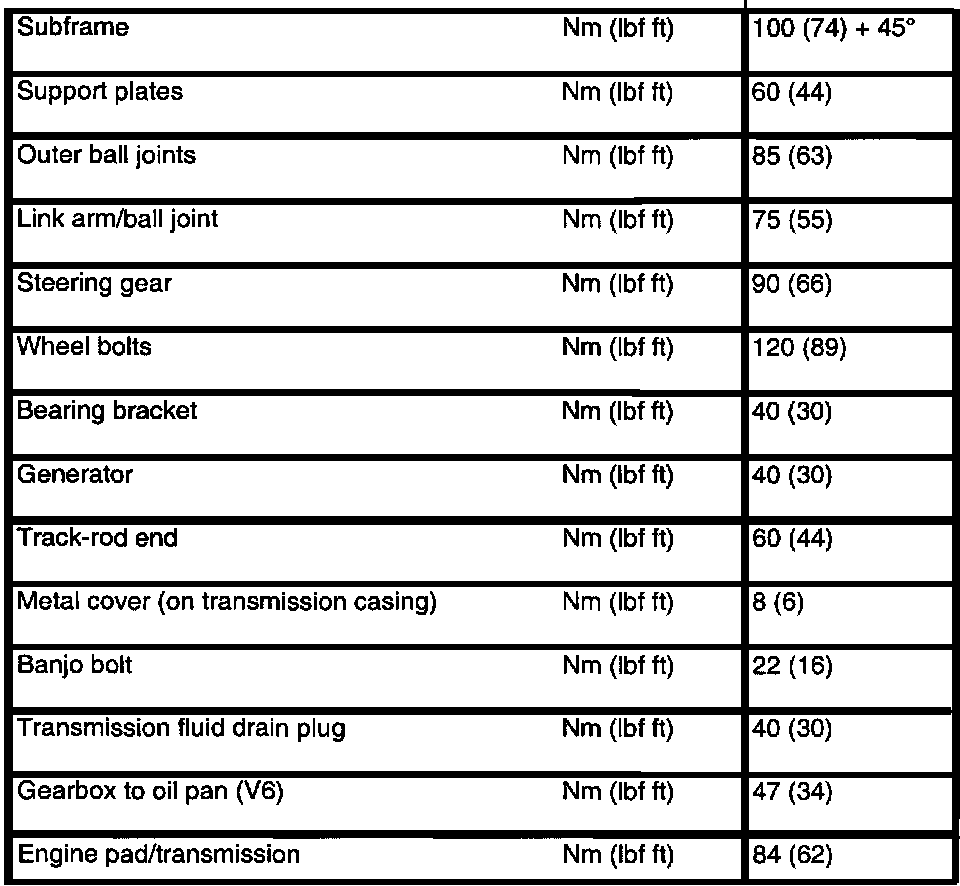

AF 30 4-spd A/T Torque Data:

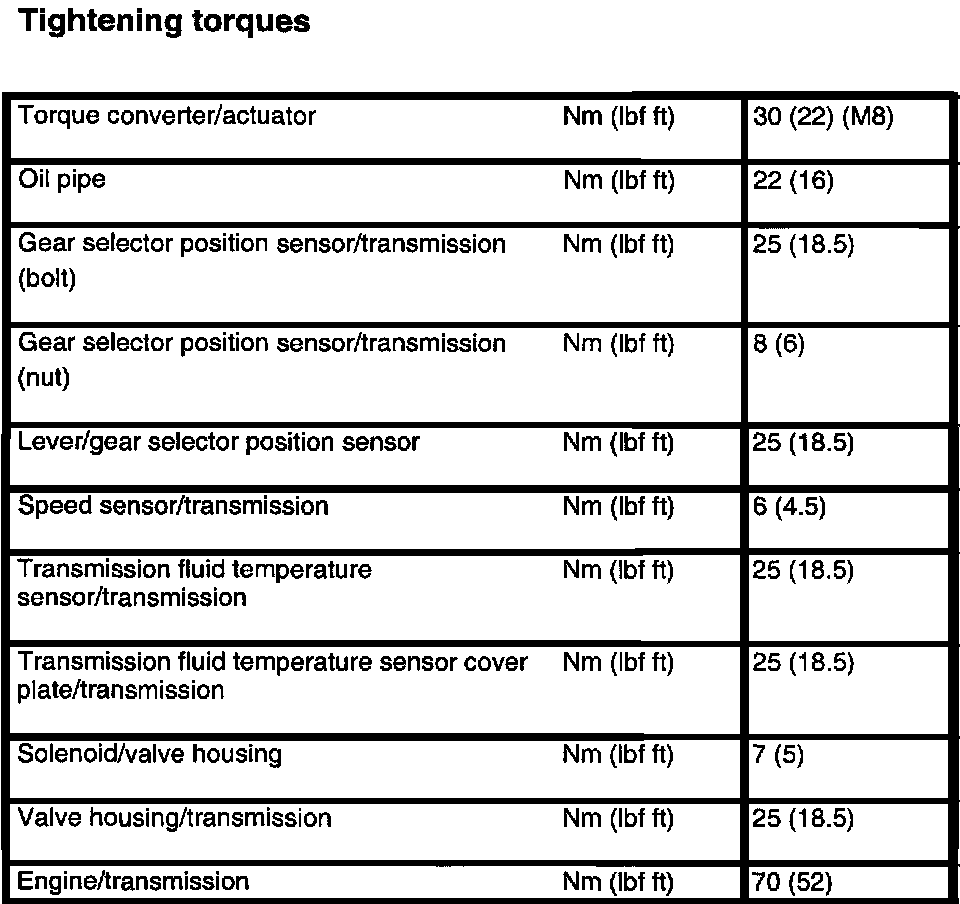

AF 30 4-spd A/T Torque Cont.:

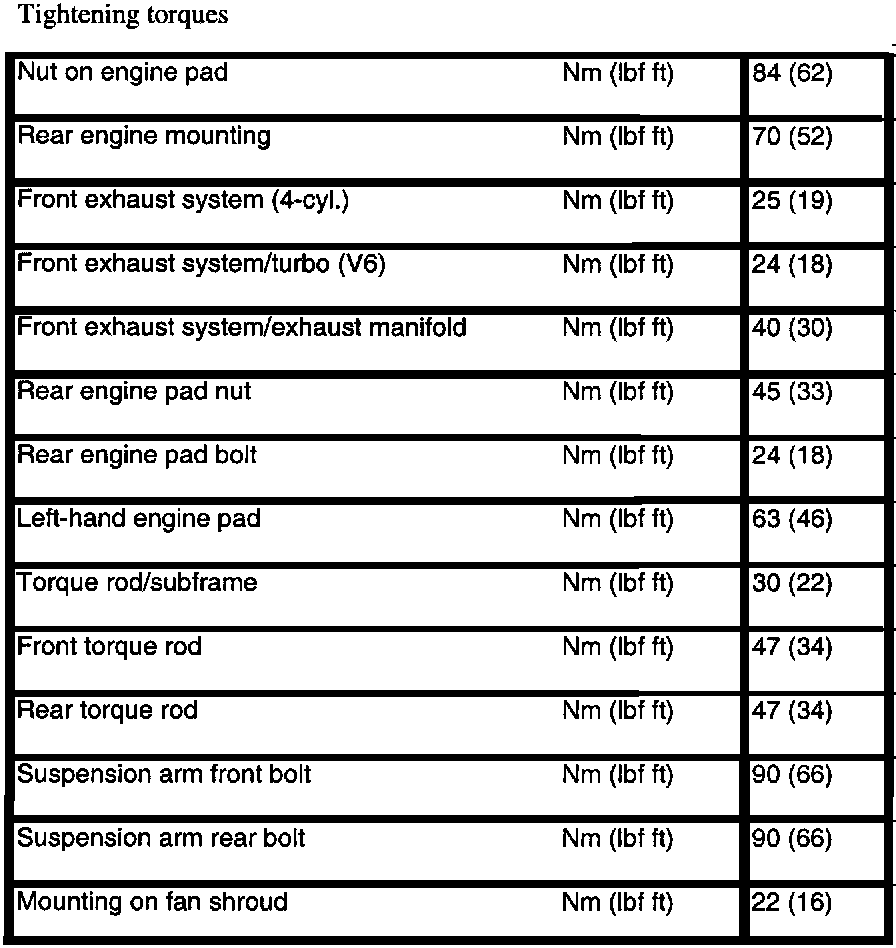

AF 30 4-spd A/T Torque Cont.:
