Test Readings, Control Module Connections




Test Readings, Control Module Connections

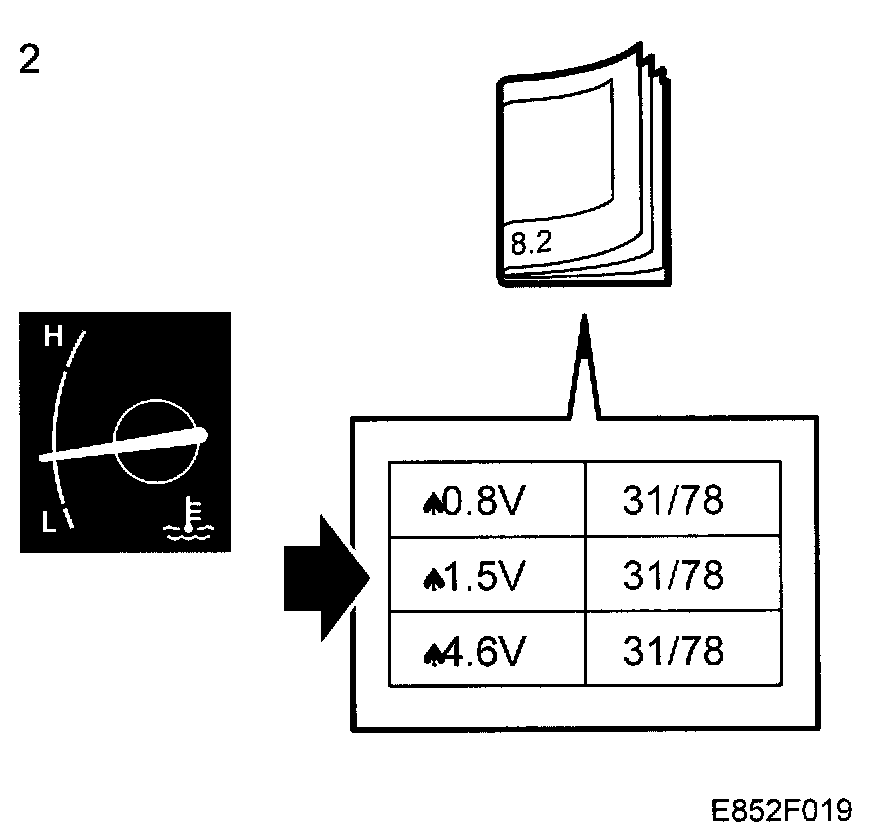

The following information contain instructions and readings for testing the control module.

Remember:
- Note the test condition, and use common sense when assessing the test result.
- The specified test readings are with the ignition ON, unless otherwise stated.
- Check these points:
- First check that the control module is supplied with current and is grounded.
- Then check all sensor inputs and signals from other systems.
- Finally, check the control module outputs. Remember that the test readings do not indicate whether the actuator is working.
- If any reading is not OK, consult the wiring diagram to trace the leads, connectors or components which should be checked more thoroughly.

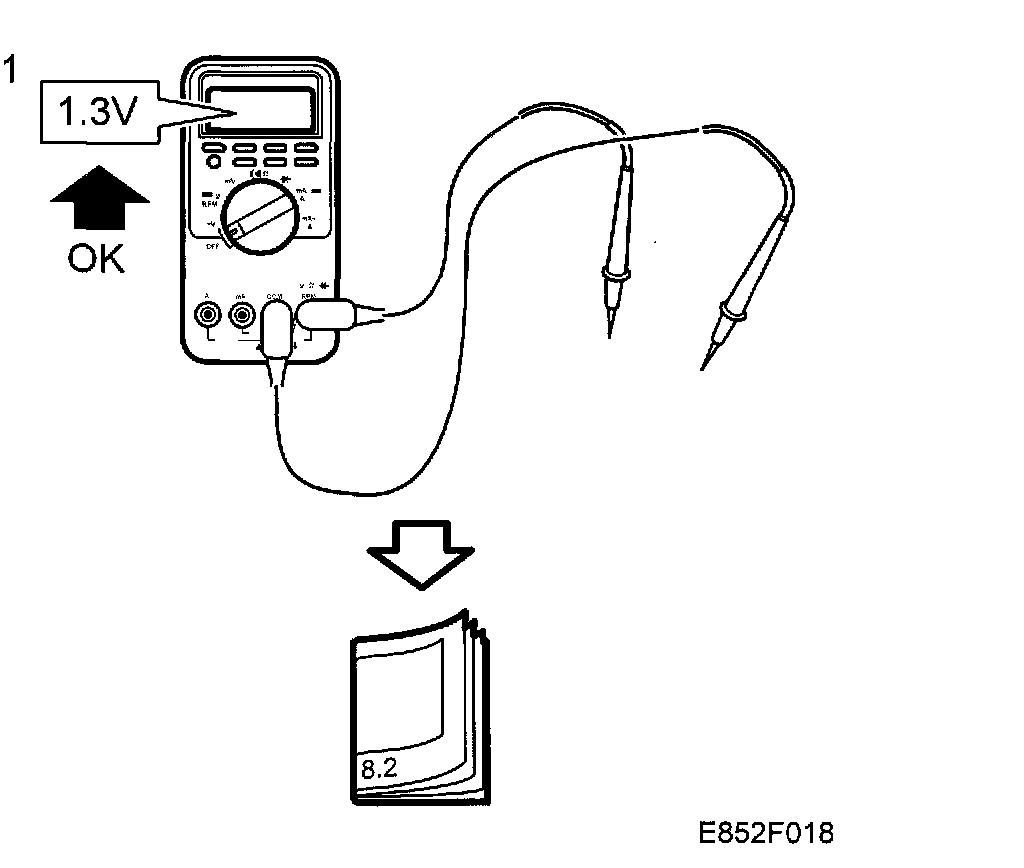

- The test readings given apply to a calibrated Fluke 88/97.
- The test readings show the signal pulse condition or pulse length. A test instrument with pulse rate or width measurement must be used.

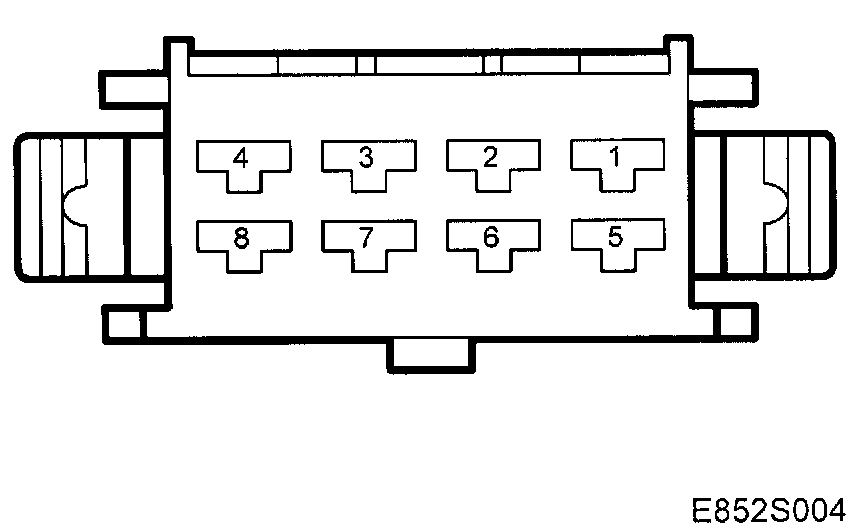

Connector 1 (K1), test readings







Pin Nos. 1 - 8:

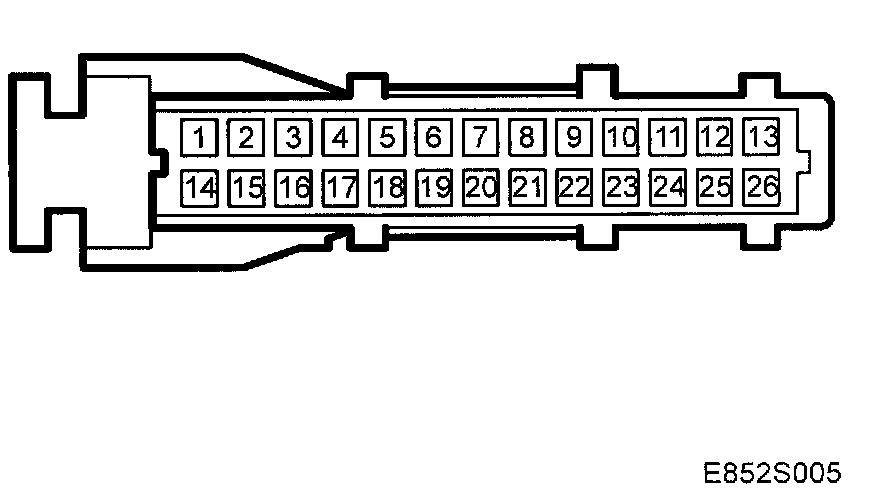

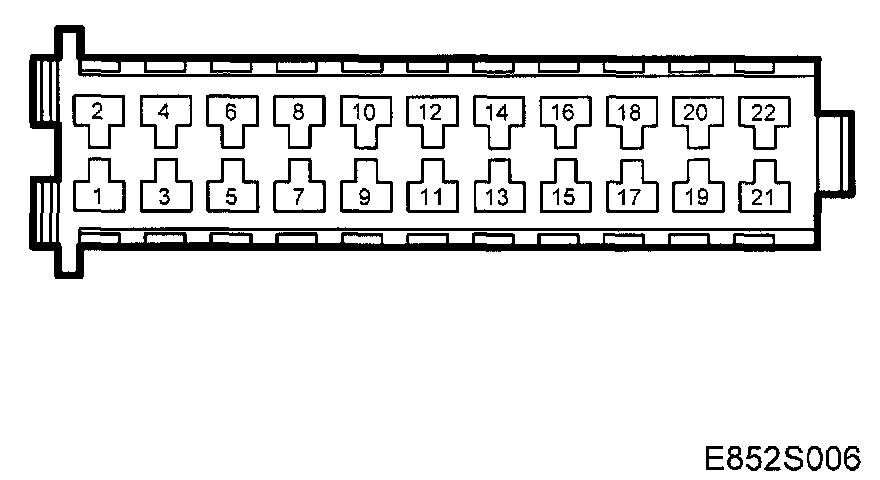

Connector 2 (K2), test readings







Pin Nos. 1 - 17:

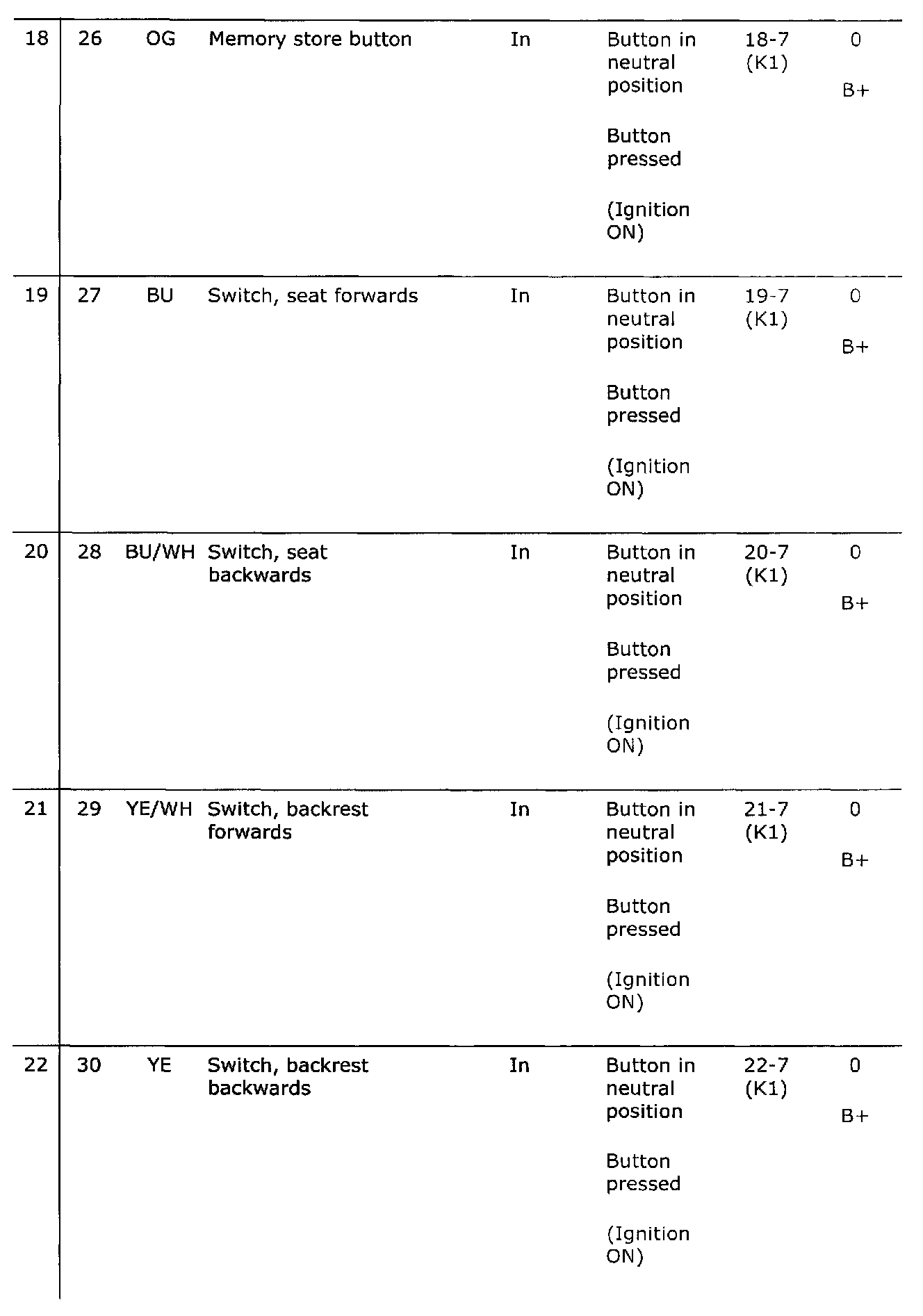

Pin Nos. 18 - 22:






Pin Nos. 23 - 26:






Connector 3 (K3), test readings

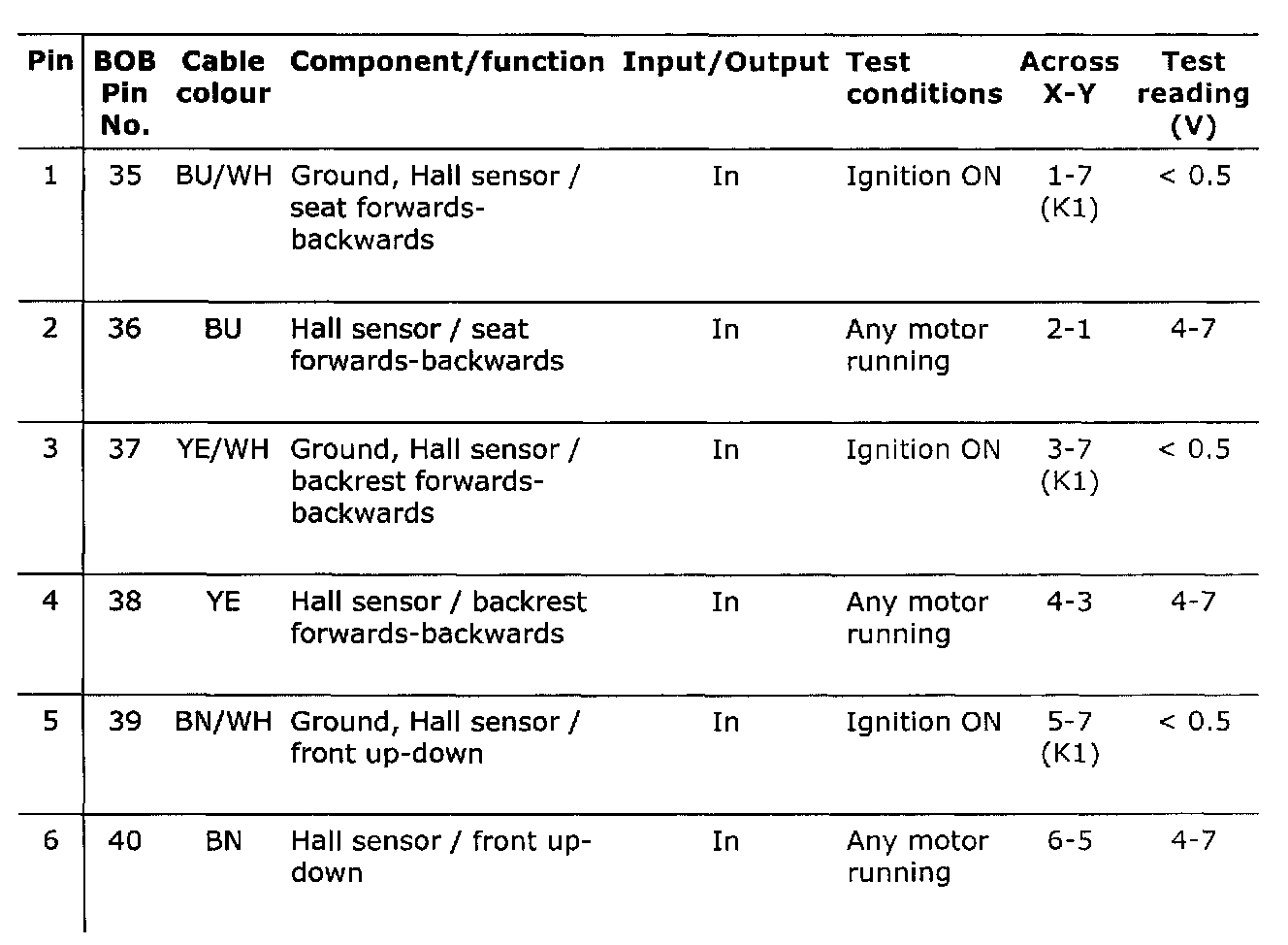

Pin Nos. 1 - 6:

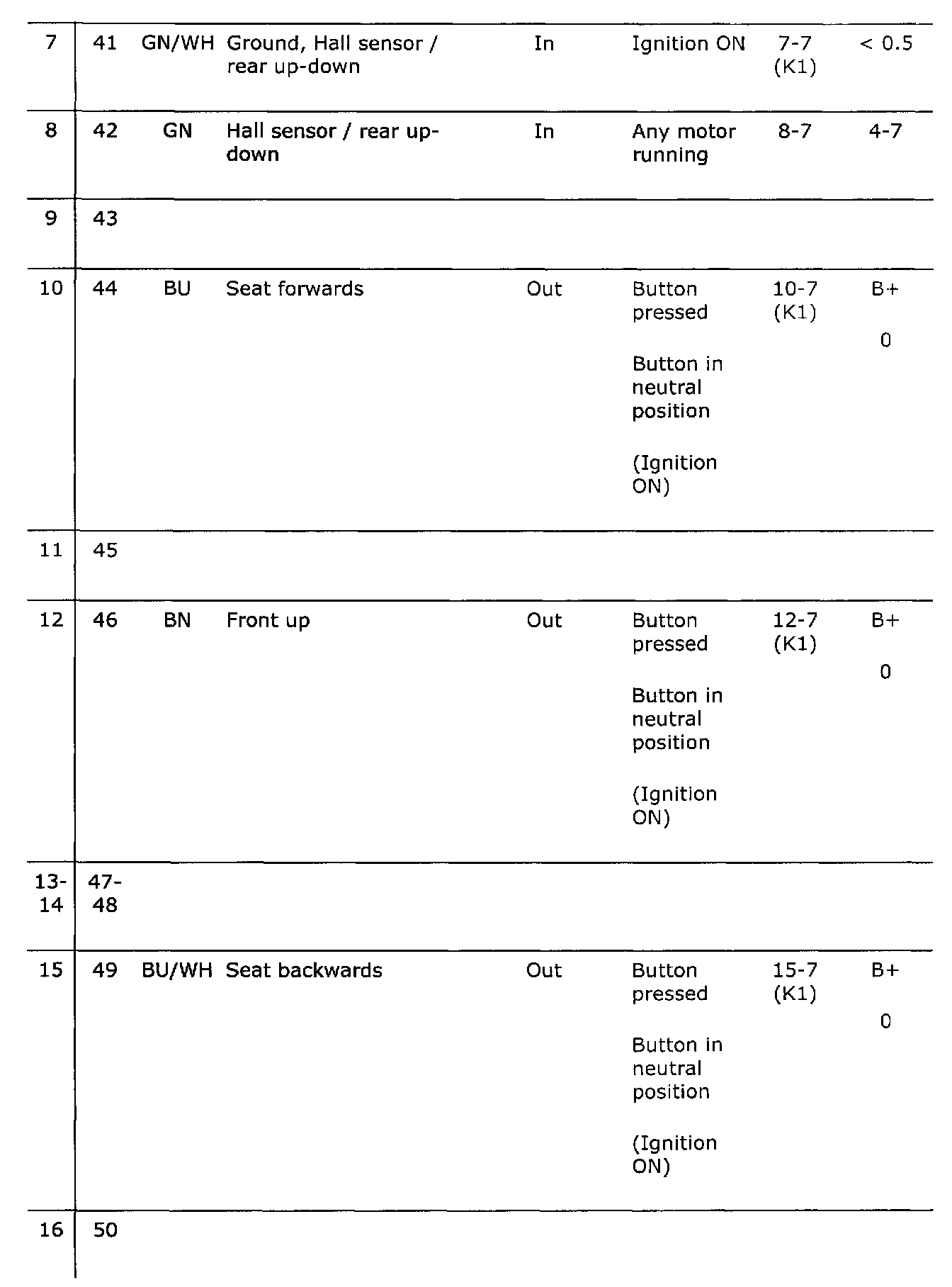

Pin Nos. 7 - 16:

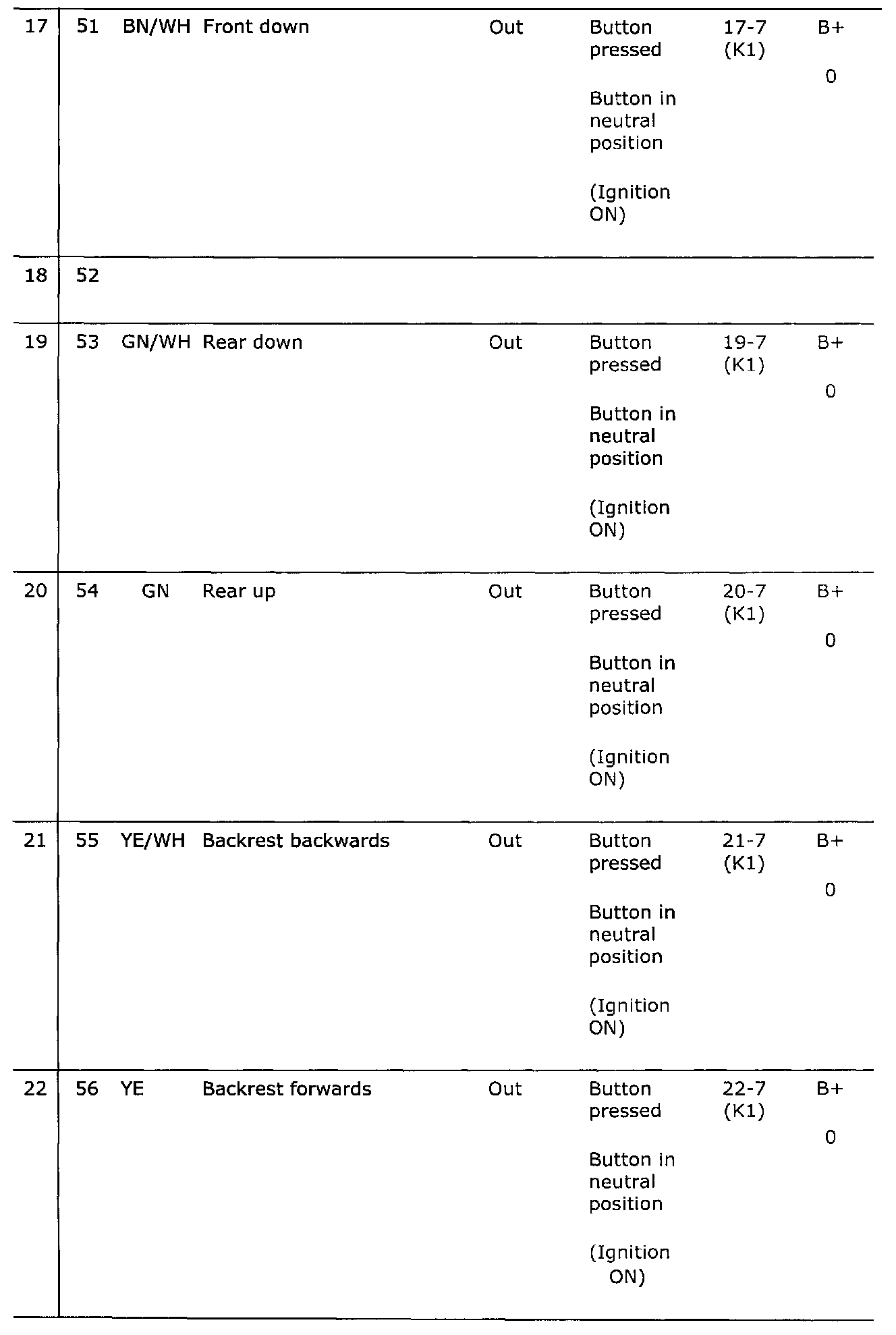

Pin Nos. 17 - 22:
